DF12 - DF13

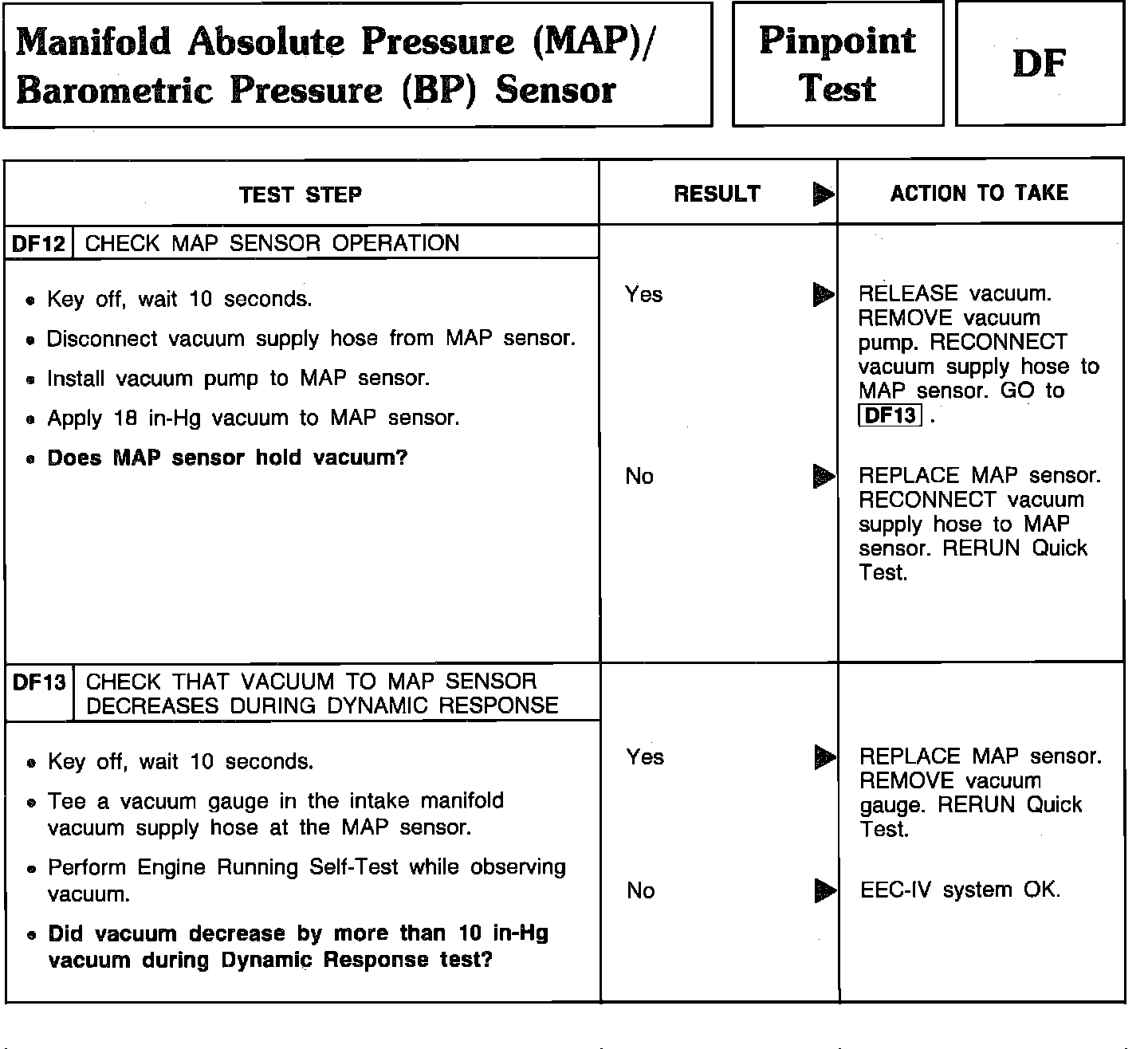

Pinpoint Test DF12 & DF13 - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
