DF1 - DF2

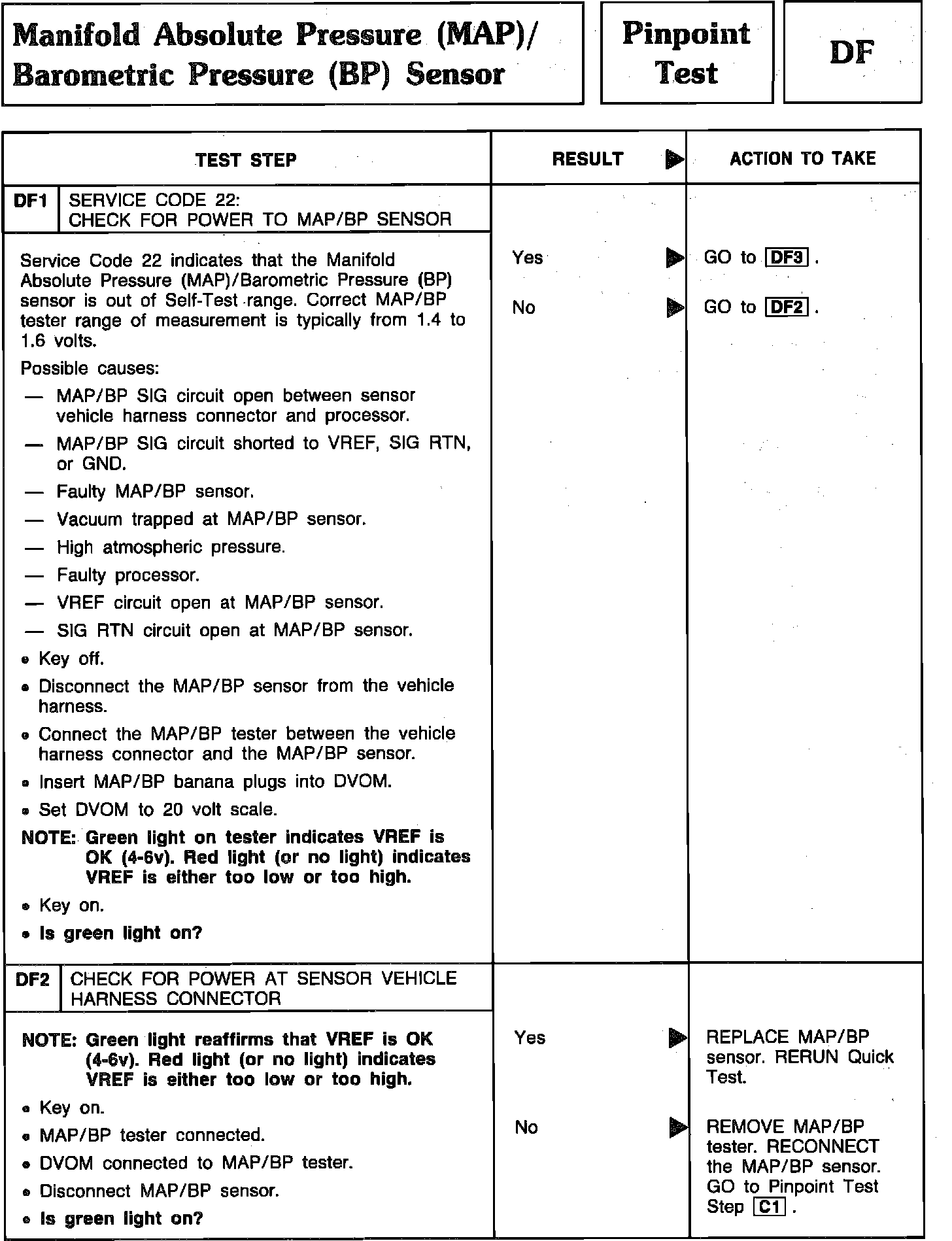

Pinpoint Test DF1 & DF2 - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
