DD - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV)
>>
DD - Wiring Diagram
DD - Wiring Diagram

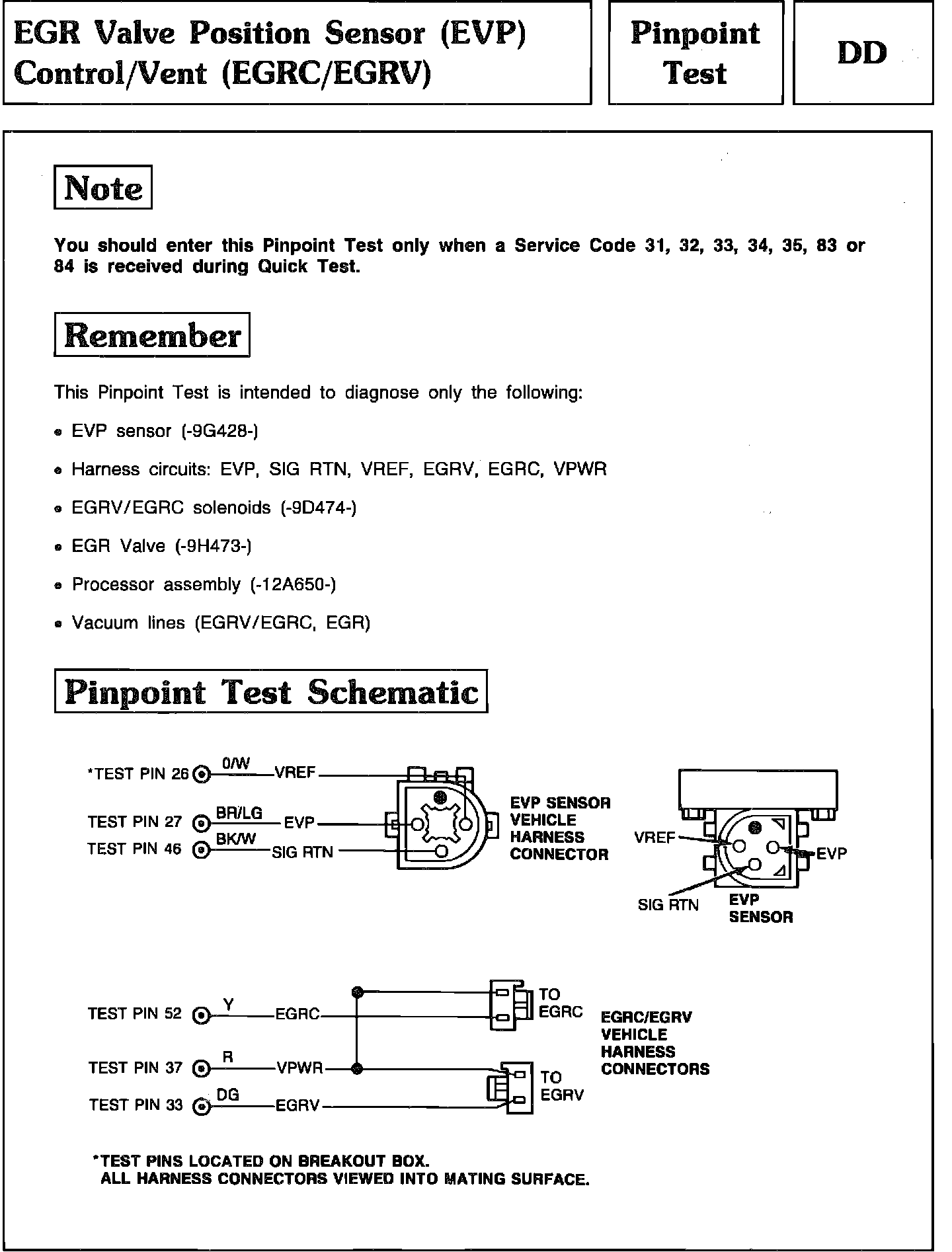

Pinpoint Test DD - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV):
