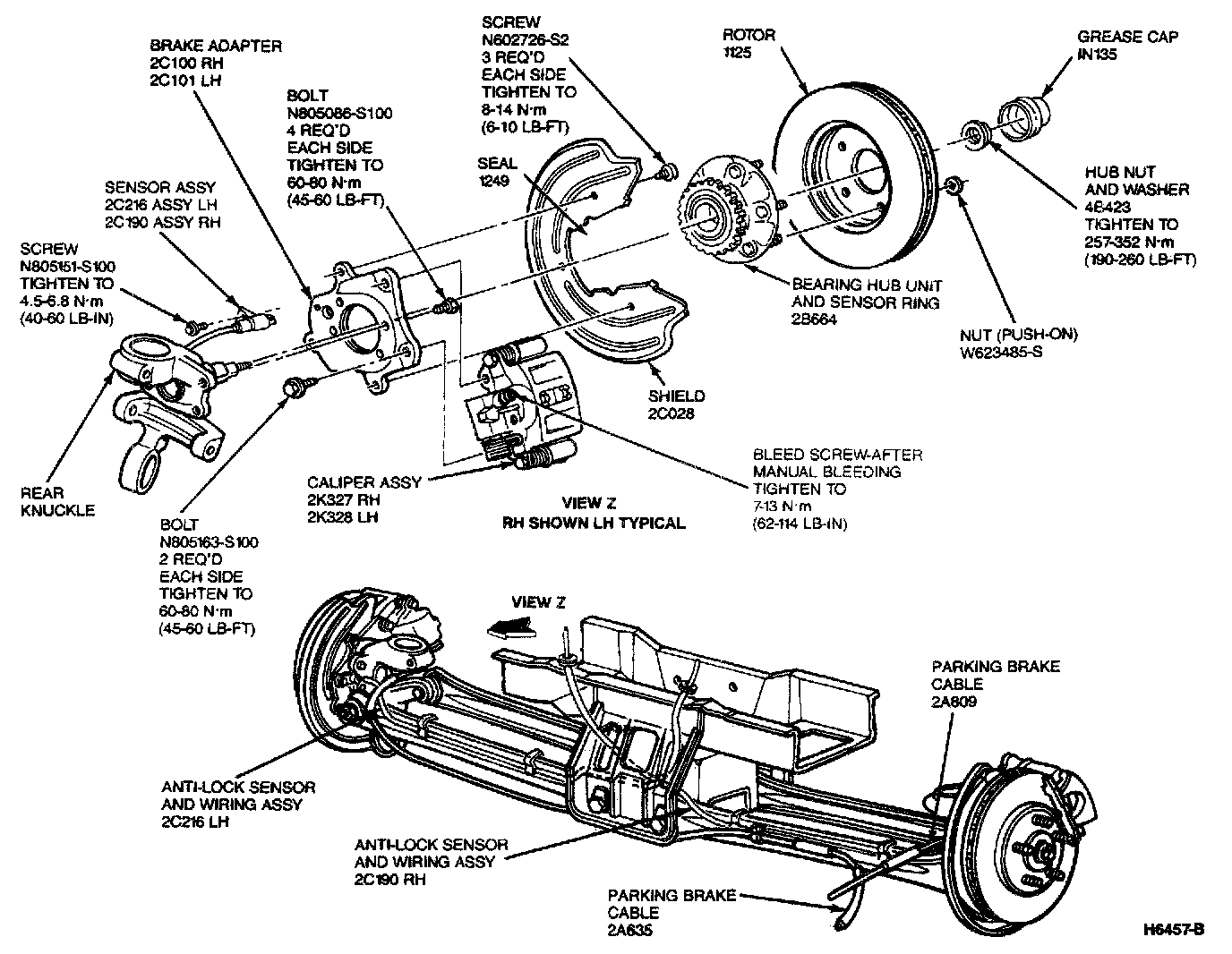

Rear - With Disc Brakes

Wheel Assembly

ABS Disc Brakes:

Each rear wheel is bolted to a bearing and hub assembly.
The bearing and hub assembly is lubricated for life and has integral seals.

A nut and washer assembly retains the bearing and hub assembly to the spindle.

Additional information may be found under Wheel Bearing. Wheel Bearing
