Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Locations >> Component Locations >> Full Body Views >> Station Wagon

Station Wagon

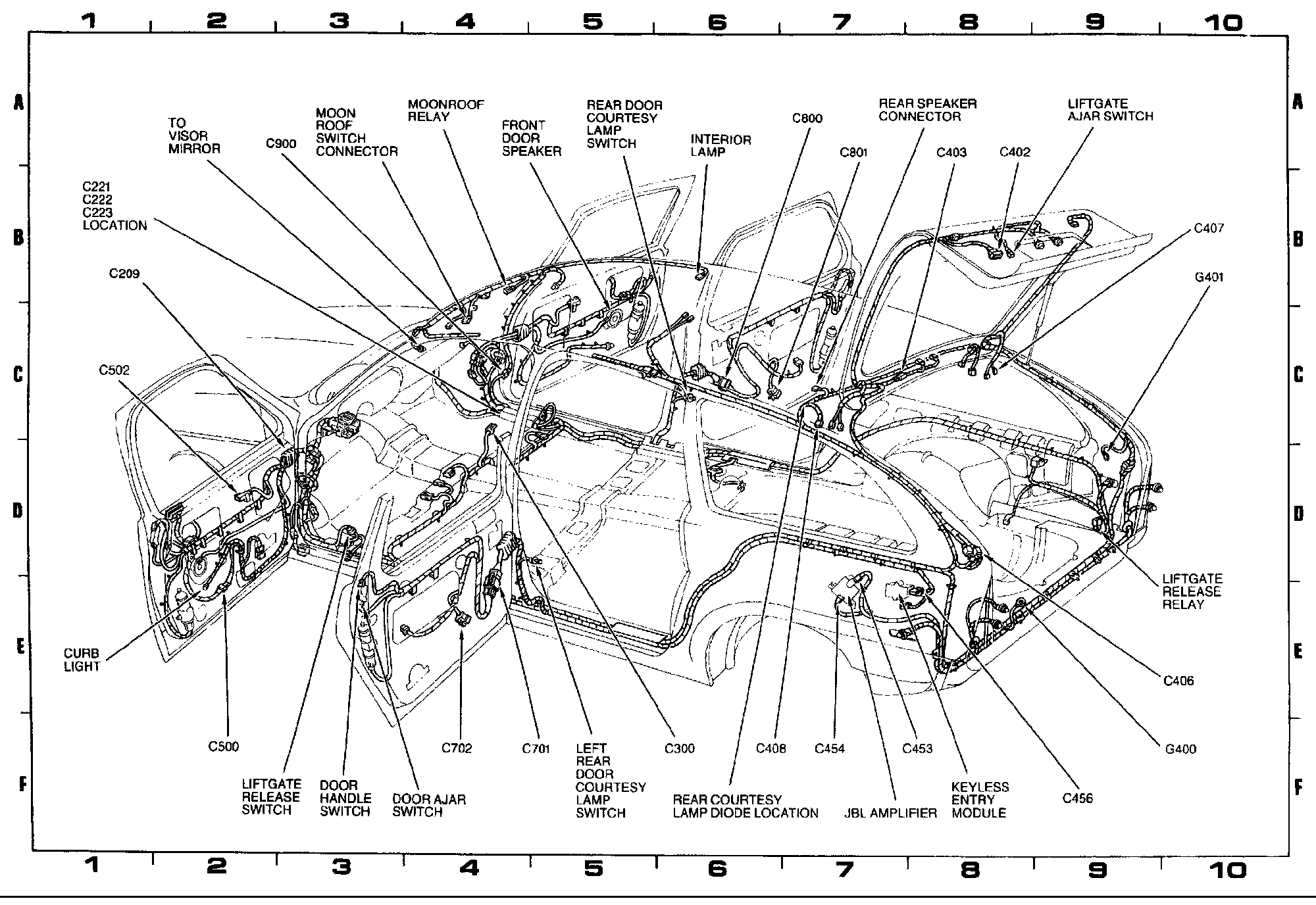

View 151-11 (Full Body View):

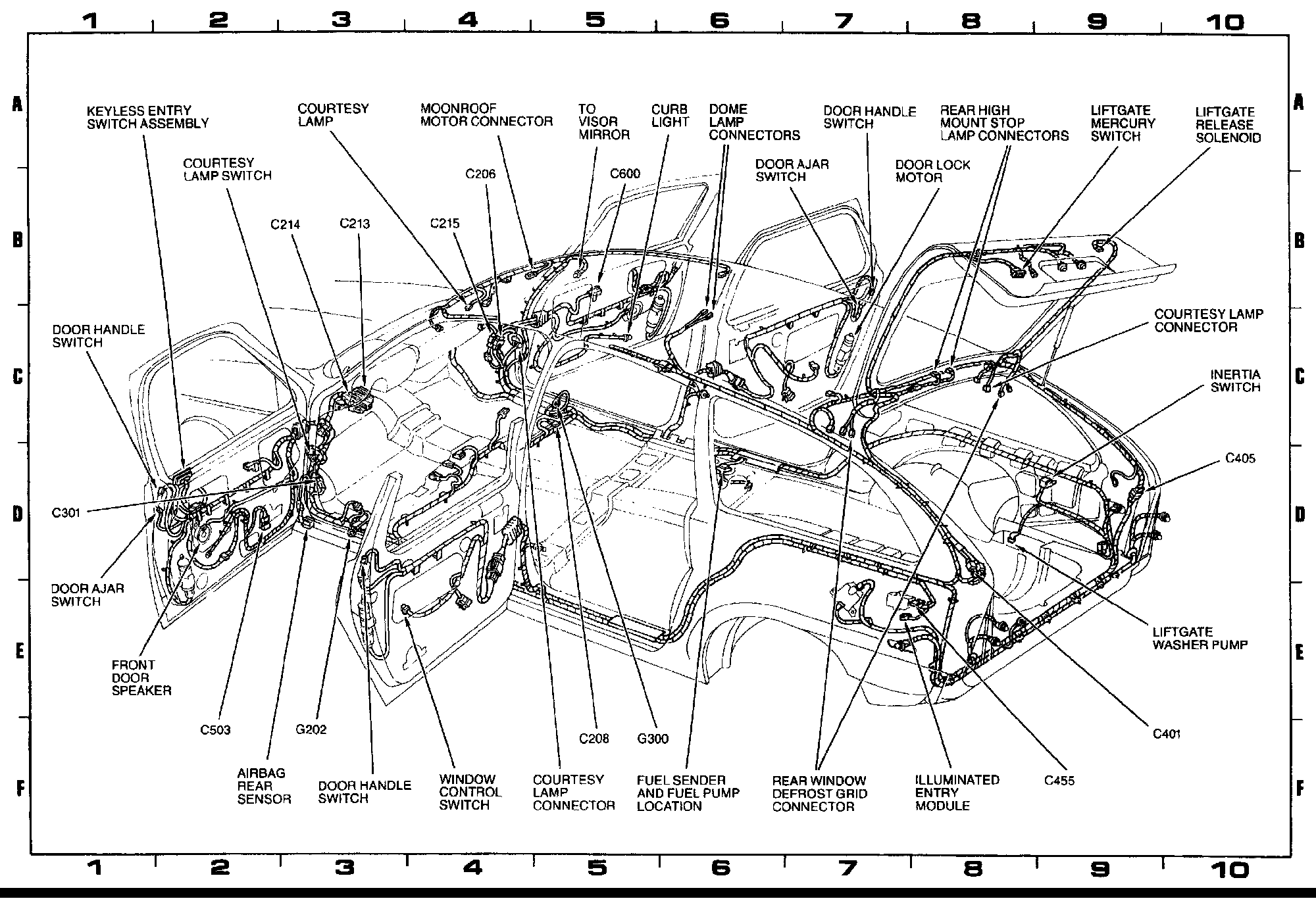

View 151-12 (Full Body View):
