Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Instrument Panel Illumination >> Part 3 of 3 >> With Autolamps

With Autolamps

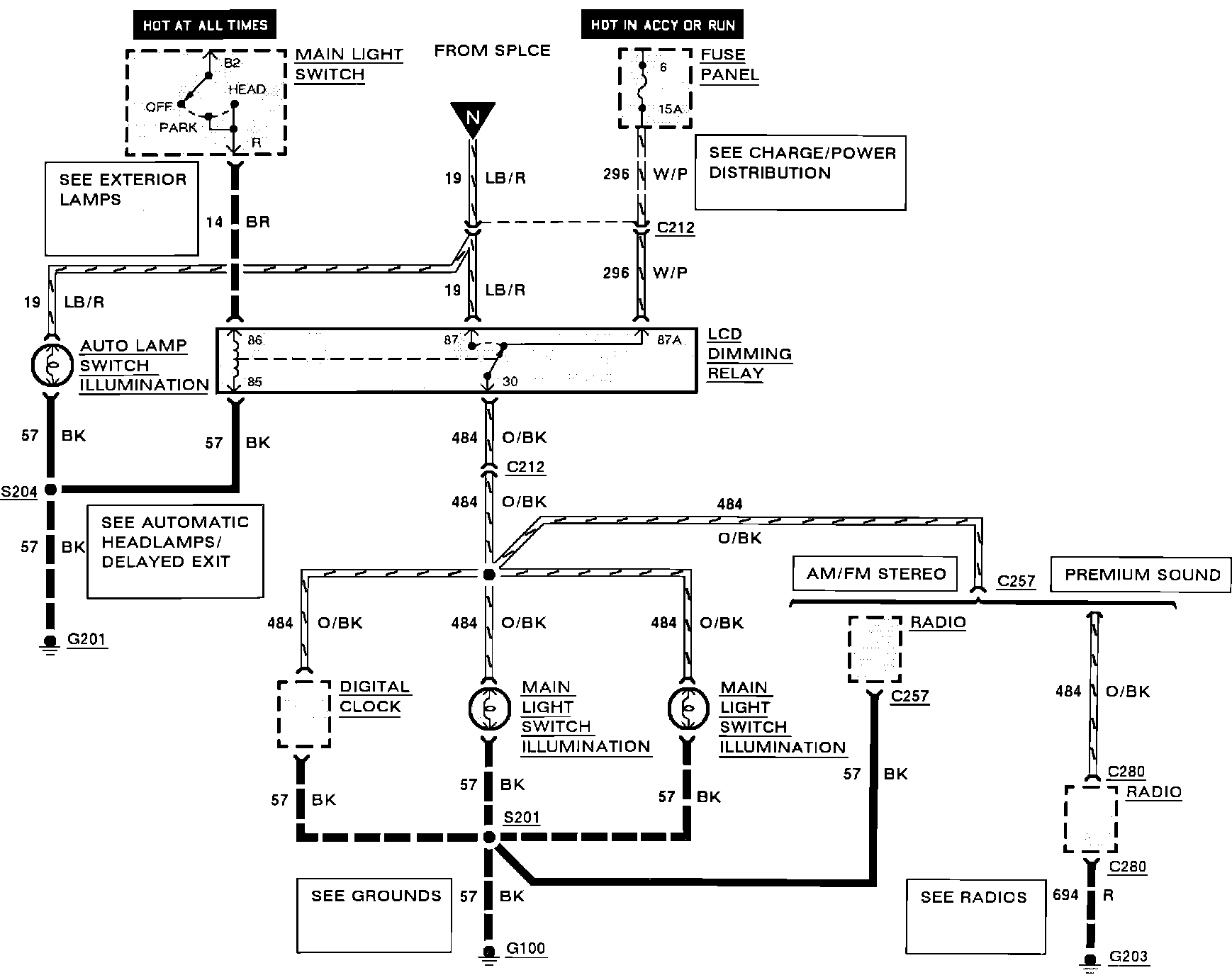

Instrument Panel Illumination With Autolamps:
