Oil Pressure Warning Lamp/Indicator: Testing and Inspection

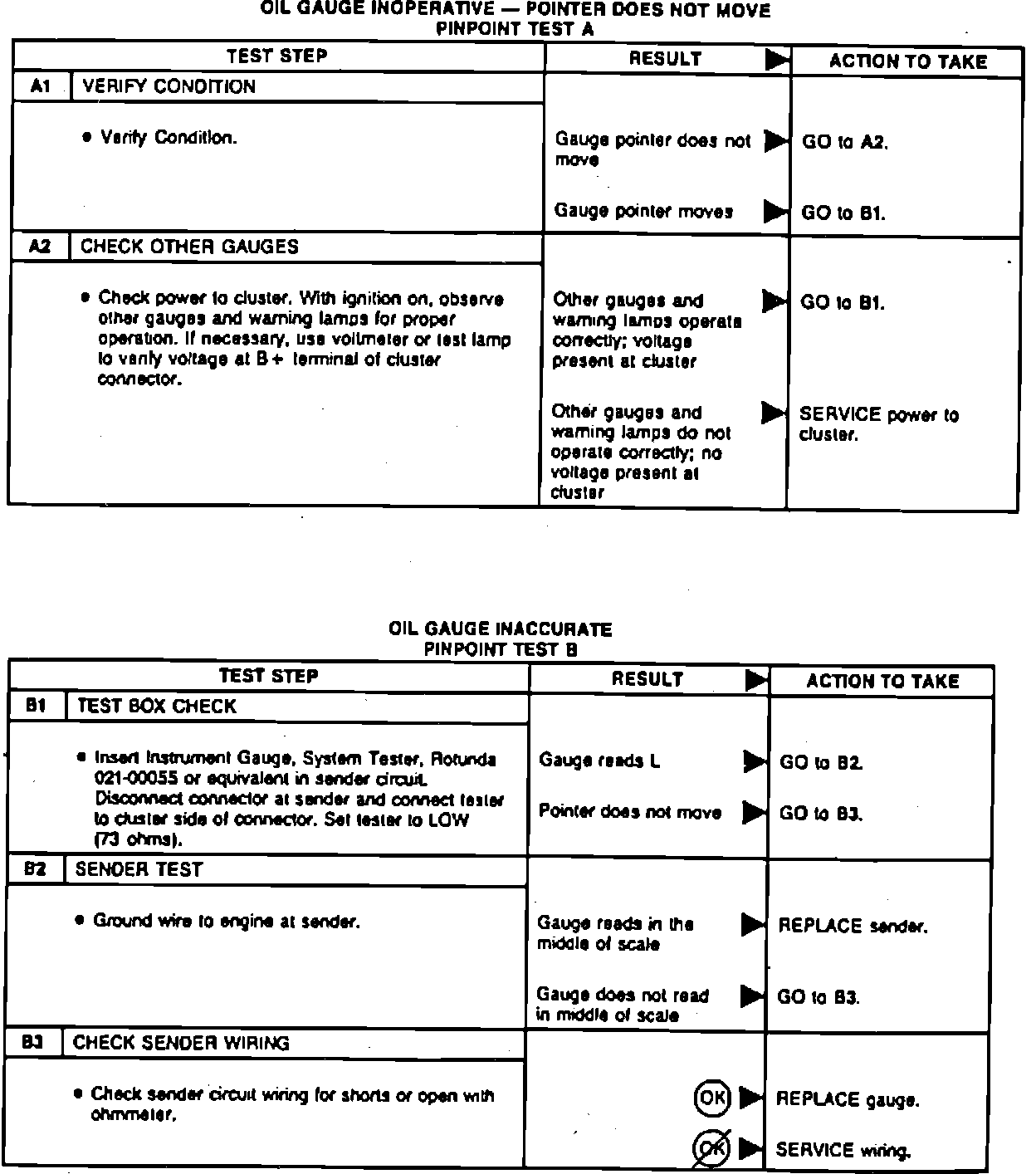

Fig. 8 Gauge Type Oil Pressure Indicator Diagnosis:
