Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Electronic Climate Control

Electronic Climate Control

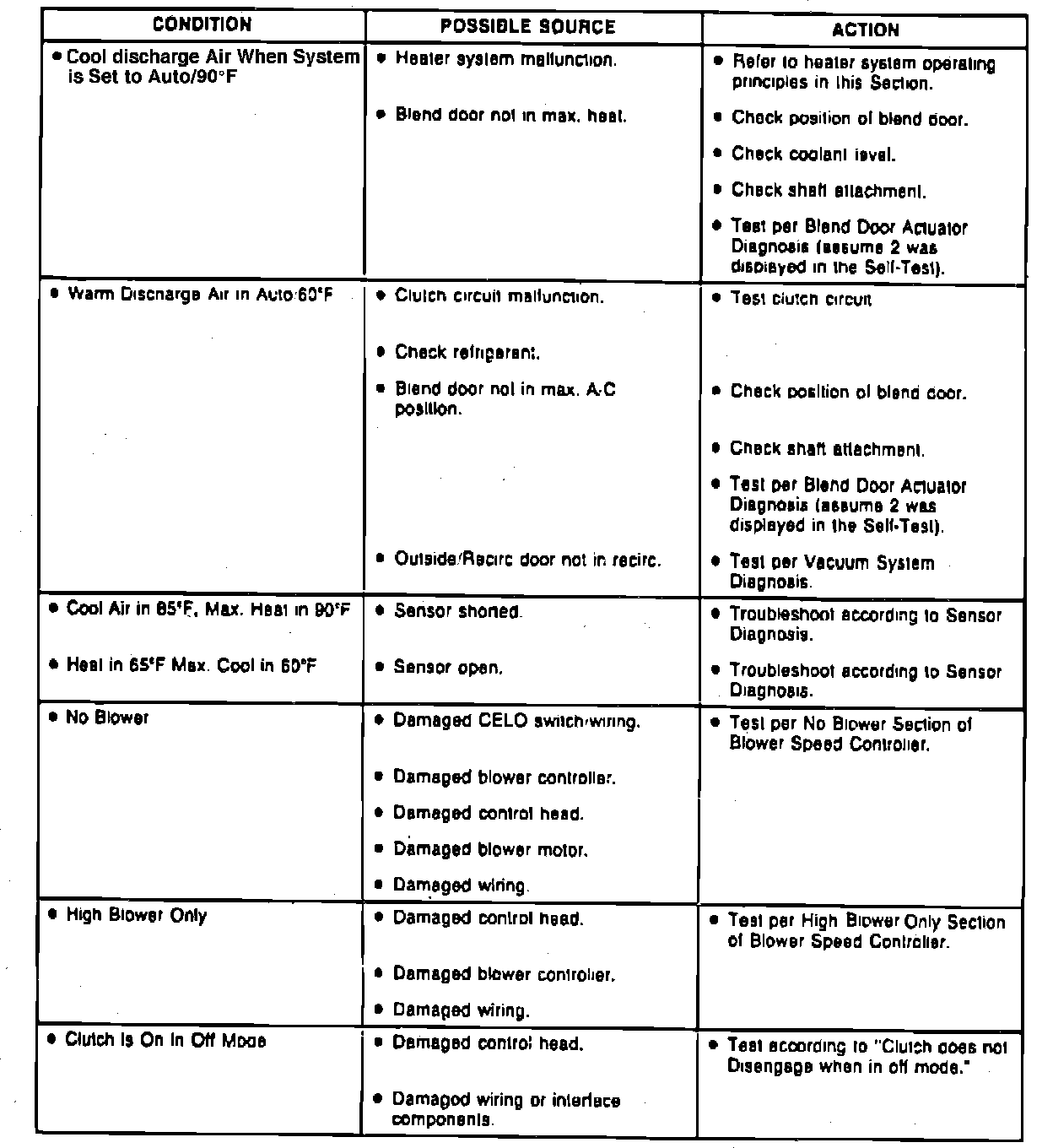

Fig. 5 Diagnosis, No Error Codes Indicated:

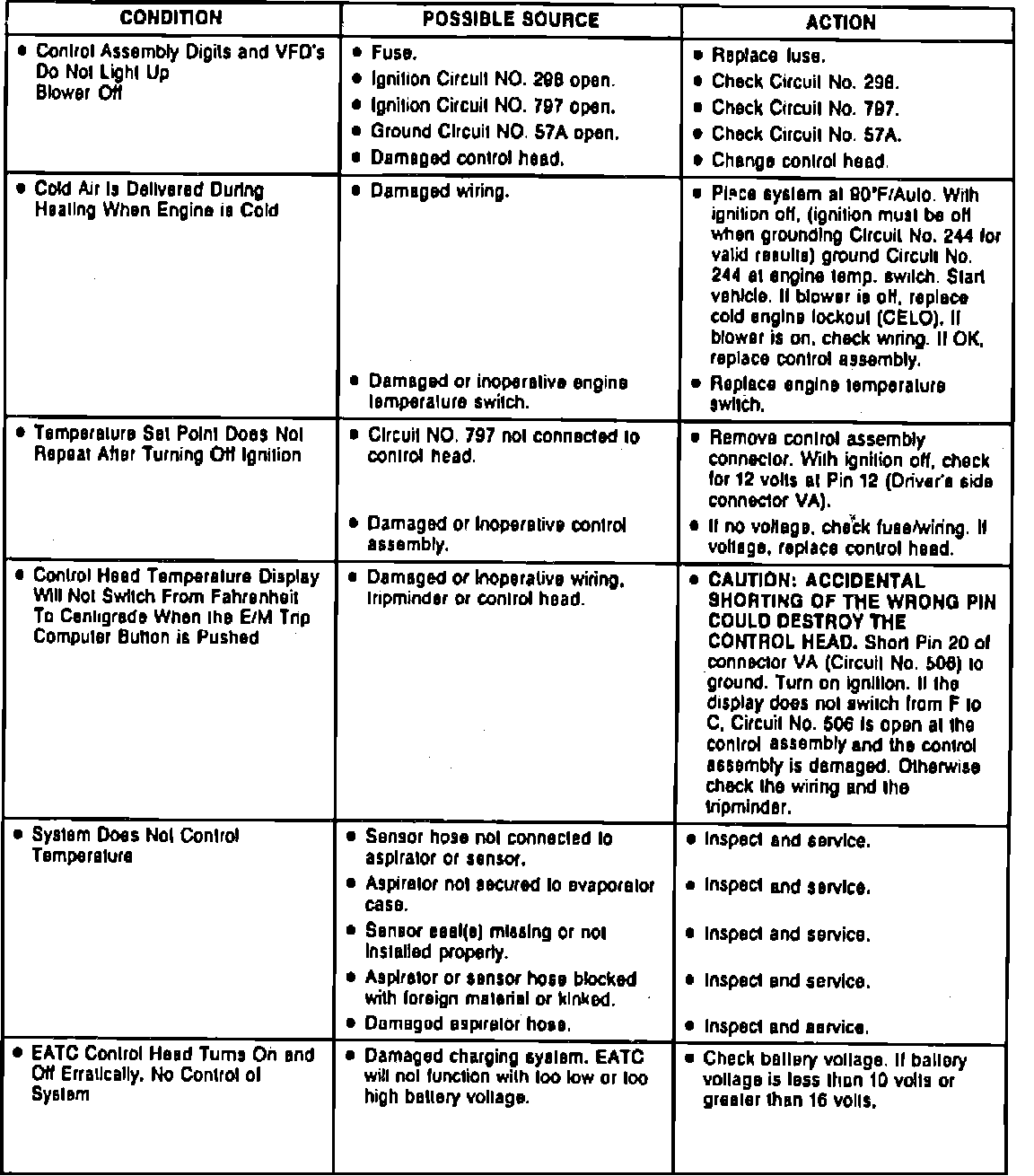

Fig. 5 Diagnosis, No Error Codes Indicated:
