Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Non-Trouble Code Procedures
>>
Insufficient Cooling Diagnosis
>>
A10: Check System
A10: Check System

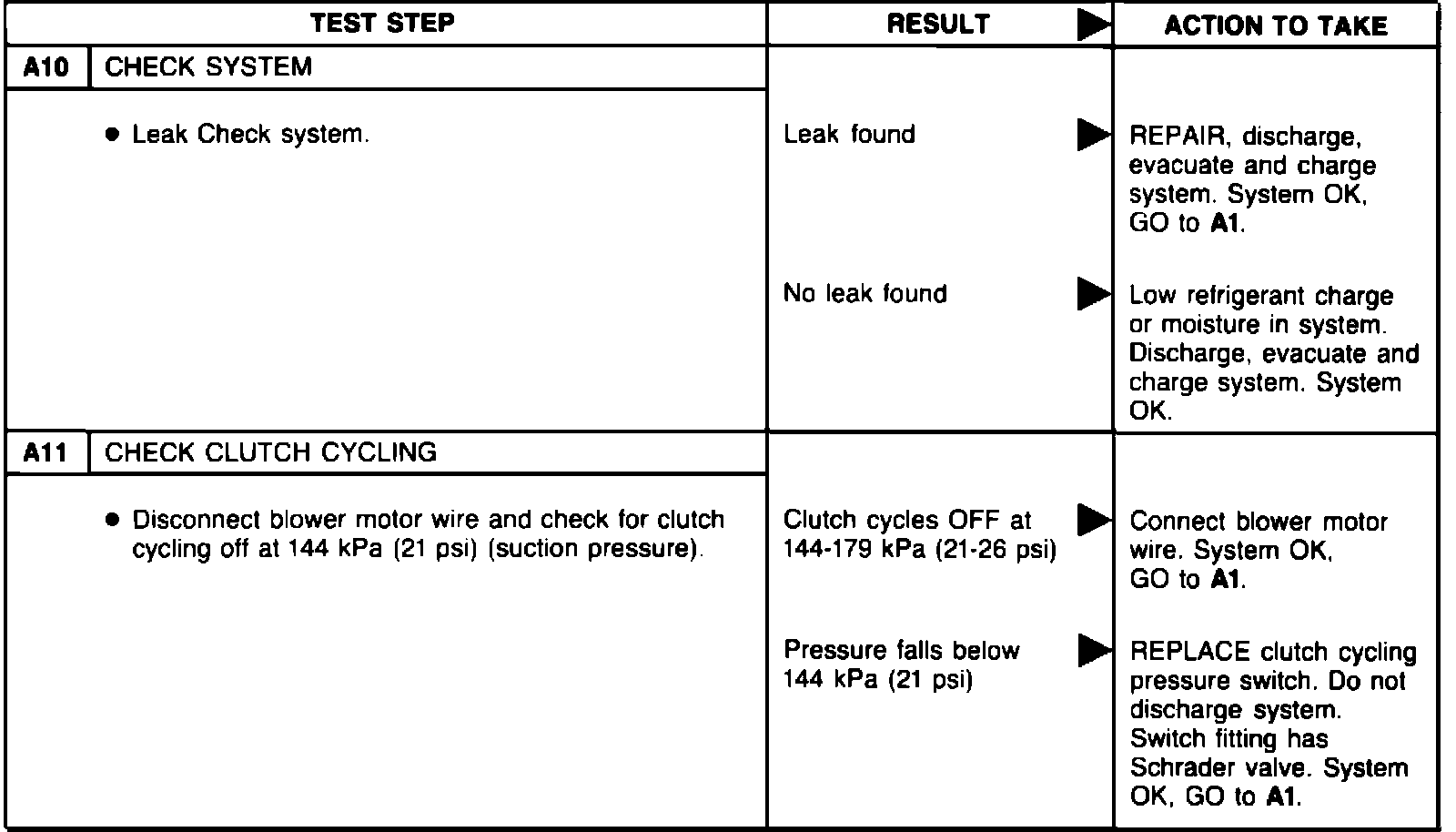

Fig. 1 Insufficient A/C cooling diagnosis (Part 3 of 3).:
