Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Electronic Climate Control >> Part 2 of 3

Part 2 of 3

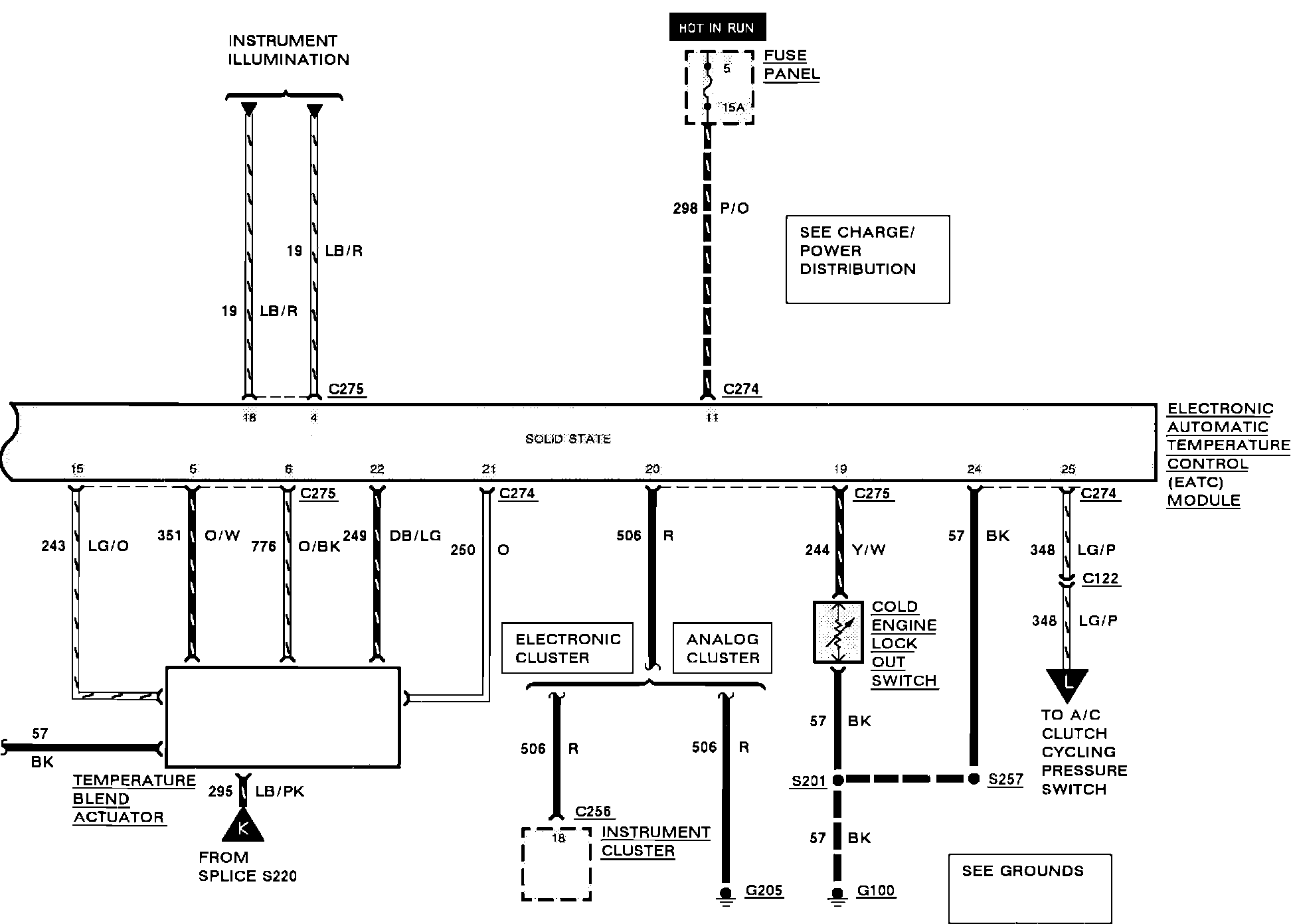

Automatic Temperature Control:
