LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Compressor Clutch
>>
Testing and Inspection
>>
Pinpoint Tests
>>
W/ MTC
>>
B7 - B11
B7 - B11

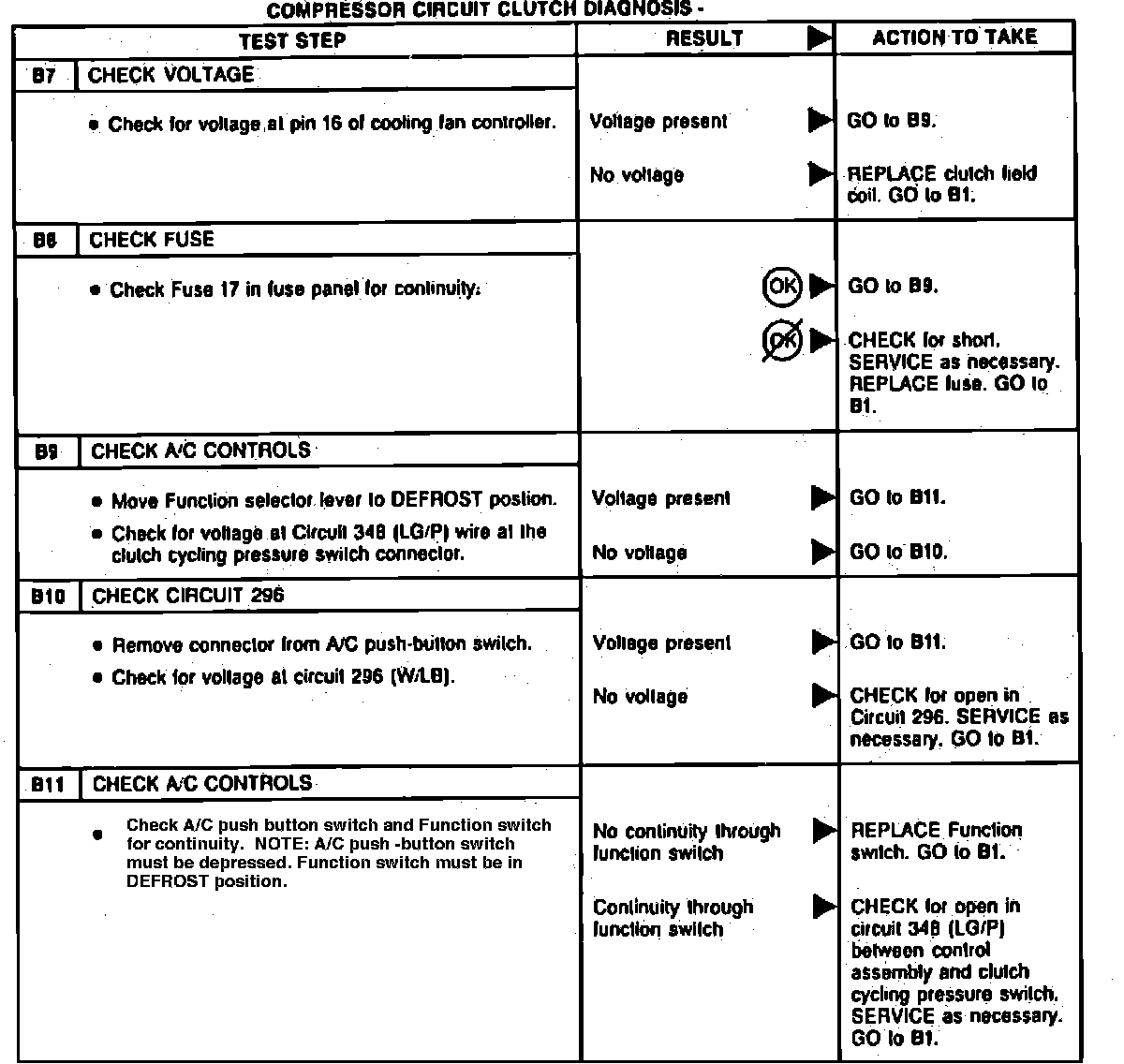

Compressor clutch diagnosis (Tests B7 - B11):
