W/Manual Transmission

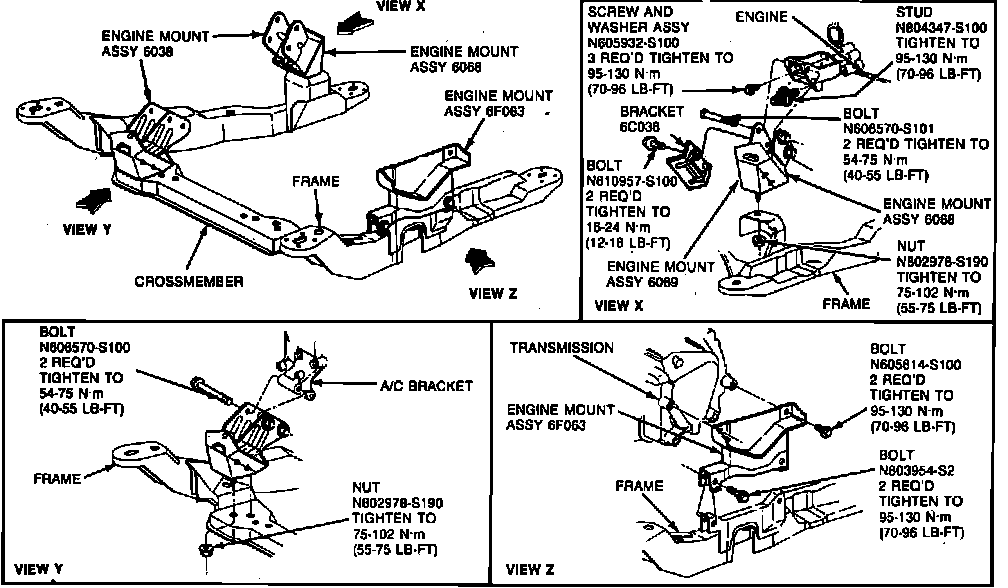

Fig. 3 Engine Mounts. Models w/Man. Trans.:

LH INSULATOR & SUPPORT ASSEMBLY

1. Raise and support vehicle, then remove left front wheel and tire assembly.
2. Support transmission with suitable jack and block of wood positioned near insulator.
3. Remove insulator to frame attaching bolts, Fig. 3, then using jack, raise transmission enough to unload insulator.
4. Remove insulator to transmission attaching bolts, then the mount.
5. Reverse procedure to install.

RH FRONT OR REAR INSULATOR

1. Remove lower damper nut from right side of engine.
2. Raise and support vehicle, then support engine with suitable jack and block of wood positioned near insulator.
3. Remove insulator to frame attaching nut, Fig. 3, then raise engine enough to unload insulator.
4. Remove insulator to engine bracket attaching bolts, then the insulator.
5. Reverse procedure to install.
