Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Ground Distribution >> G202 >> With Power Locks & Windows

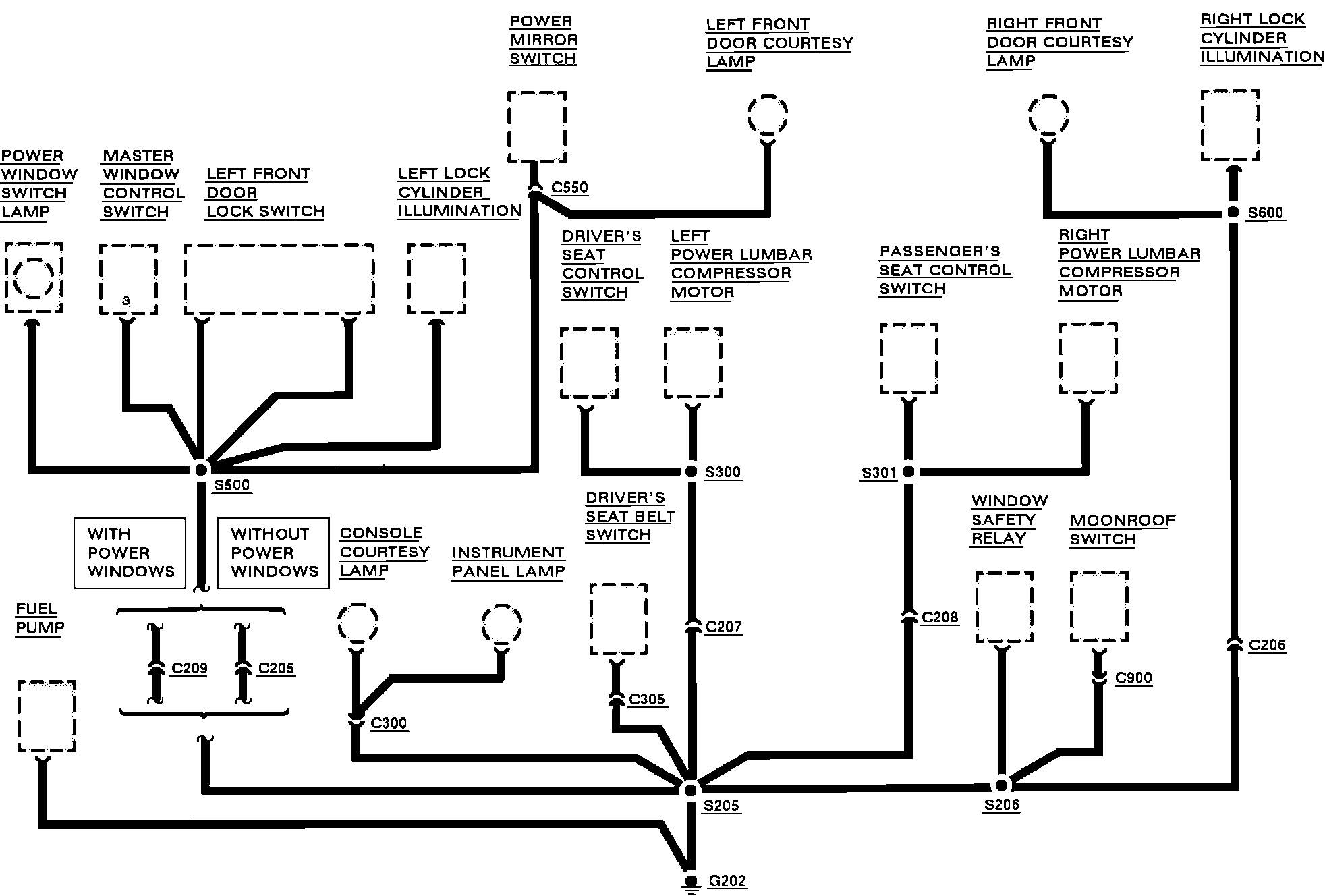

With Power Locks & Windows

With Power Locks & Windows:
