Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Charging System
>>

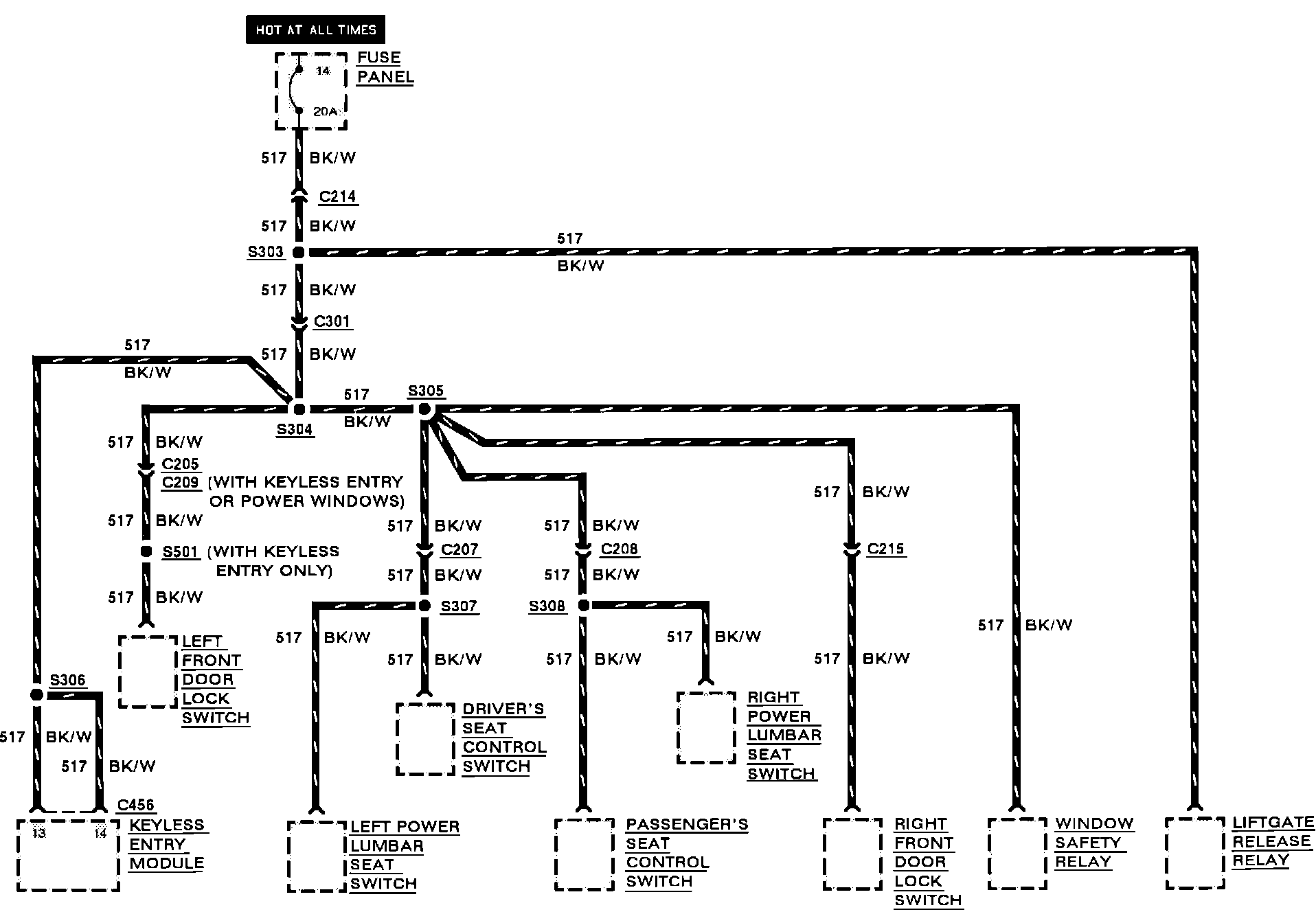

Circuit Breaker 14
Circuit Breaker 14
Circuit Breaker 14:
