Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination >> Part 2 of 3

Part 2 of 3

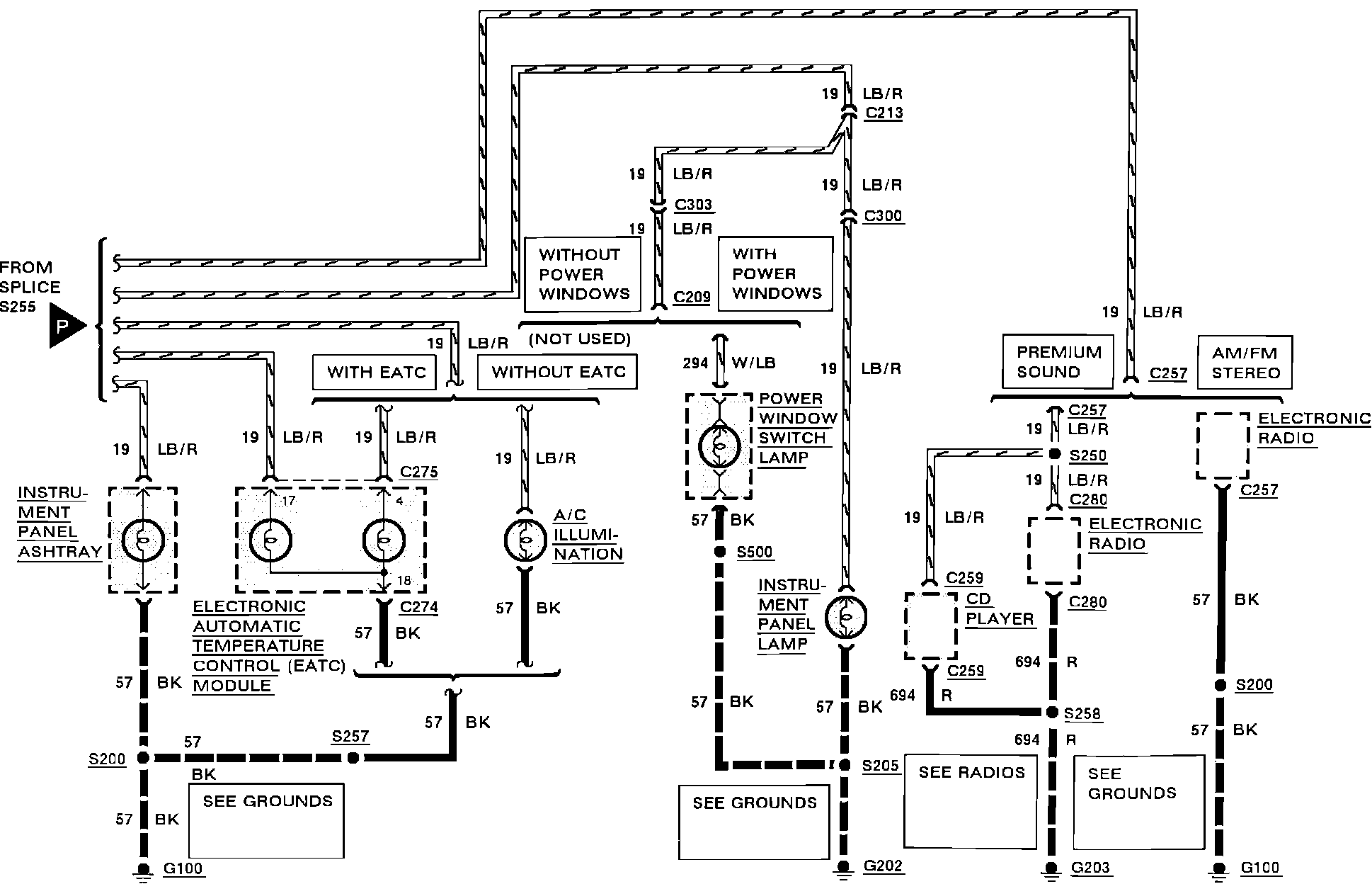

Instrument Panel Illumination:
