Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Without Autolamps

Without Autolamps

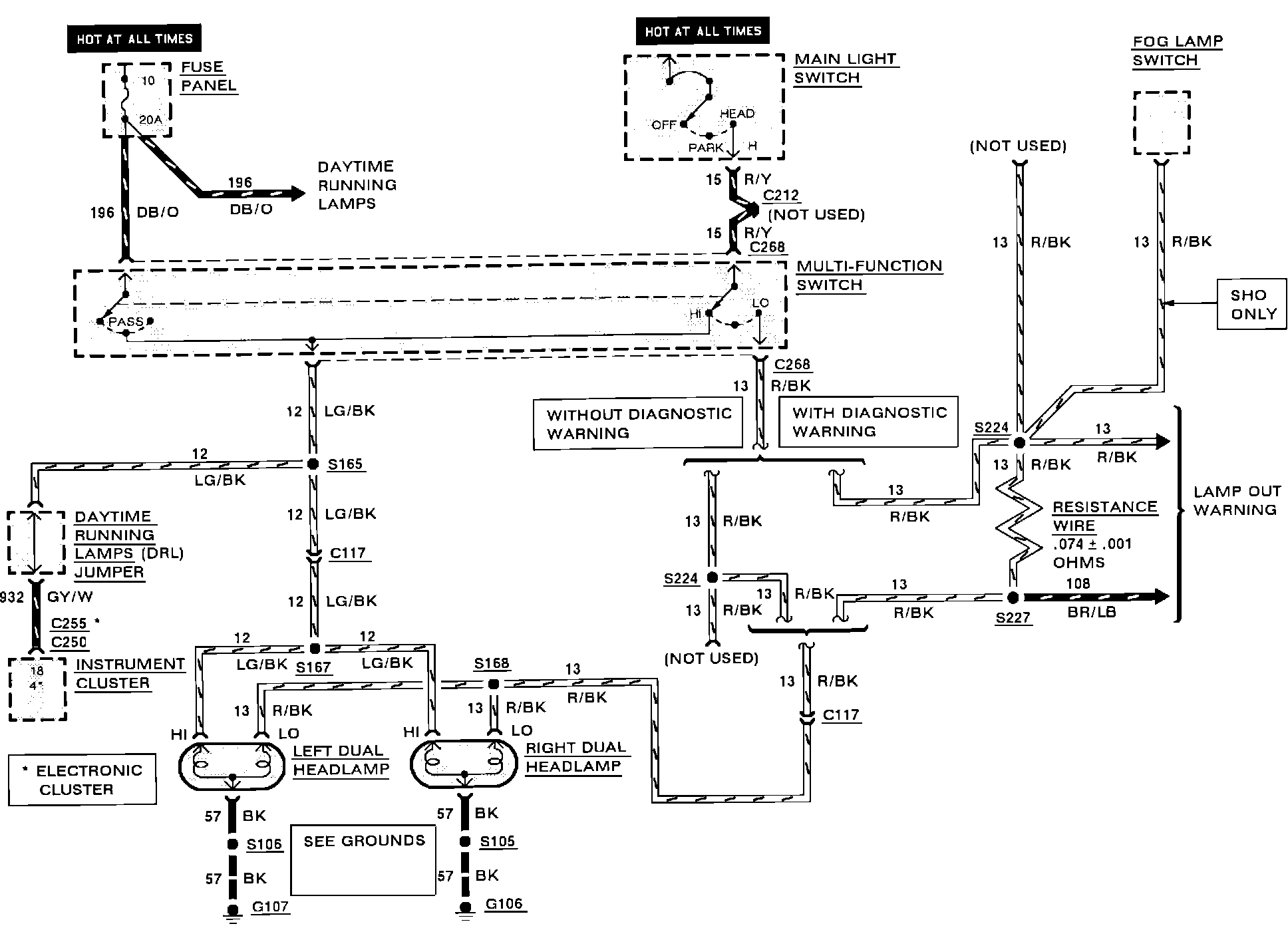

Headlamps Less Delayed Exit:
