Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> Part 2 of 2

Part 2 of 2

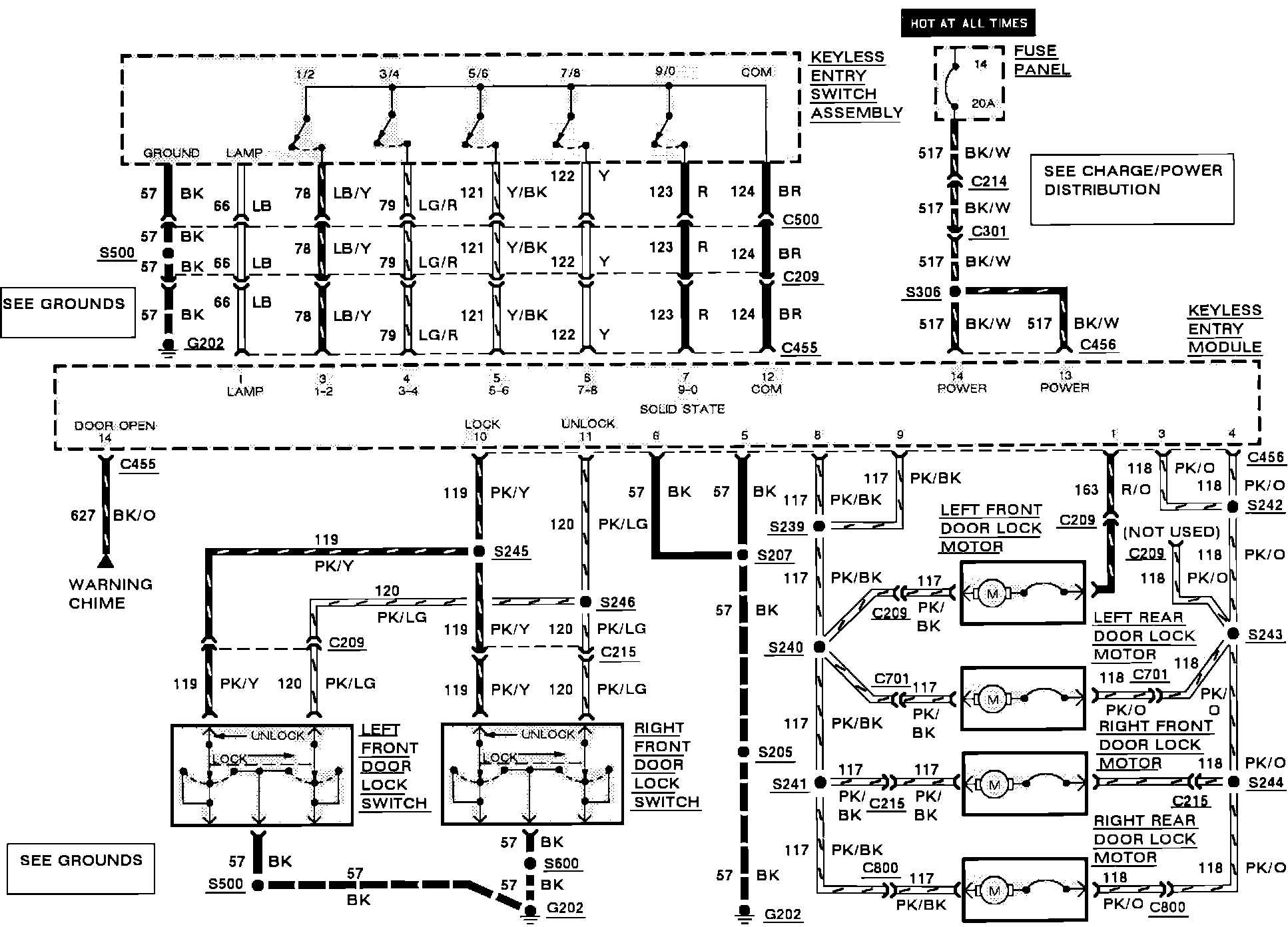

Keyless Entry:
