Key on, Engine Running (KOER) Self-Test

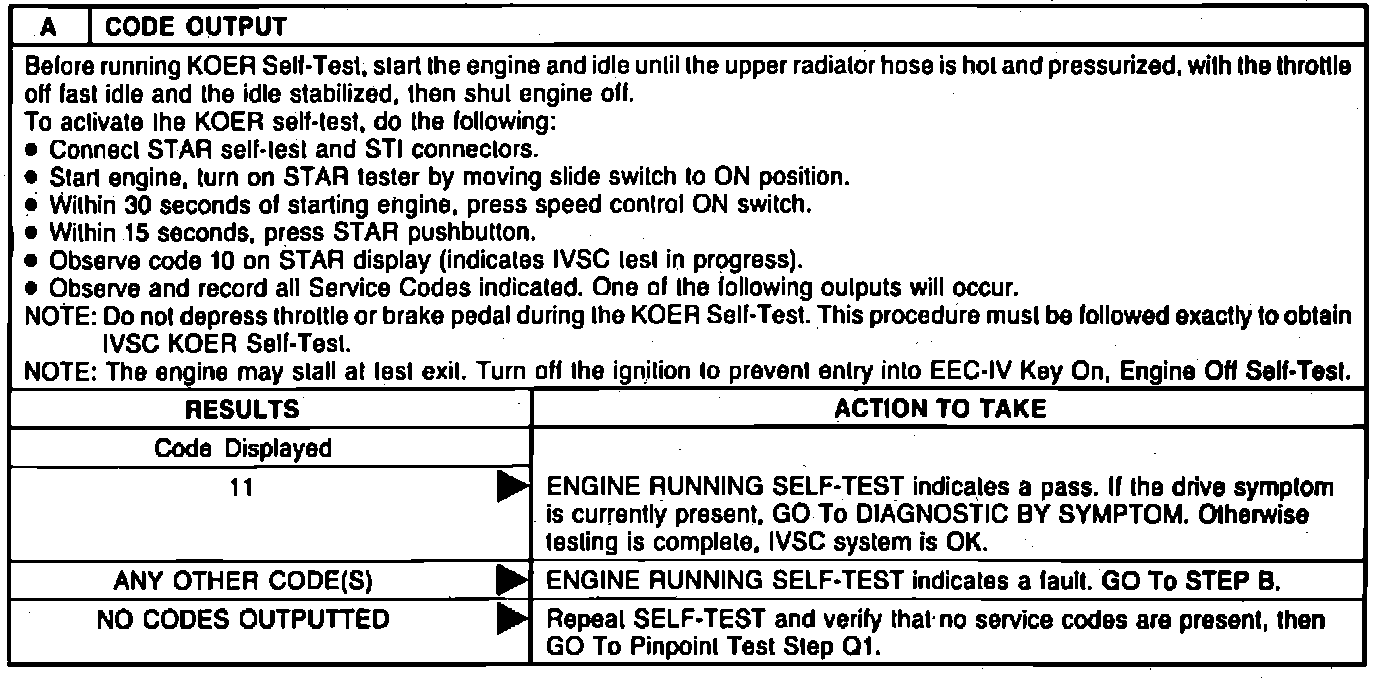

Fig. 38 Quick Test: Key On, Engine Running Self-Test (Part 1 Of 2):



Fig. 38 Quick Test: Key On, Engine Running Self-Test (Part 2 Of 2):
