H: Clutch Switch
H: Clutch Switch

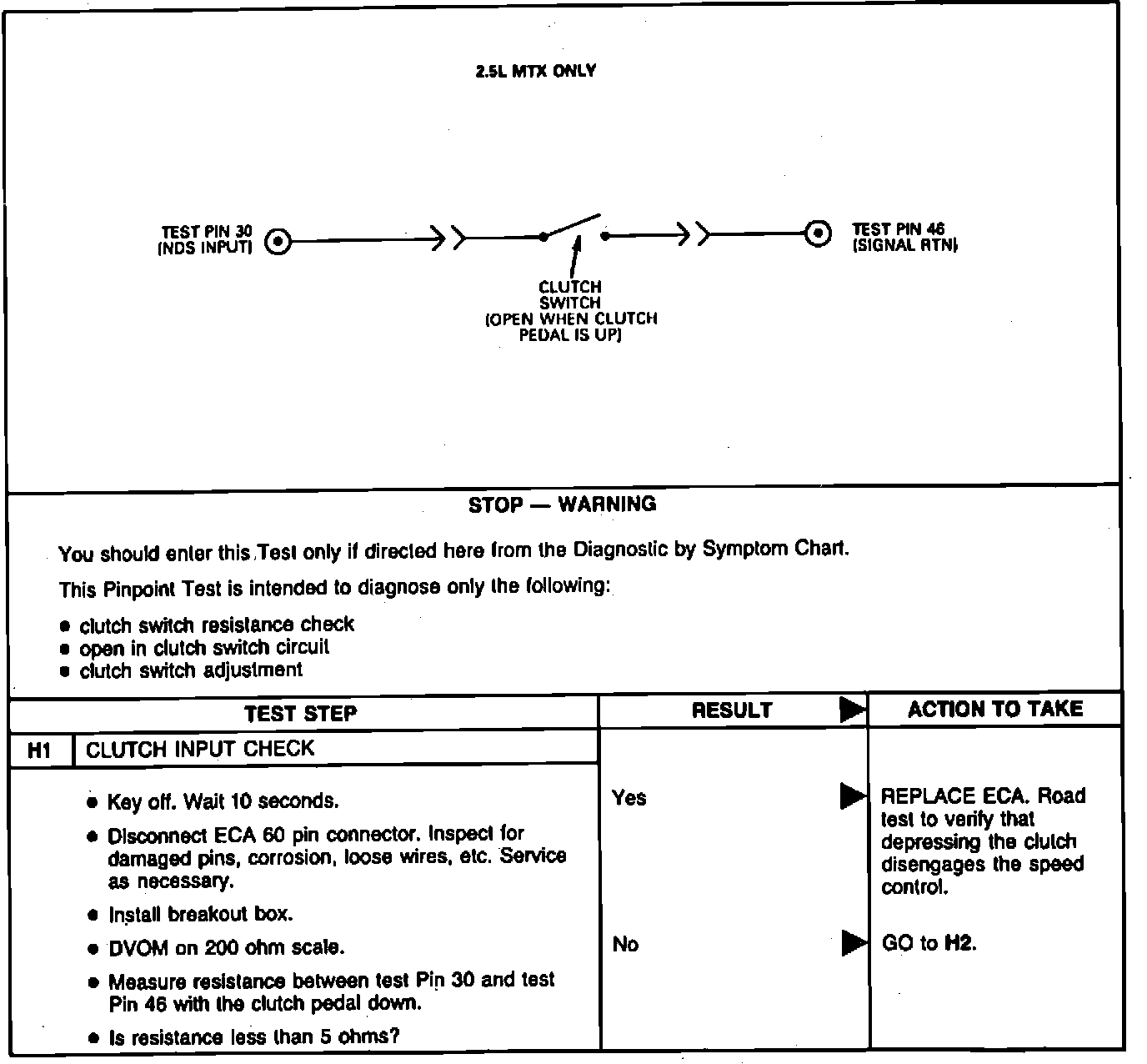

Fig. 48 Clutch Switch Pinpoint Test H (Part 1 Of 2):

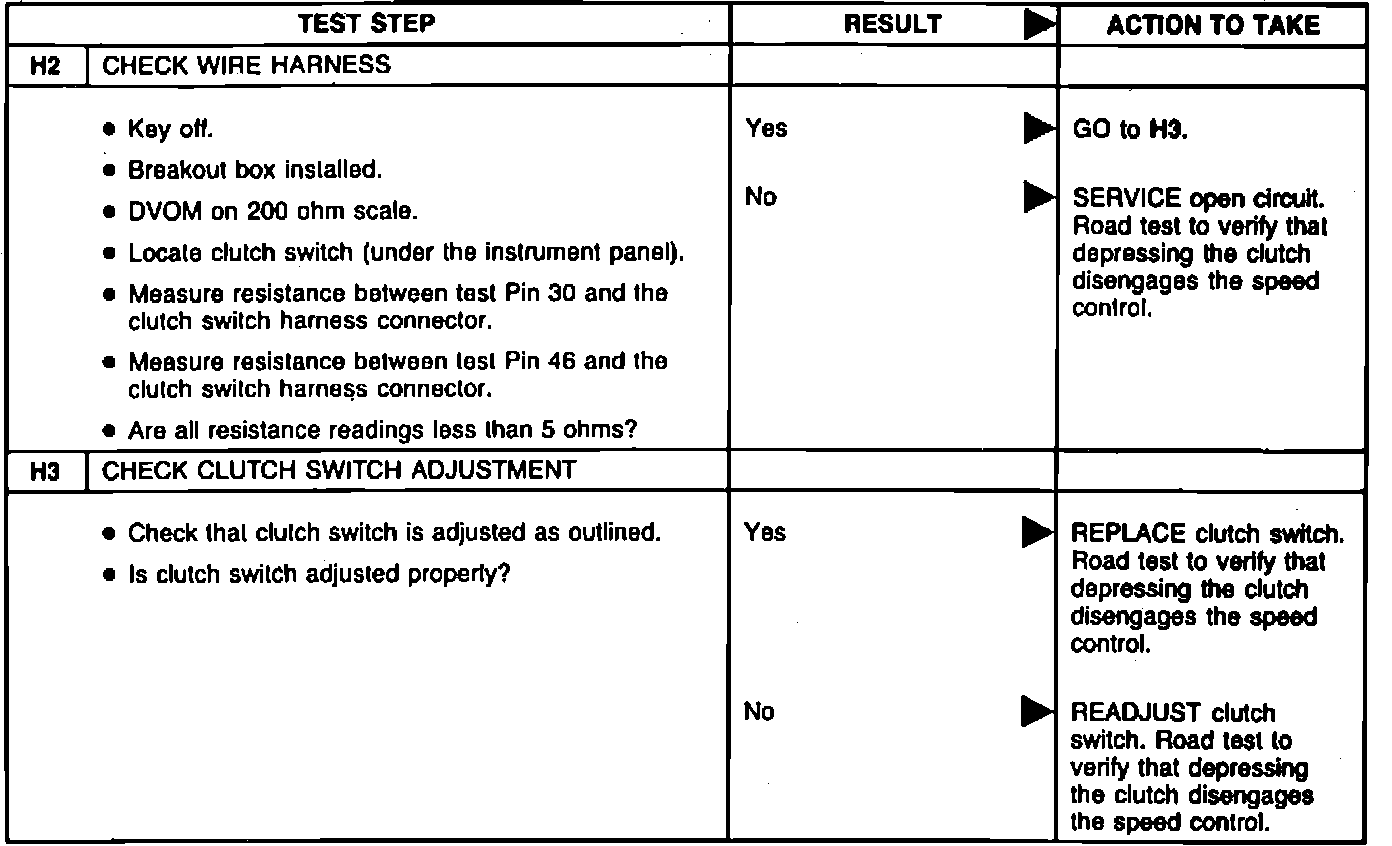

Fig. 48 Clutch Switch Pinpoint Test H (Part 2 Of 2):
