Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> D: Speed Does Not Increase >> D5-D6

D5-D6

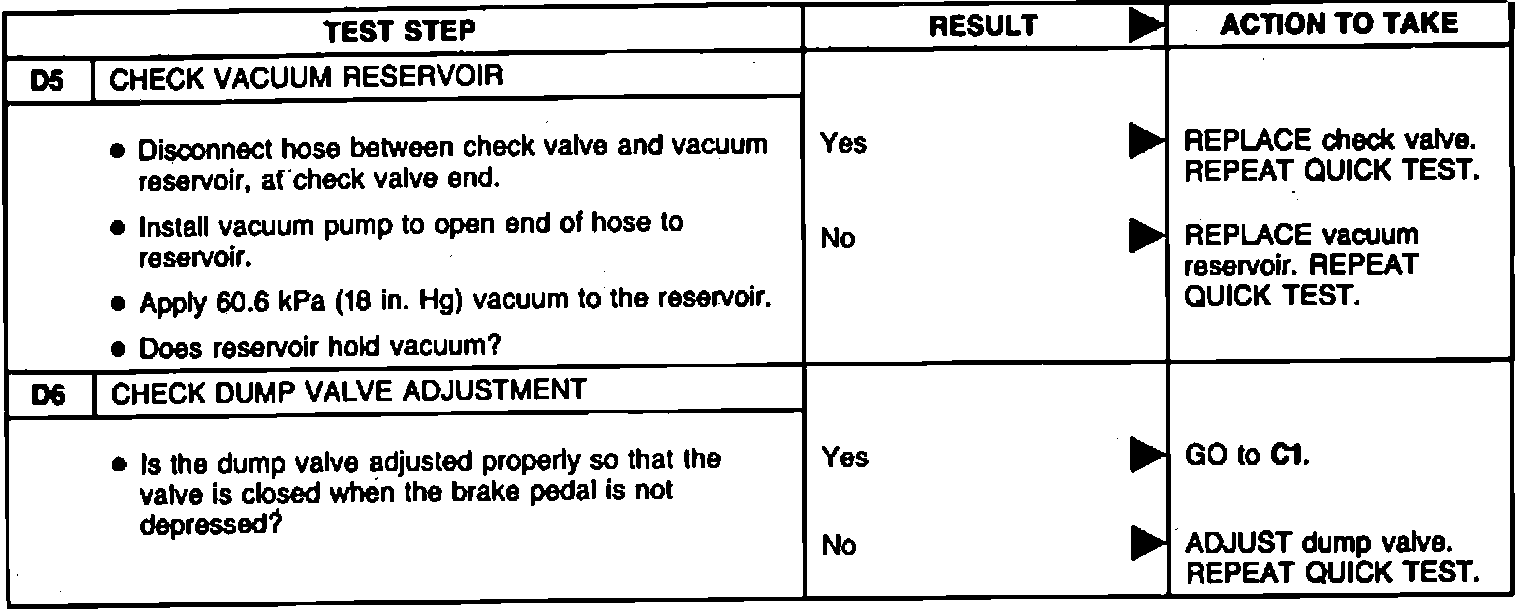

Fig. 44 Speed Does Not Increase During Dynamic Test, Pinpoint Test D:
