C: Servo Solenoids

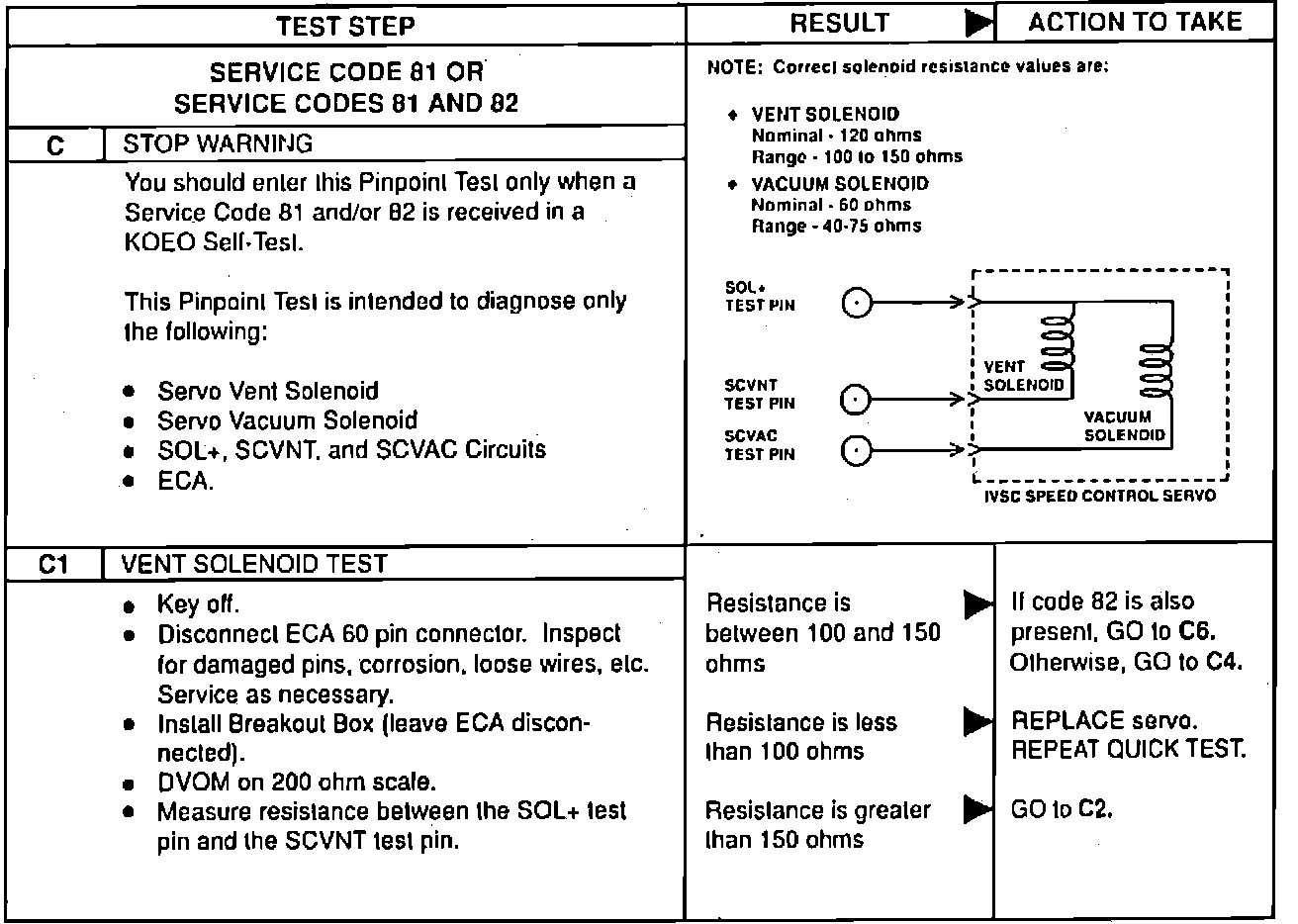

Fig. 43 Servo Solenoids, Pinpoint Test C (Part 1 Of 3):

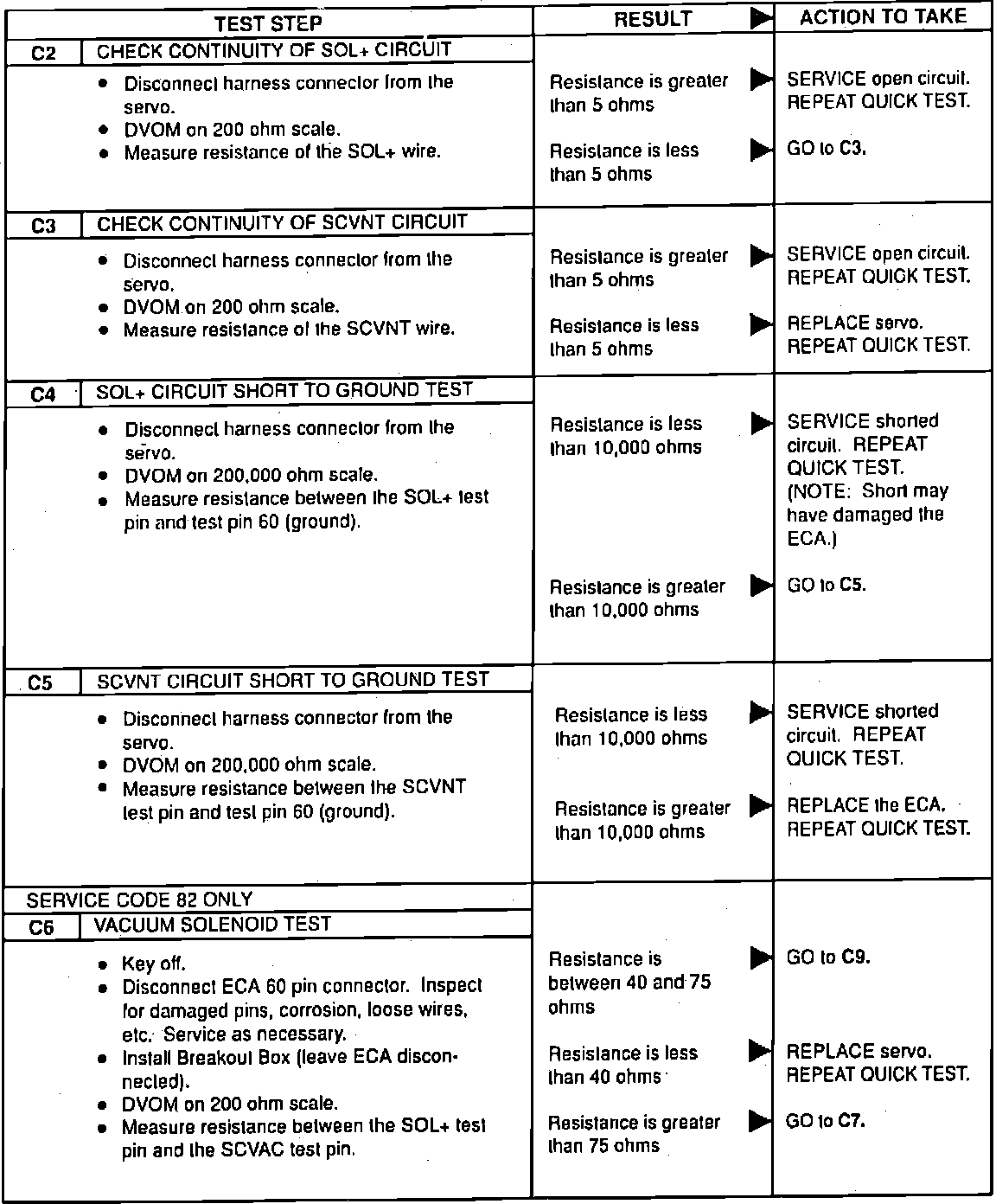

Fig. 43 Servo Solenoids, Pinpoint Test C (Part 2 Of 3):

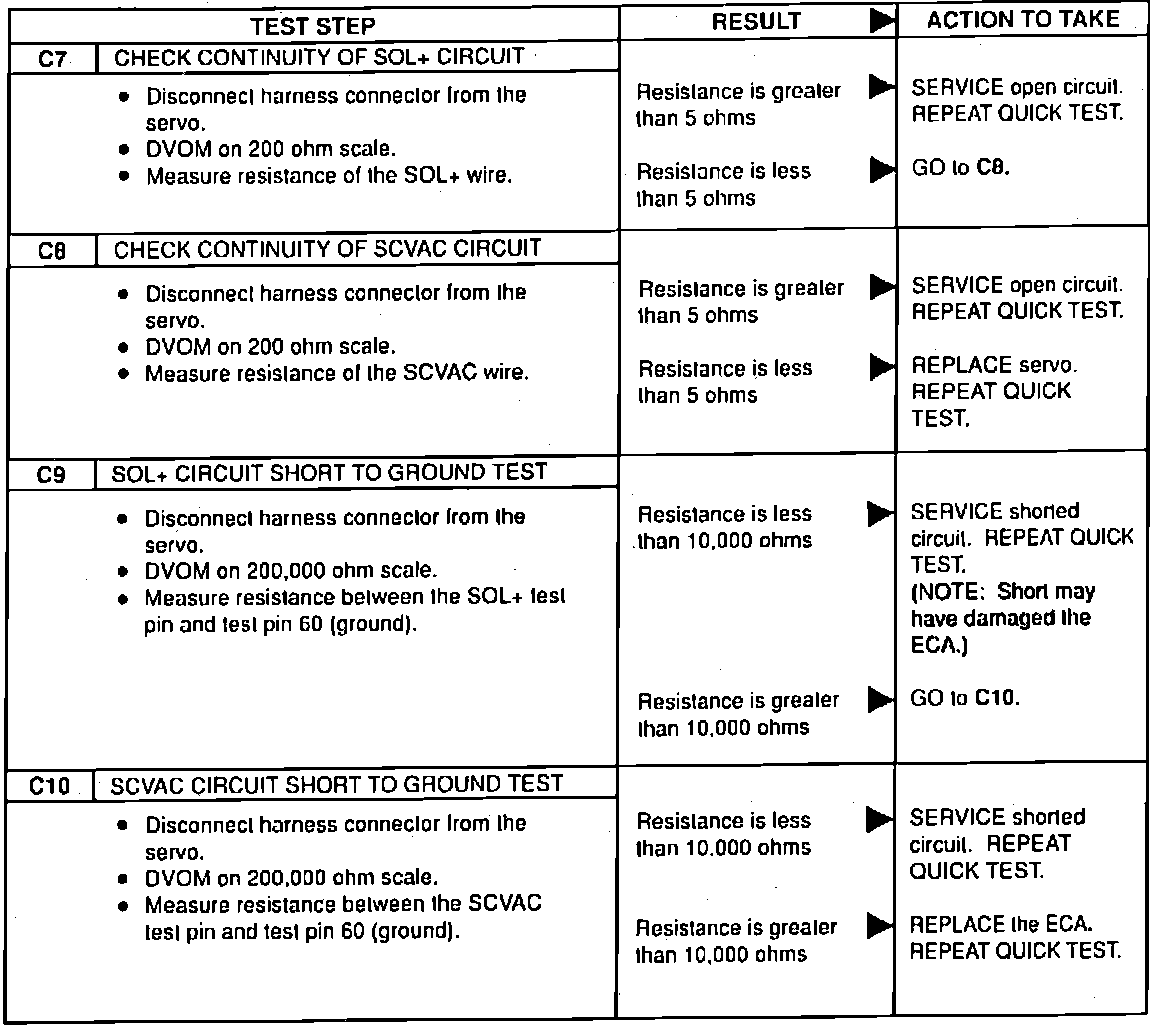

Fig. 43 Servo Solenoids, Pinpoint Test C (Part 3 Of 3):
