Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>

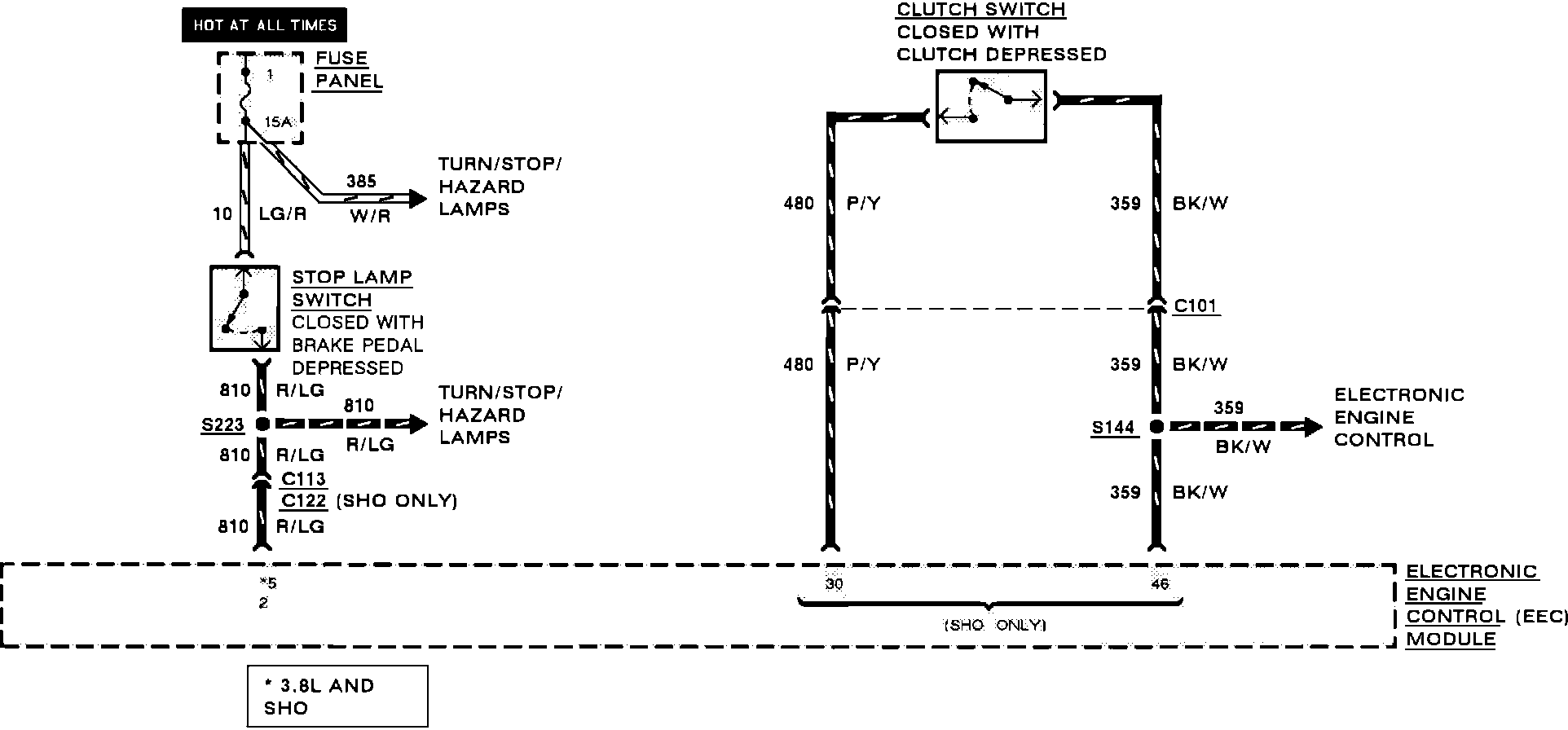

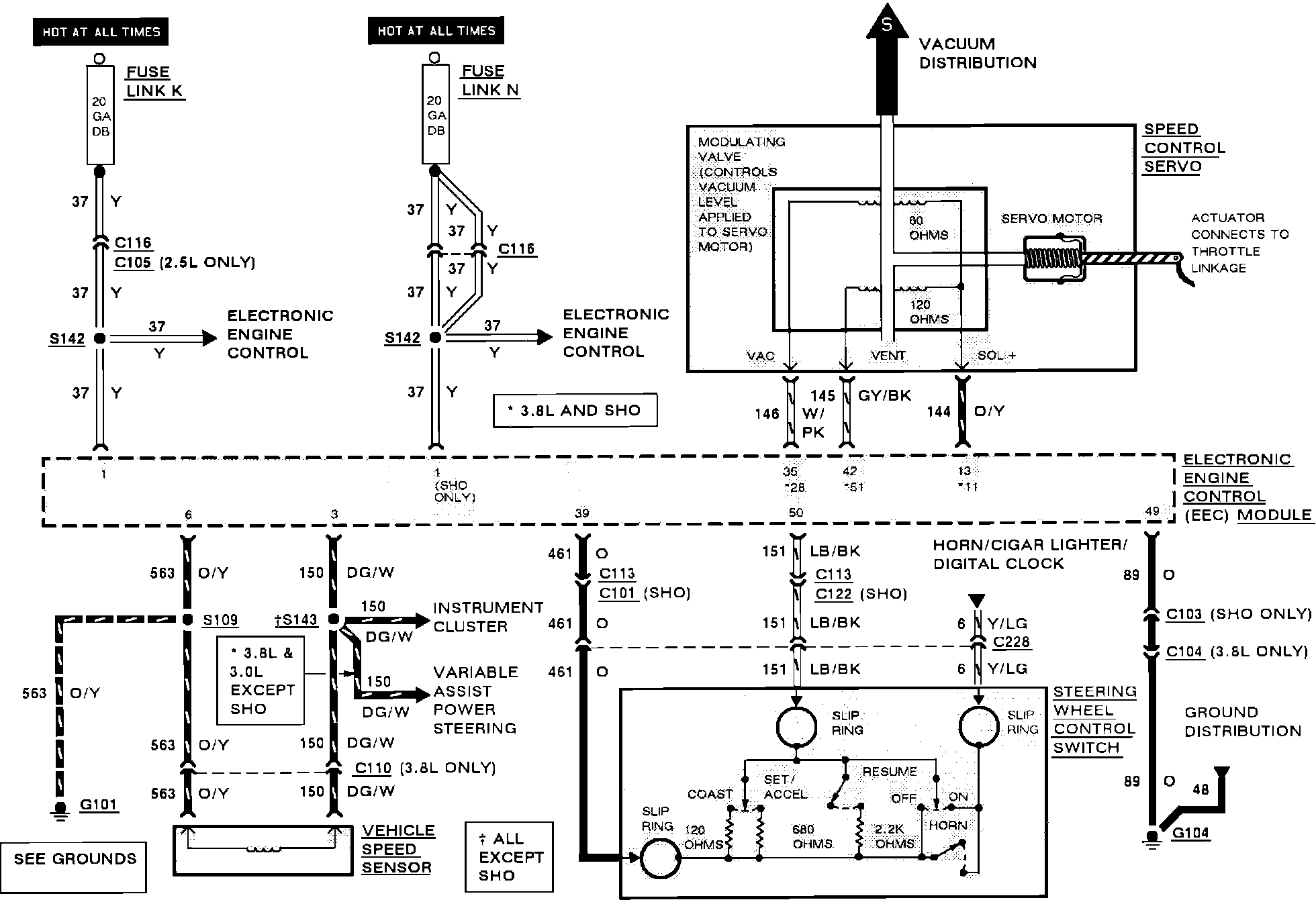

Speed Control Vacuum and Wiring Circuit
Speed Control Vacuum and Wiring Circuit
Cruise Control:
Cruise Control:
