AM/FM Cassette

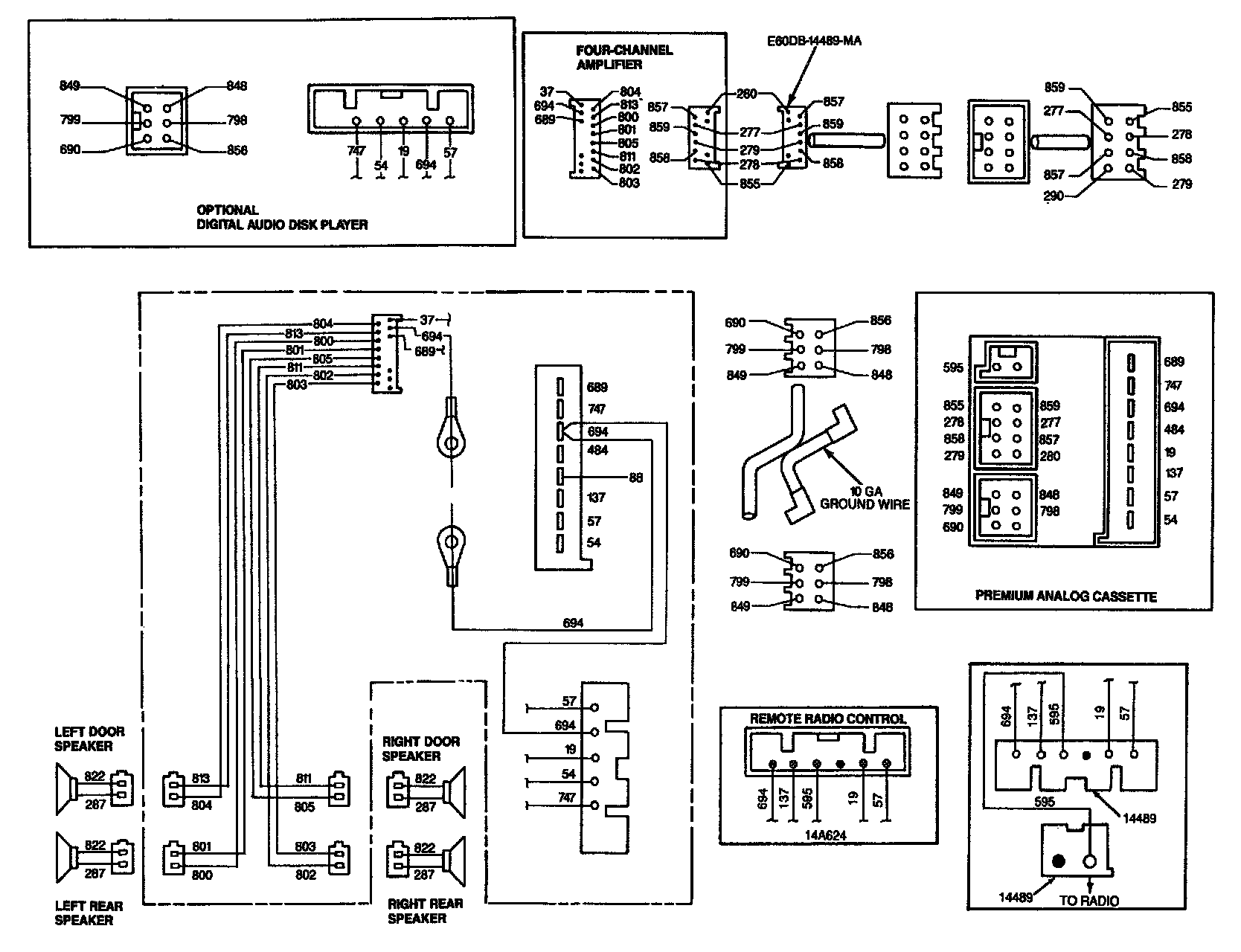

Premium Analog Cassette With Amplifier, With Or Without Disc Player:



Circuit Description Chart:
