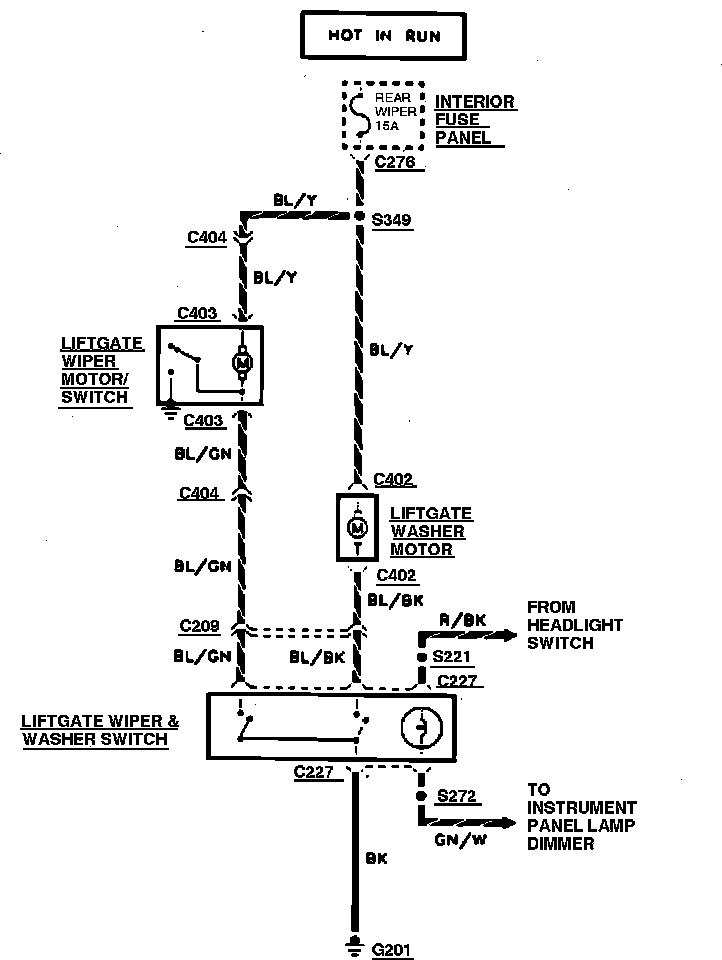

Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams >> Electrical Diagrams >> Rear Wiper/Washer
