Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Throttle Position Sensor >> Locations

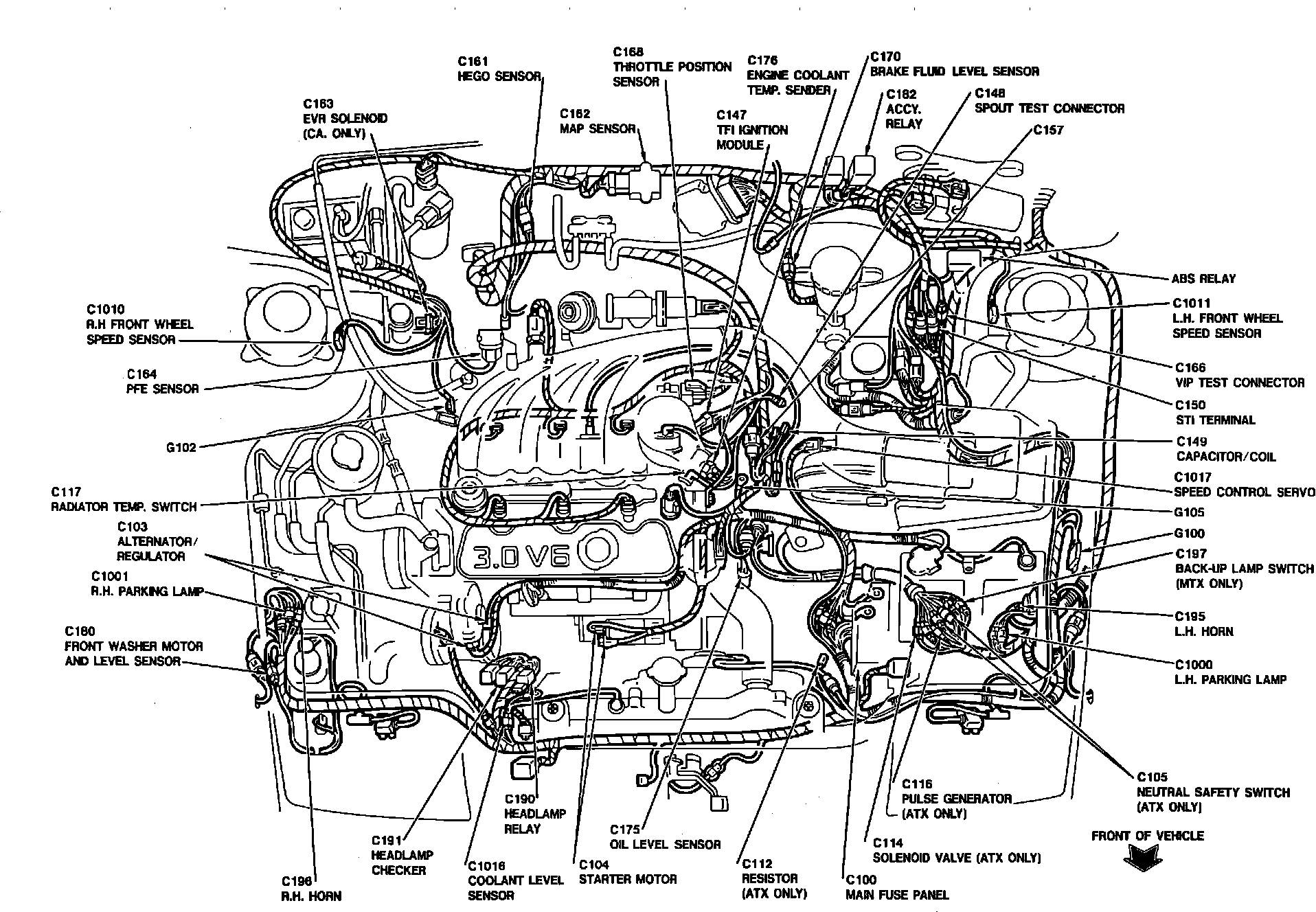

Throttle Position Sensor: Locations

Component Locations:
