Temperature Switch (Warning Indicator)
>>
Testing and Inspection
>>
Pinpoint Tests
Pinpoint Tests

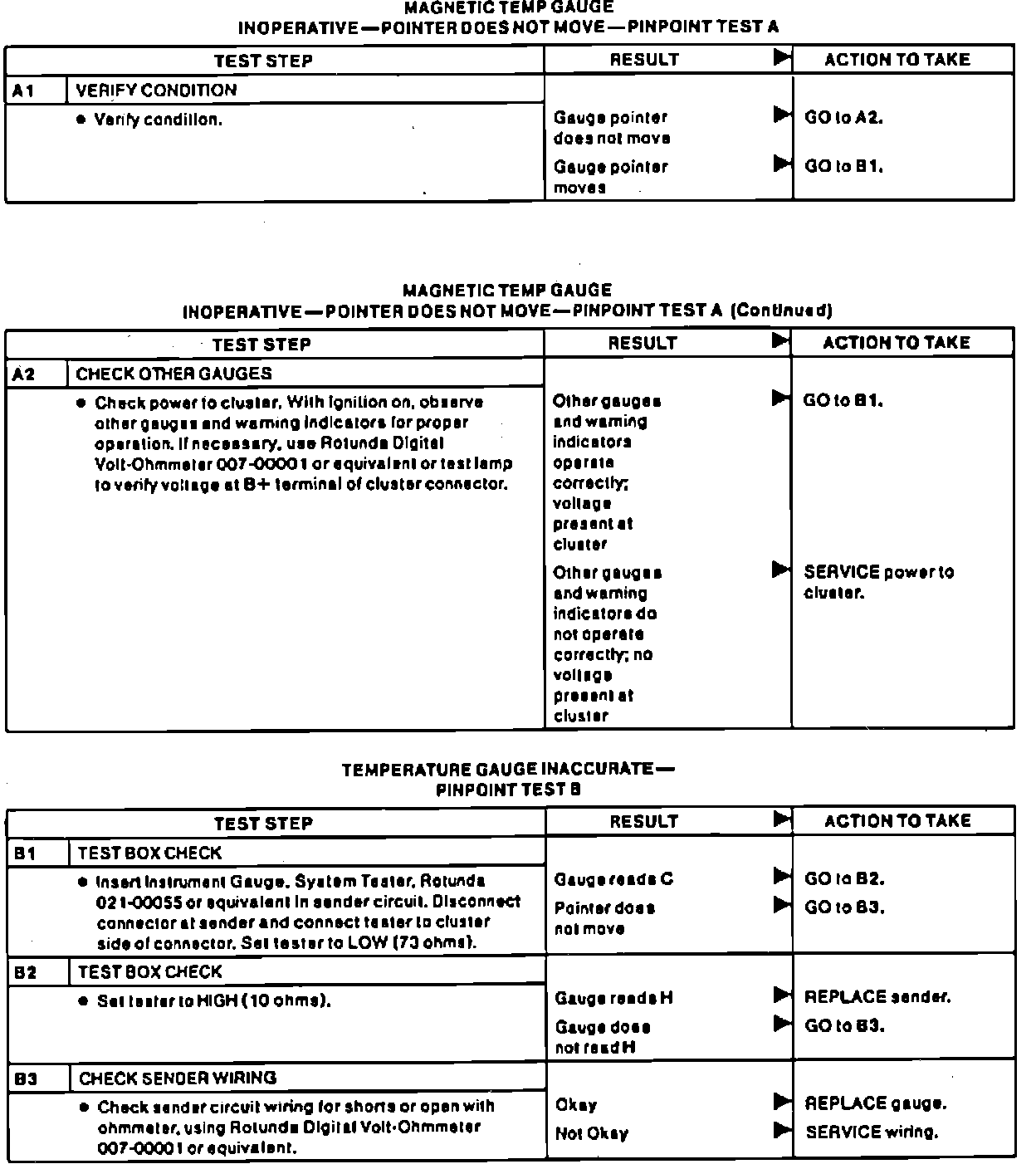

Fig. 5 Temperature Indicating System Diagnosis:
