BME6 - Check R/Y Wire (Blower Relay #2)
BME6 - Check R/Y Wire (Blower Relay #2)

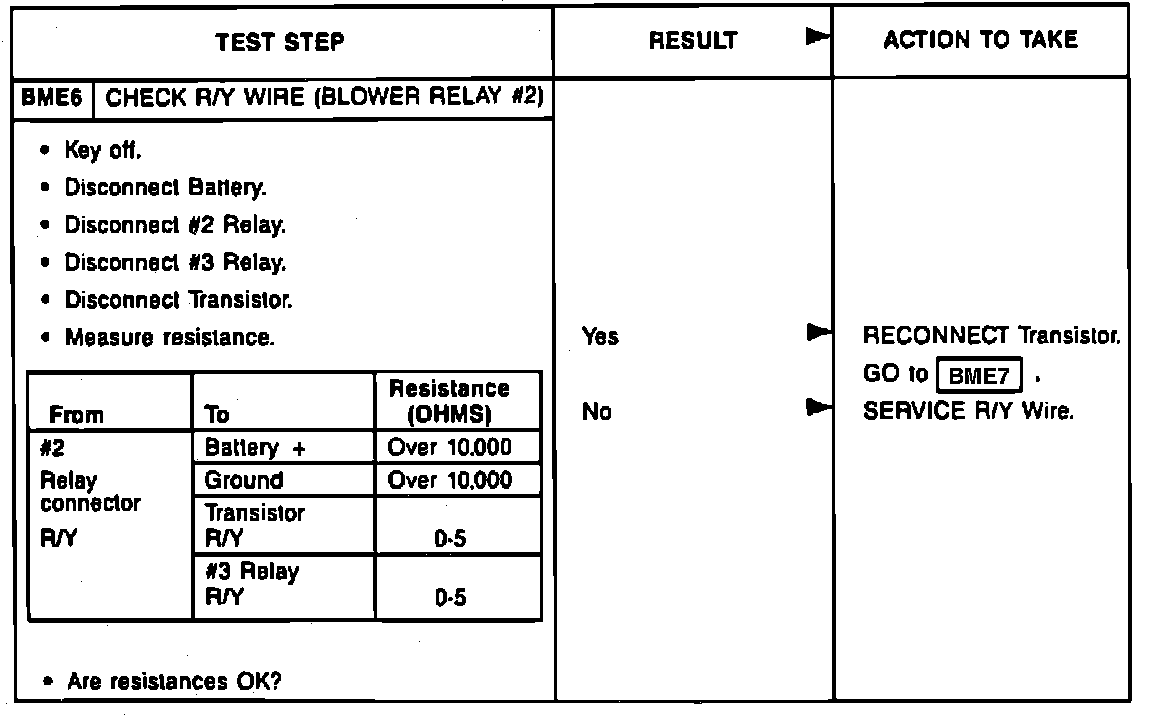

Fig. 8 Blower Motor Diagnosis (BM6).:
