Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Dimmer Switch >> Diagrams >> Electrical Diagrams >> Less Headlamp Checker

Less Headlamp Checker

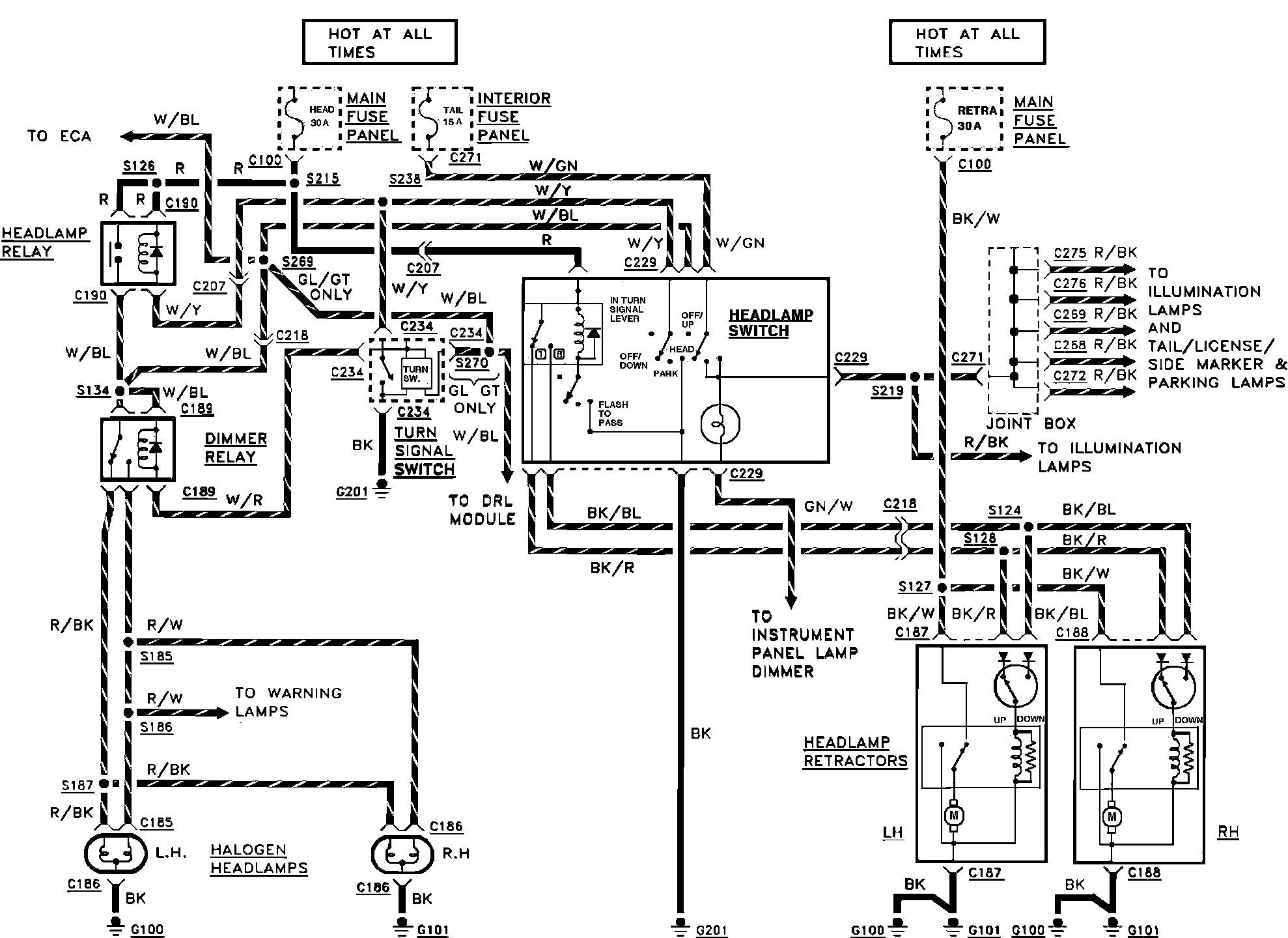

Headlamp - Less Headlamp Checker:
