Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Drive Belts, Mounts, Brackets and Accessories >> Engine Mount >> Service and Repair

Engine Mount: Service and Repair

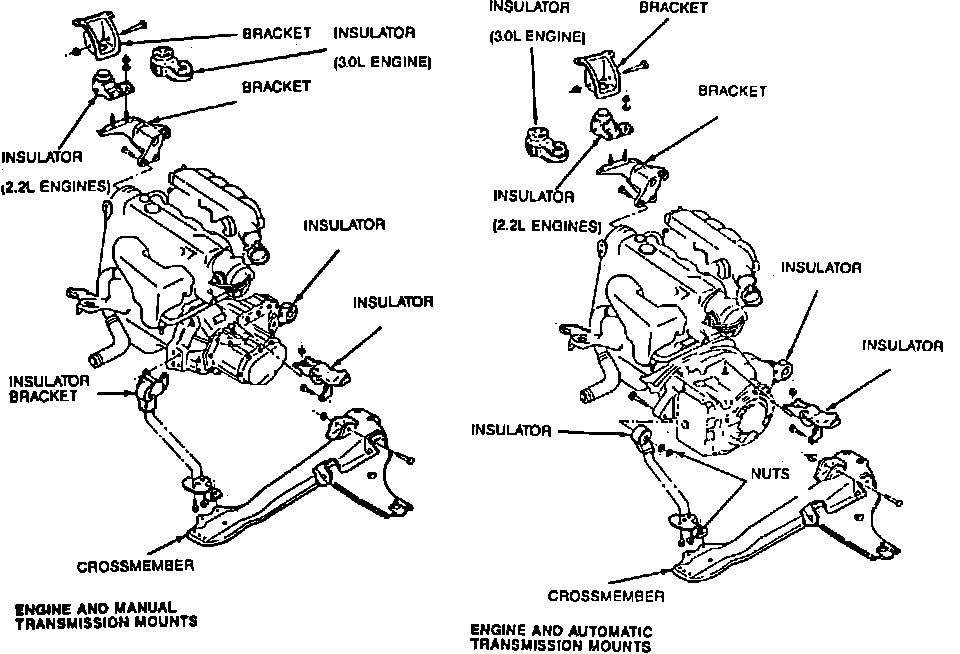

Fig. 1 Engine Mounts:
