Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Dimmer Switch >> With Headlamp Checker

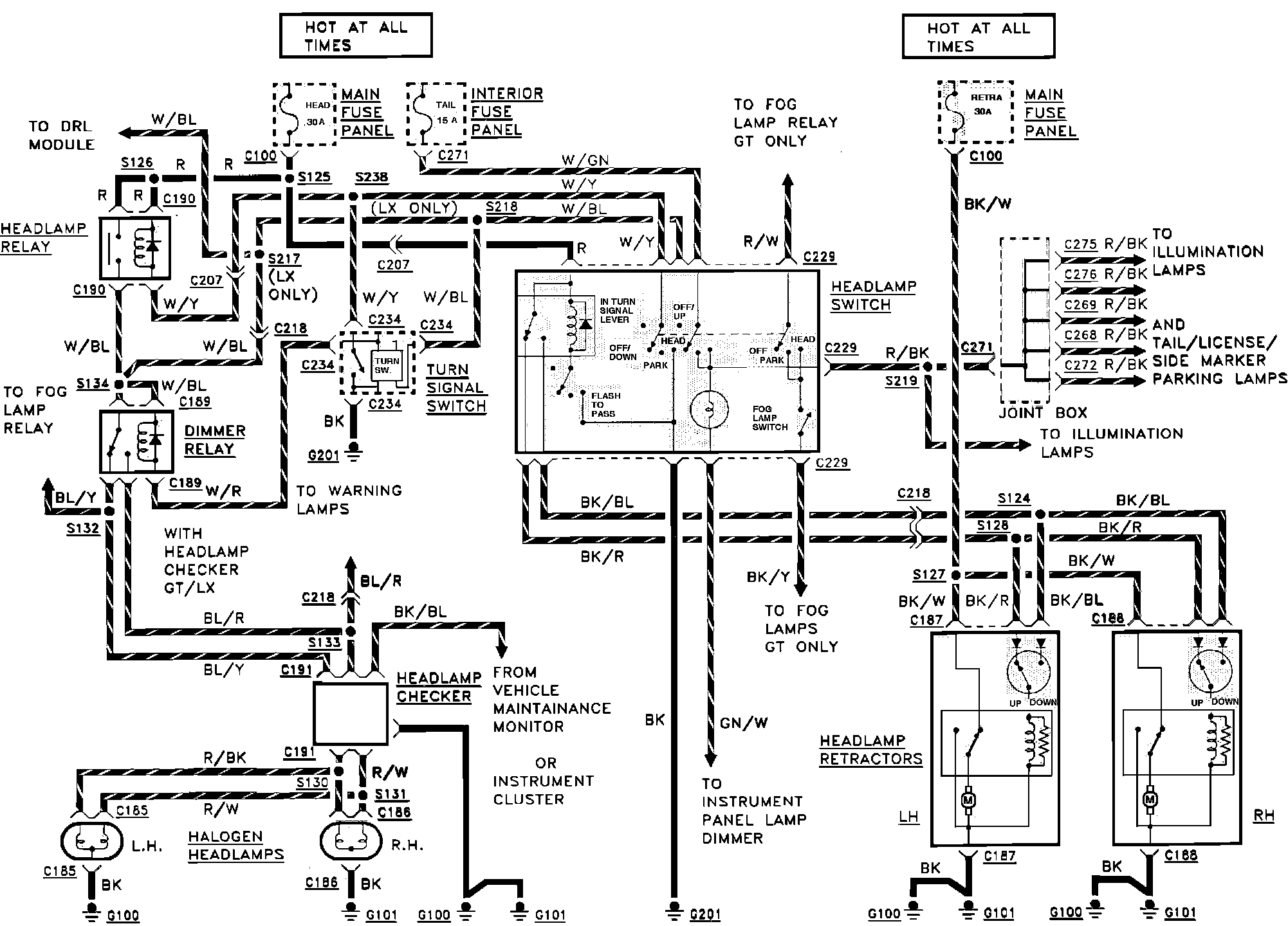

With Headlamp Checker

Headlamp - With Headlamp Checker:
