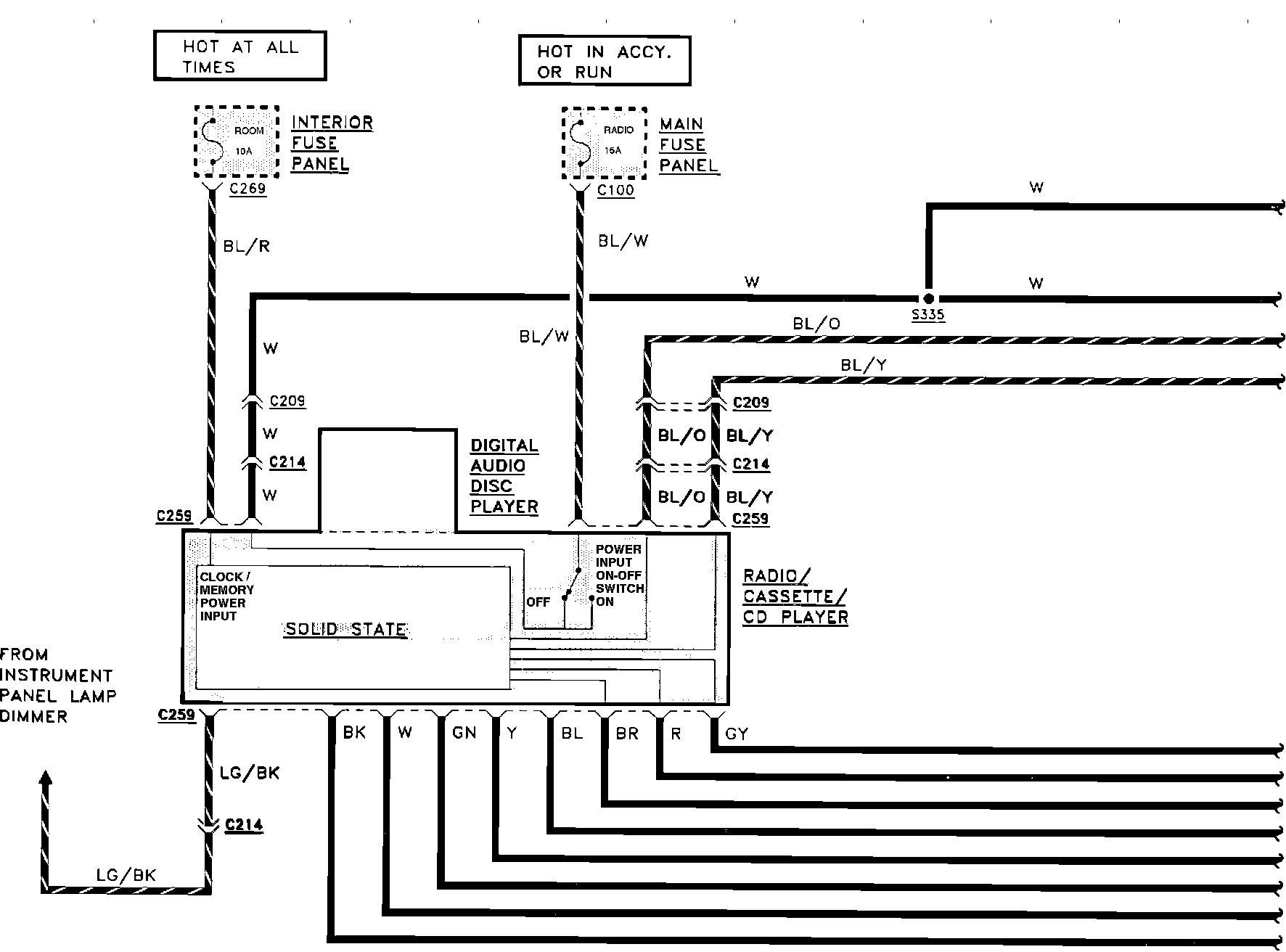

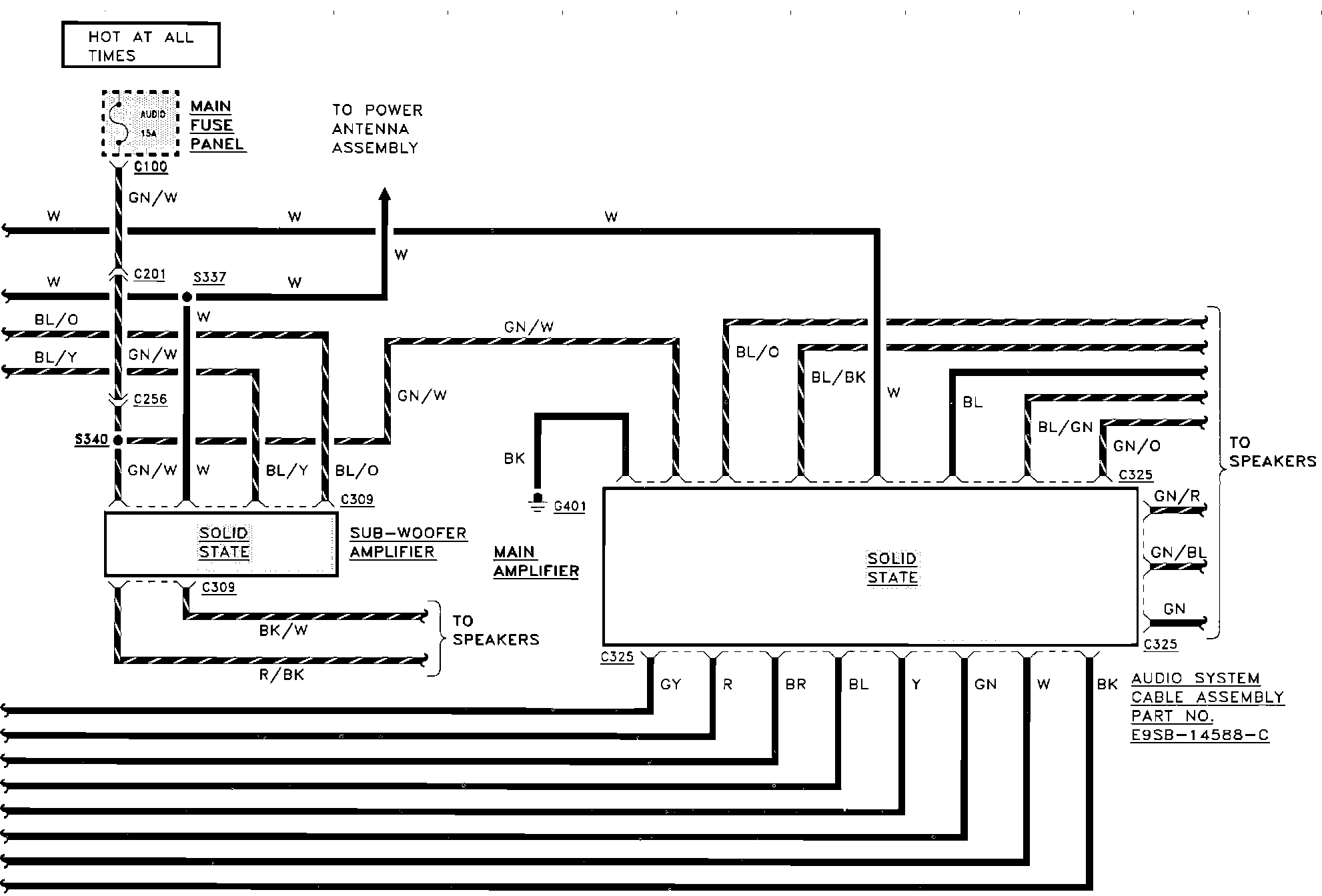

Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> AM/FM >> CD Player
