Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Diagram Information and Instructions >> Symbol Identification

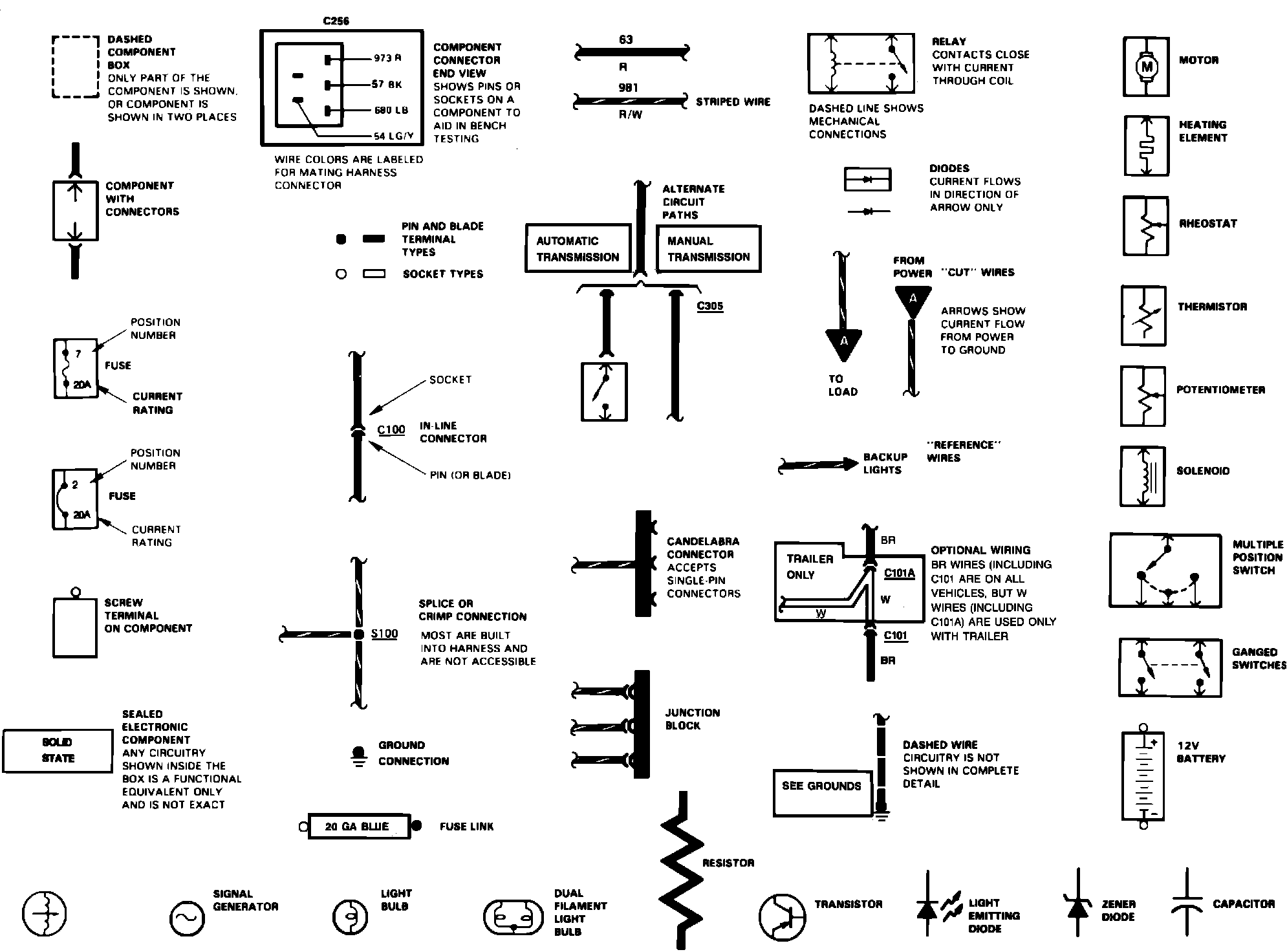

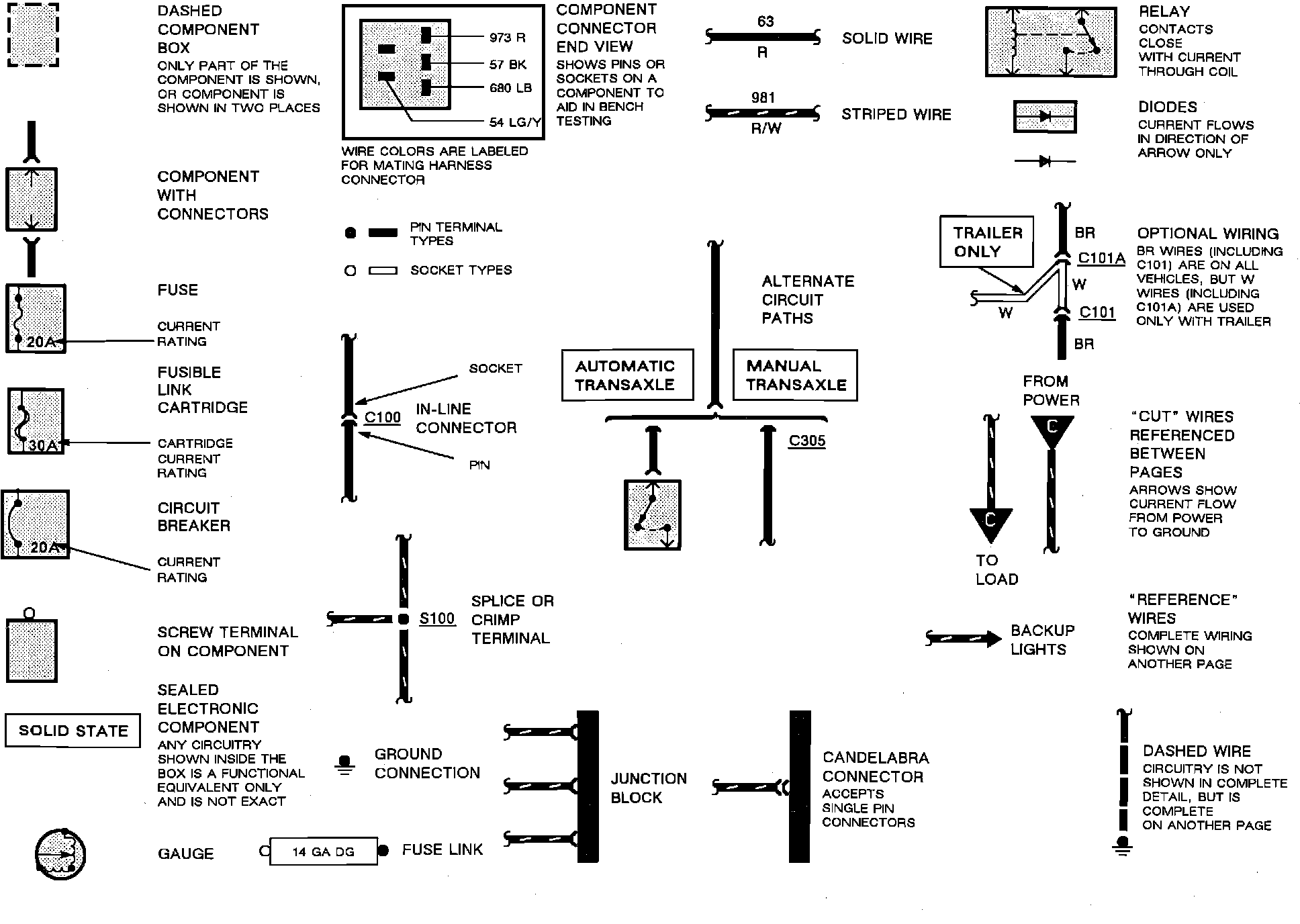

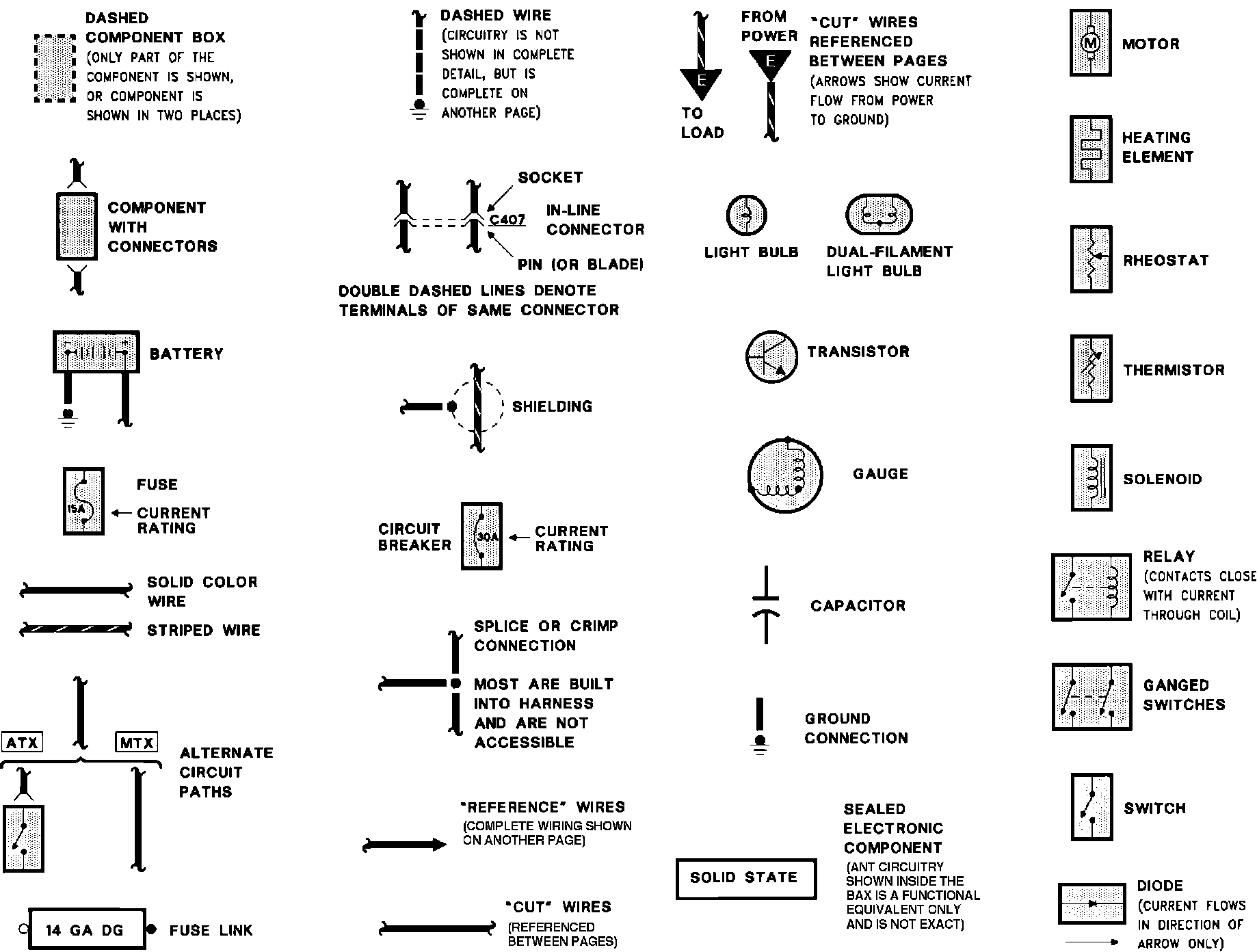

Symbol Identification

Symbol Identification:



Symbol Identification:



Symbol Identification:
