Rear Crankshaft Seal: Installation

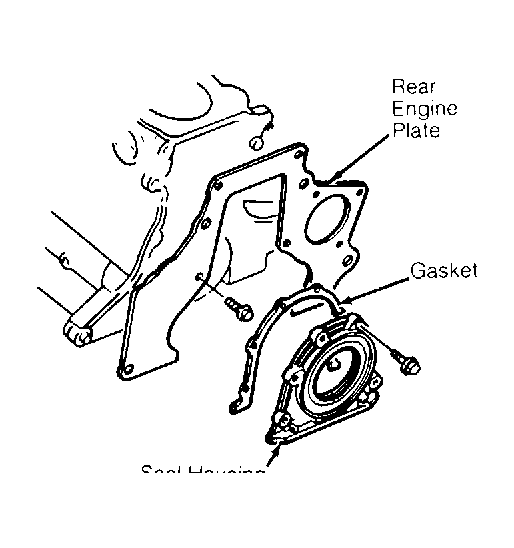

Coat seal and housing with engine oil. Using press and Seal Installer (T88C-6701-BH), install seal in housing. Seal must be installed with hollow side toward the crankshaft. Install seal housing with new gasket. Trim gasket even with cylinder block. Install remaining components.
