Tachometer Reading Low

If tachometer reading is lower than normal, check these items:

• Check for defective tachometer.
• Check for faulty Black ground wire at instrument panel.

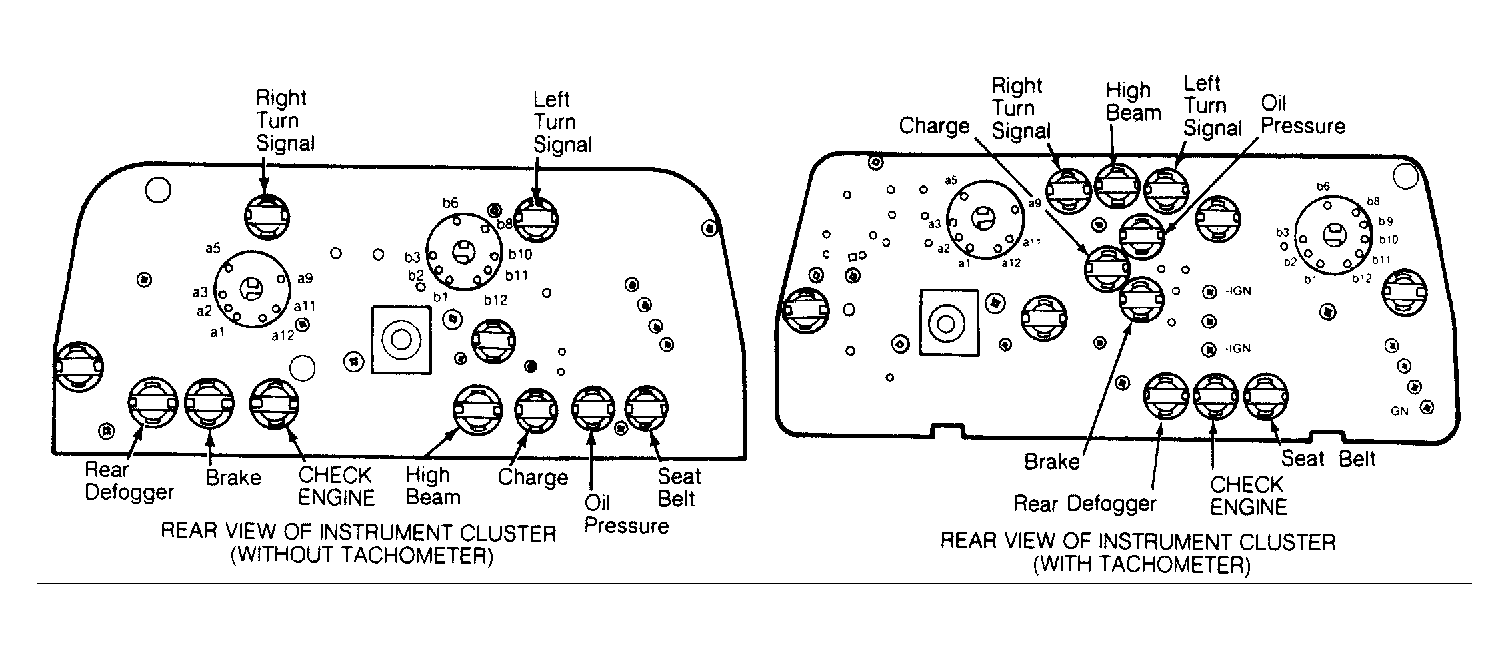

Fig 1: Locating Instrument Panel Indicator Lights

Courtesy of FORD MOTOR CO.
