Trouble Shooting: Notes

CAUTION: DO NOT ground or cause spark at integral instrument voltage regulator terminals. Damage to integral instrument voltage regulator or instrument panel printed circuit will result.

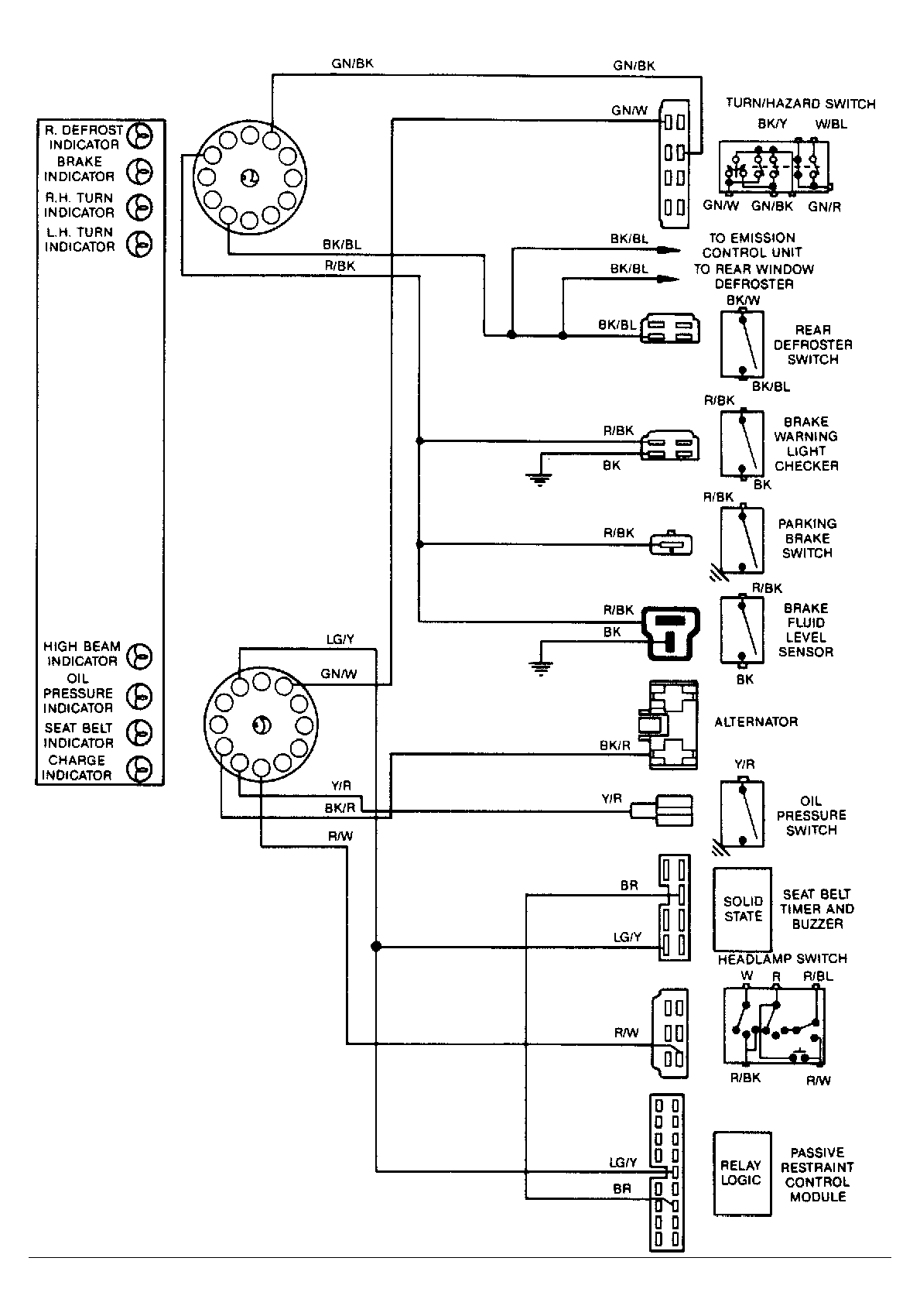

NOTE: Ensure continuity exists between chassis ground and Black wire of instrument panel connector, especially if fault exists in multiple gauge circuits. To identify wiring referred to in TROUBLE SHOOTING, See Figure .
