Wiring Diagrams

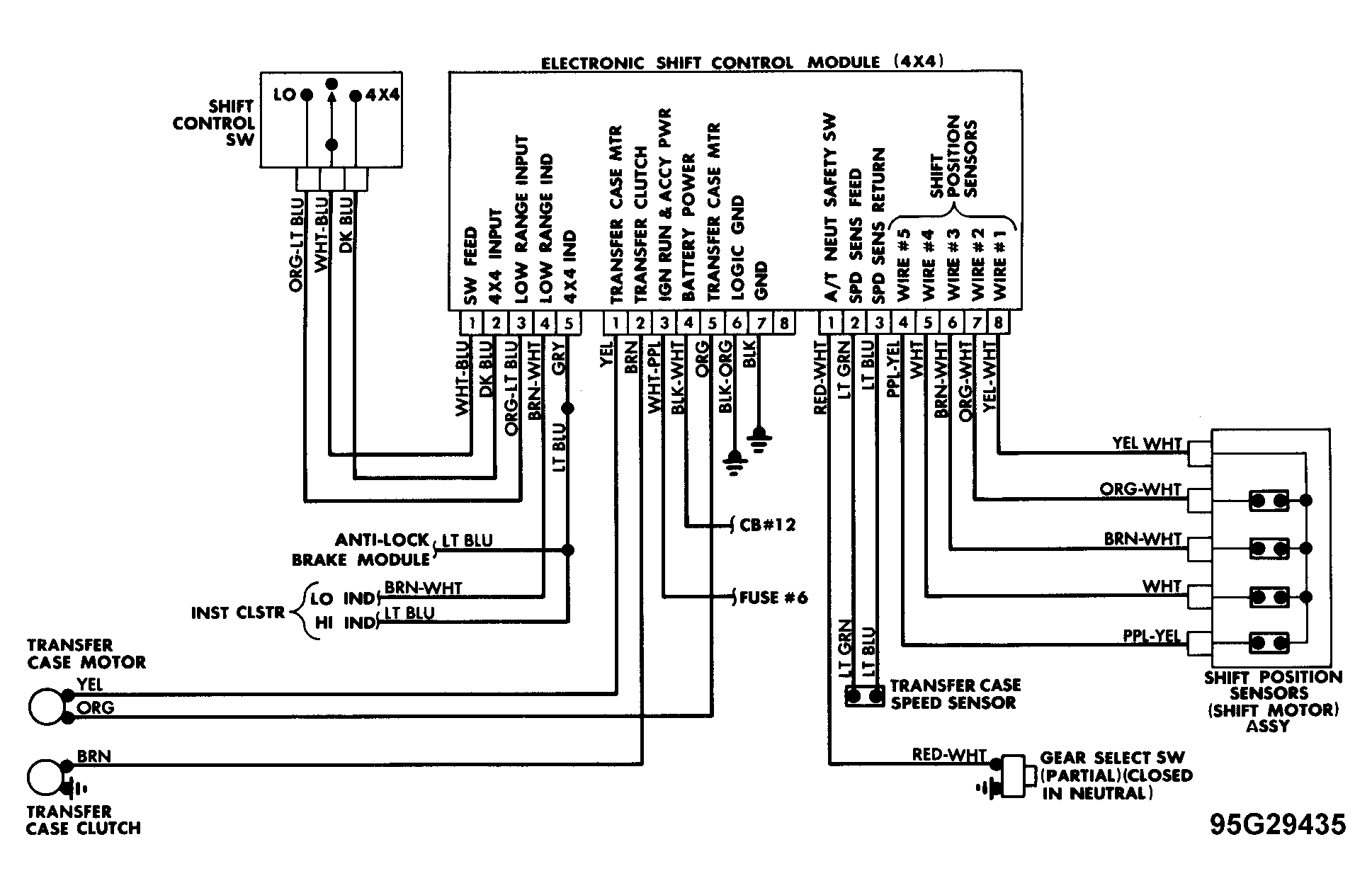

Fig 1: Shift Transfer Case Schematic (Electronic shift models only - Bronco)

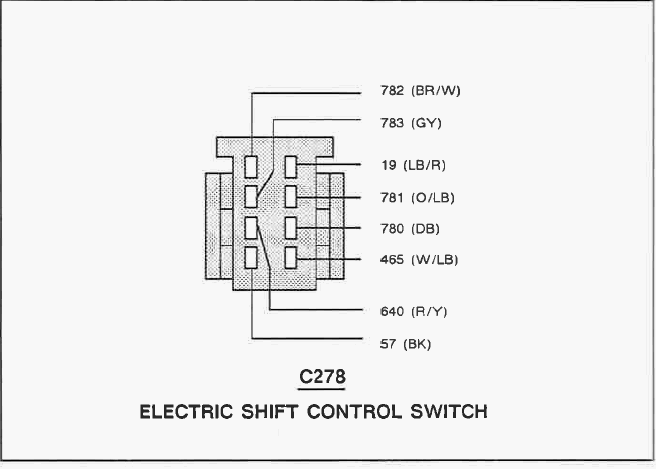

Fig 2: Electronic Shift Control Switch Schematic

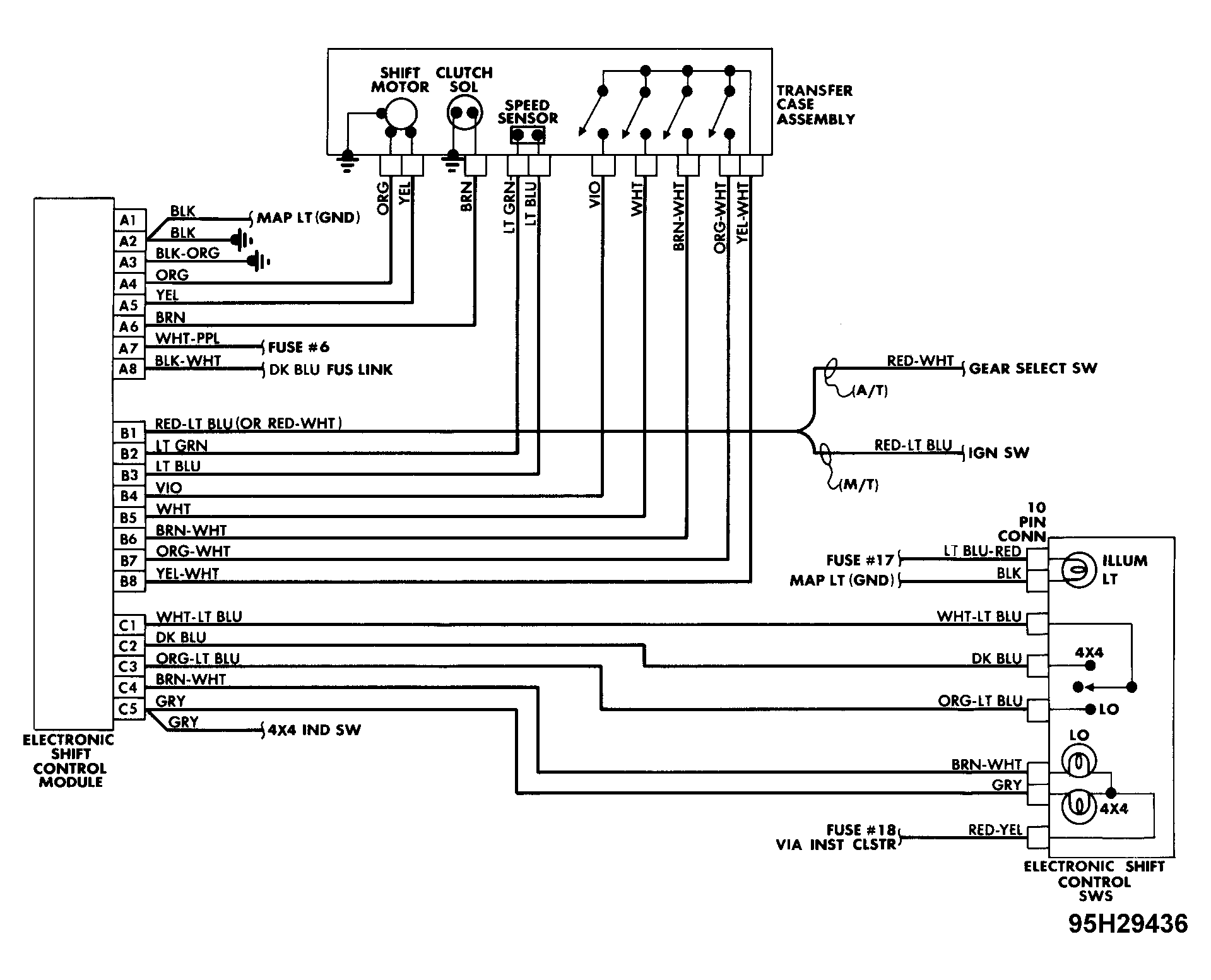

Fig 3: Transfer Case Wiring Diagram (Electronic shift models only - Bronco II & Ranger)

Fig 4: Transfer Case Wiring Diagram (1992-94 Explorer & Ranger)
