8-Wire Harness Connector Test

  1. Turn ignition off. Connect ohmmeter between terminals No. 1 and ground. On manual transmission, depress clutch pedal and observe ohmmeter. There should be less than 50 ohms.
  2. On automatic transmission, shift transmission into Neutral and observe ohmmeter. There should be less than 50 ohms.
  3. Measure resistance between terminals No. 2 and 3. There should be 200-300 ohms. This checks speed sensor continuity.
  4. Connect ohmmeter between terminal No. 8 and, in turn, terminals No. 4, 5, 6 and 7. Resistance should be as specified. See Fig 1.

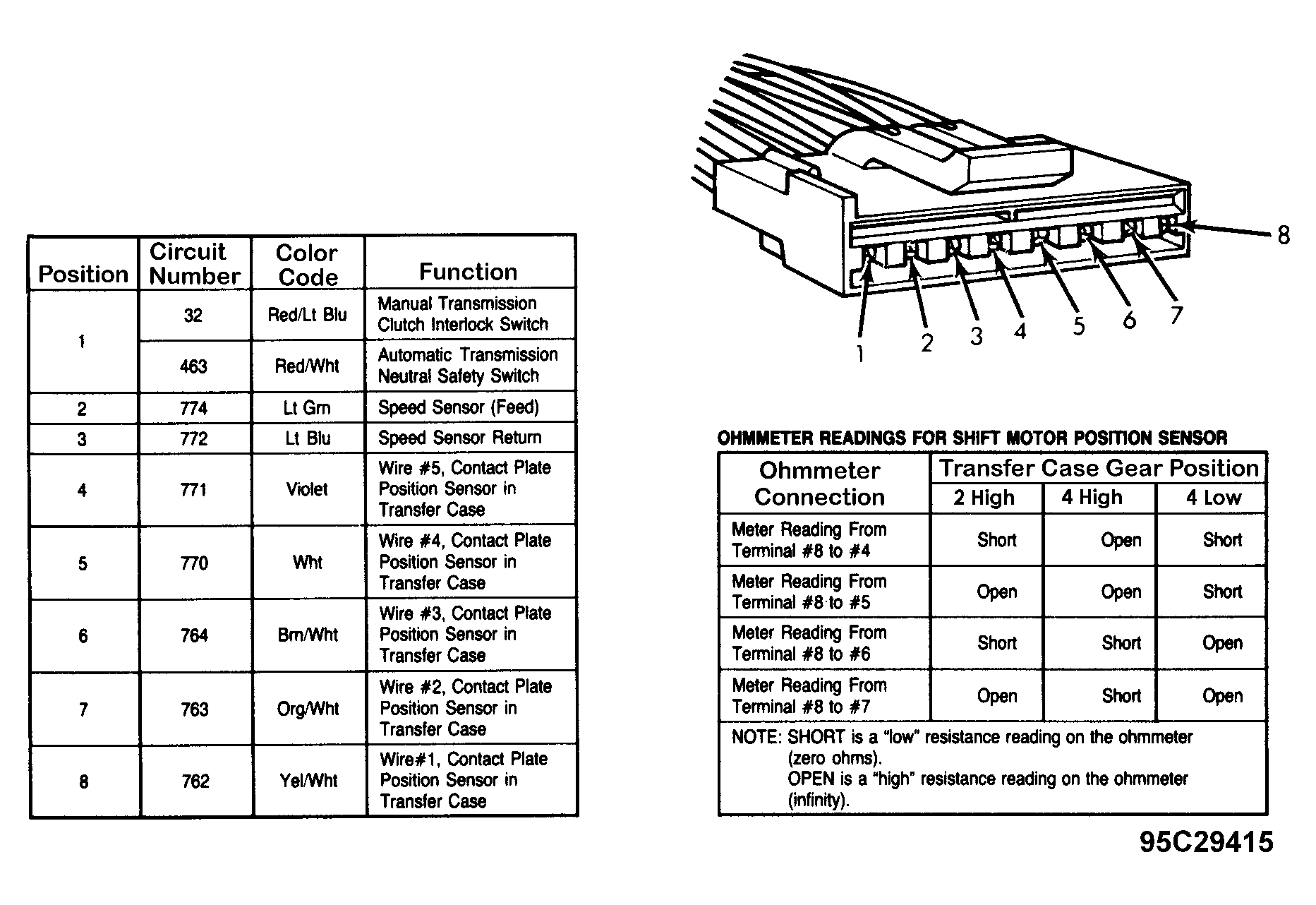

Fig 1: 8-Wire Harness Connector & Function Charts
G95C29415Courtesy of FORD MOTOR CO.
