3-Piece Shafts

  1. An adjustable support plate is used to allow for different applications. The correct position is determined by attaching the support plate to the holes provided in the frame side rail. See Fig 1 .

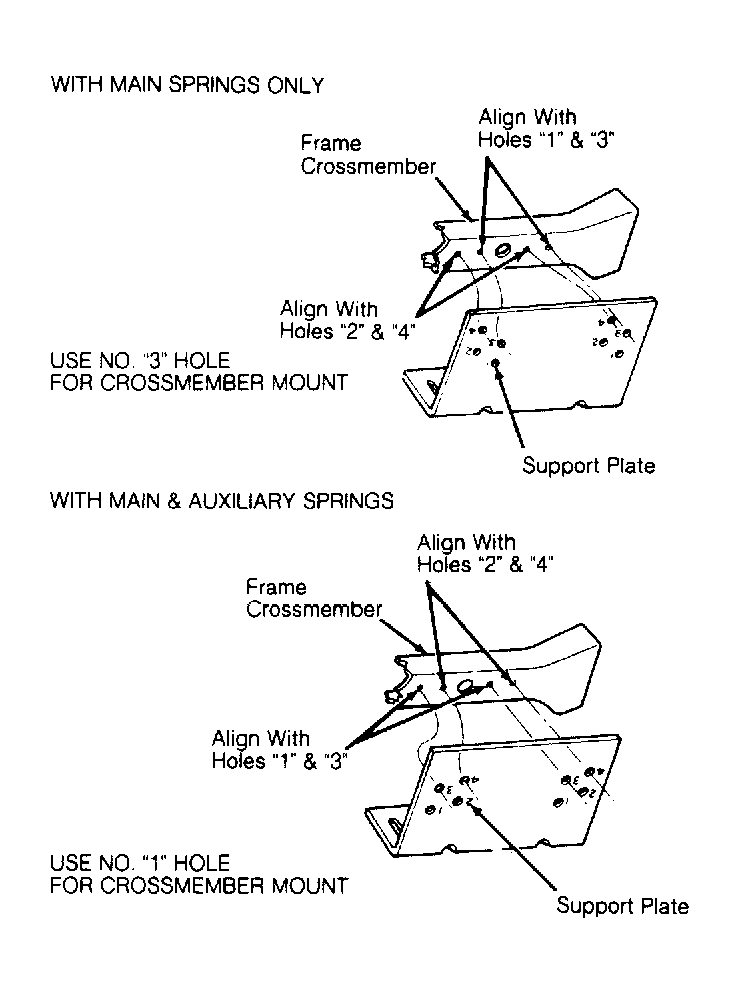

    Fig 1: Alignment Of 3-Piece Drive Shafts Support Plates
    G90E16513Courtesy of FORD MOTOR CO.
  2. On models with main spring only, use No. 3 hole to mount support plate to crossmember. On models with main spring and auxiliary spring, use No. 1 hole to mount support plate to crossmember. Ensure universal joint alignment is on the same plane. See Figure .
