Brake Caliper: Disassembly

  1. Remove caliper. Remove plug from inlet port (if equipped). Place a block of wood between caliper and cylinder. See Fig 1 . Apply low air pressure to brake hose inlet. Air pressure will force piston outward.
  2. Remove dust boot from caliper assembly. Remove and discard rubber piston seal from cylinder.

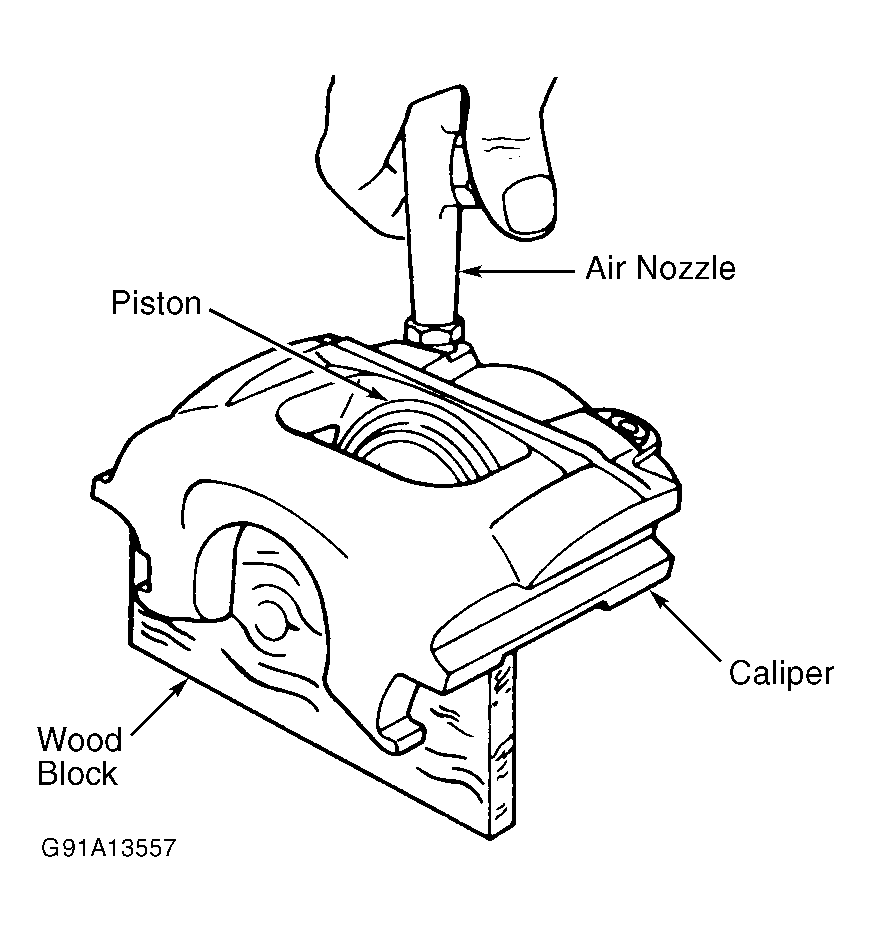

Fig 1: Removing Caliper Piston
G91A13557Courtesy of FORD MOTOR CO.
