Removal With Key (Bronco, "E" & "F" Series)

1. Disconnect negative battery cable. On non-tilt column vehicles, remove steering wheel and trim pad. On models with A/T, place gearshift in Park, or M/T in Neutral. Insert key and turn lock cylinder to "ON" position.
2. Insert a 1/8" diameter pin or punch in hole on outside of steering column casting, near hazard warning button on tilt models. See Fig 1 . Insert 1/8" diameter pin or punch in hole near base of lock cylinder on non-tilt models. See Fig 2 . On all models, depress pin and pull out on lock cylinder to remove.

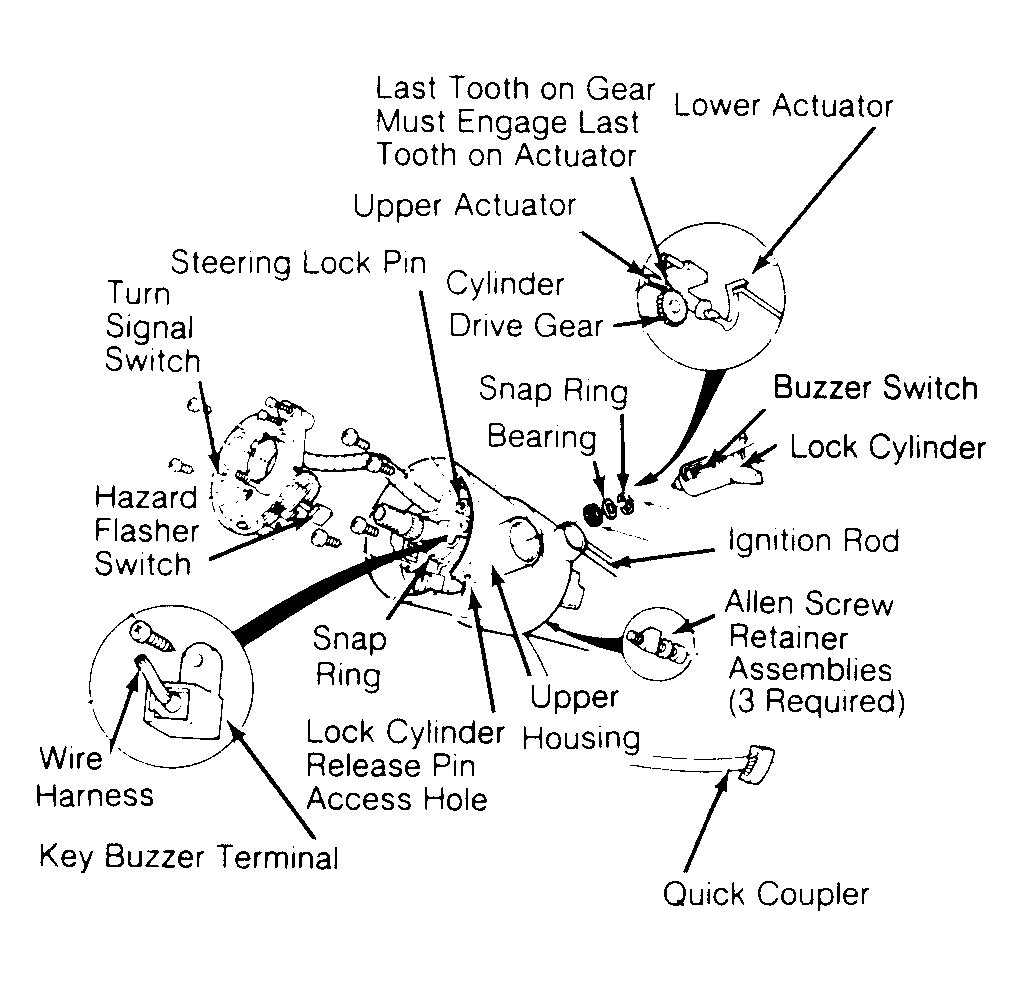

Fig 1: Exploded View of Tilt Steering Column & Switch Assemblies (Bronco, "E" & "F" Series)

Courtesy of FORD MOTOR CO.

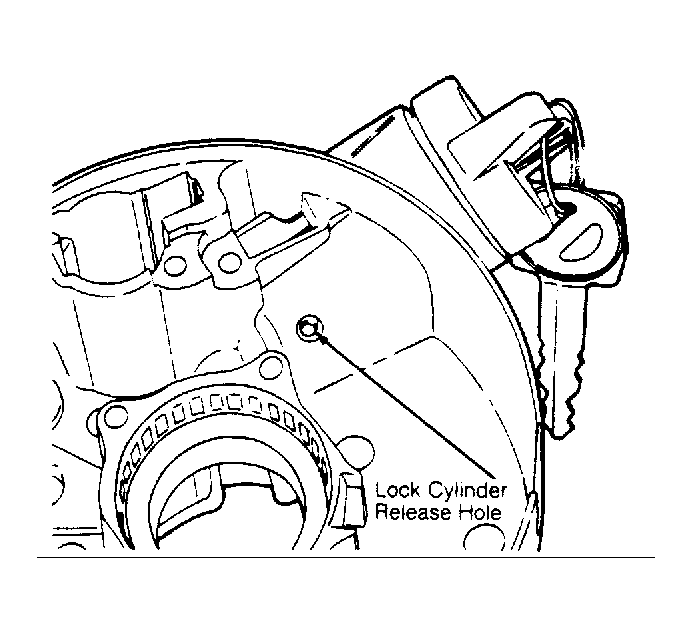

Fig 2: Ignition Lock Cylinder Release Pin - Non-Tilt (Bronco, "E" & "F" Series)

Courtesy of FORD MOTOR CO.
