"E" Series

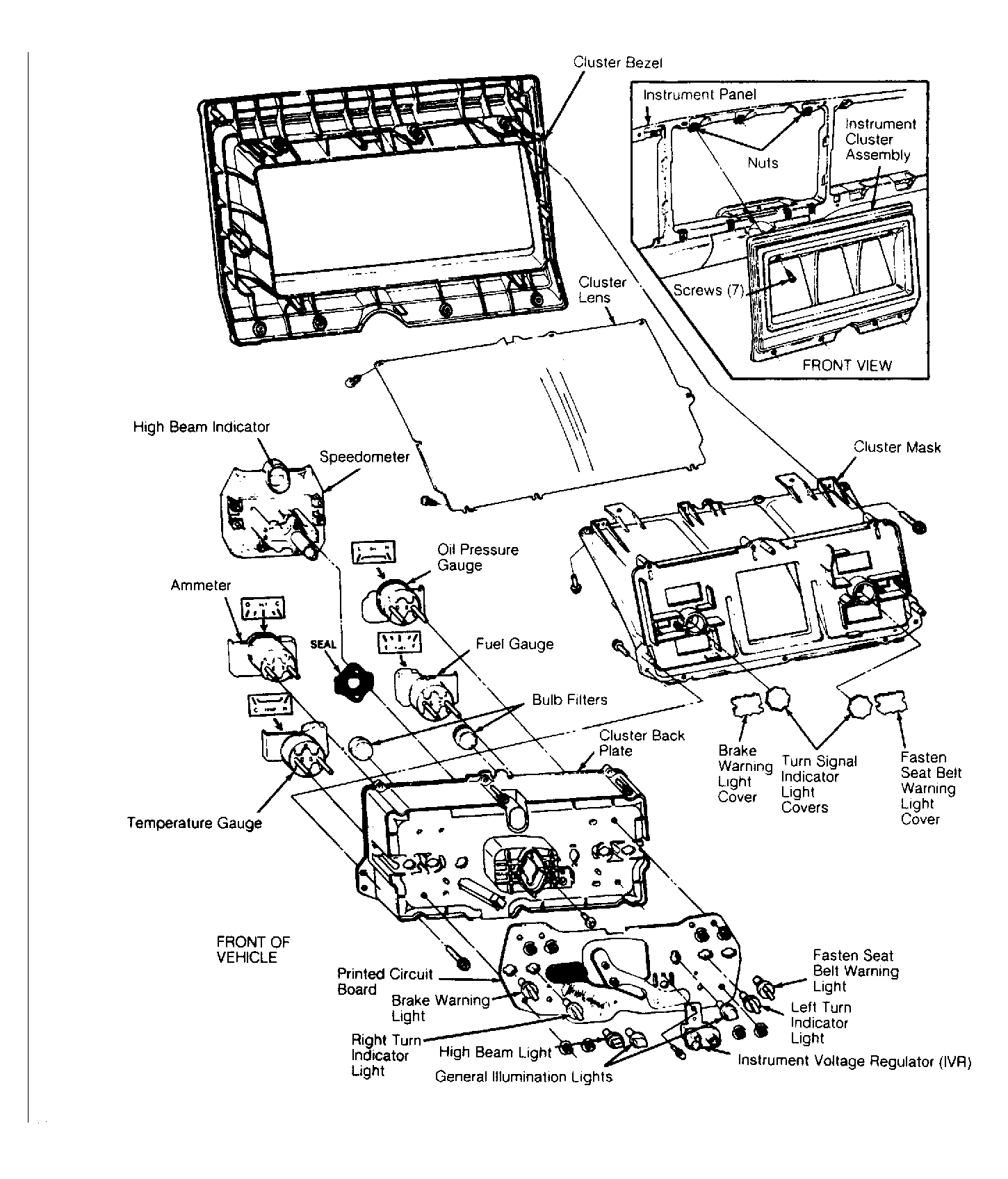

Disconnect negative battery cable. Remove 7 instrument cluster attaching screws. Position cluster away from panel to gain access speedometer cable. Disconnect speedometer cable and harness connector from printed circuit. Remove cluster assembly from panel. To install, reverse removal procedure. See Fig 1.
