Transfer Case Exploded Views

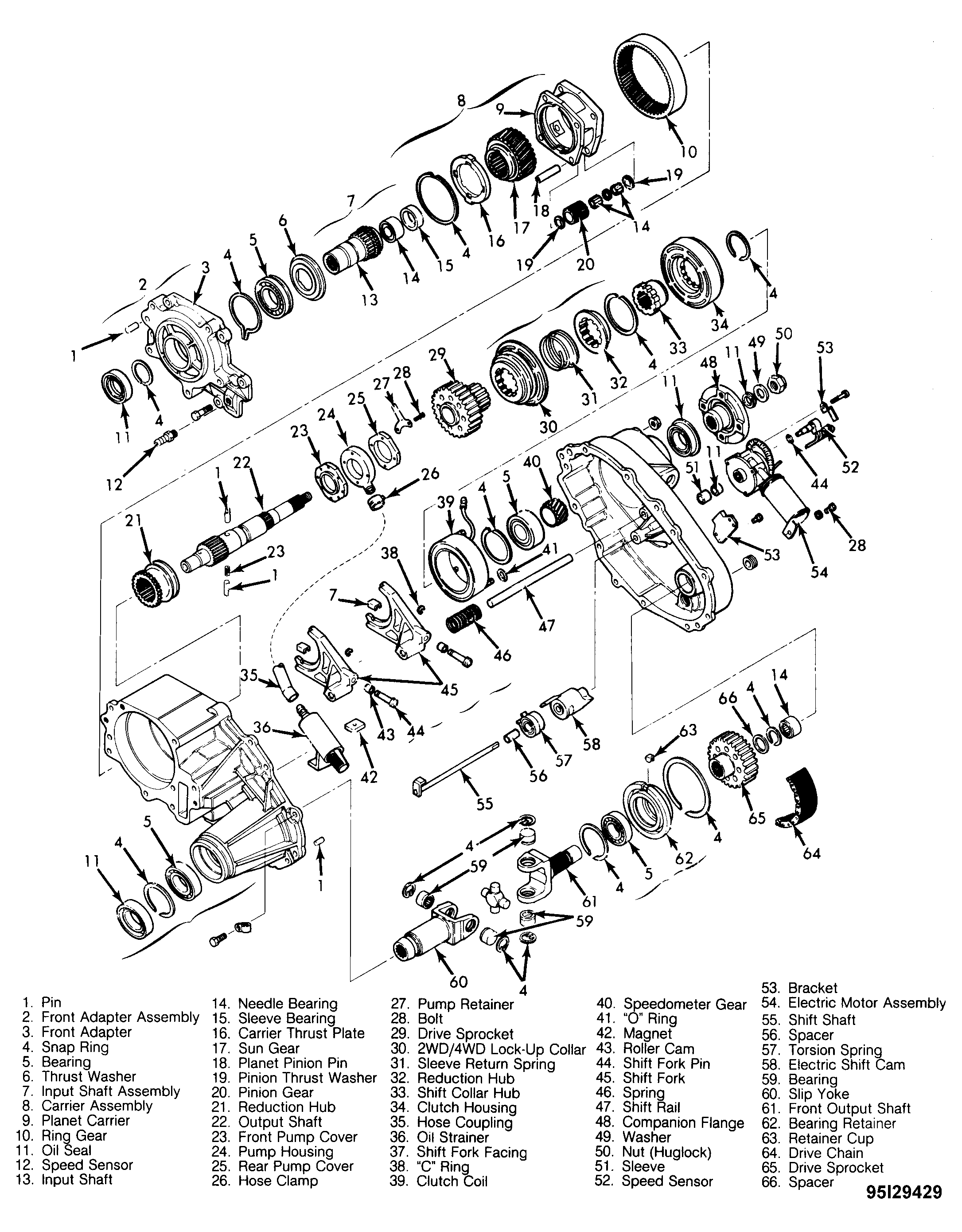

Fig 1: Borg-Warner 1350 Electronic Shift Transfer Case

Courtesy of FORD MOTOR CO.

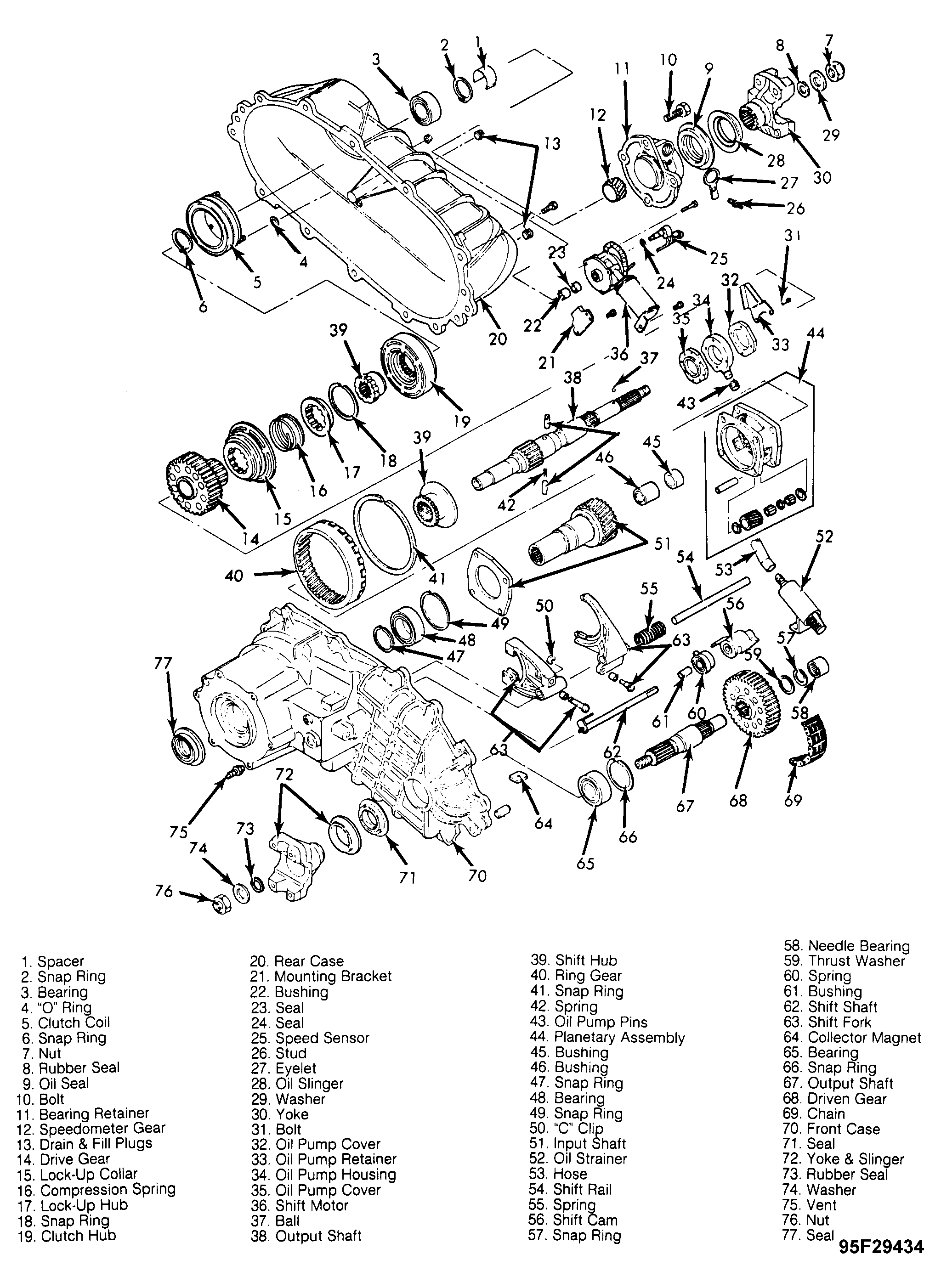

Fig 2: Borg-Warner 1350 Manual Shift Transfer Case

Courtesy of FORD MOTOR CO.

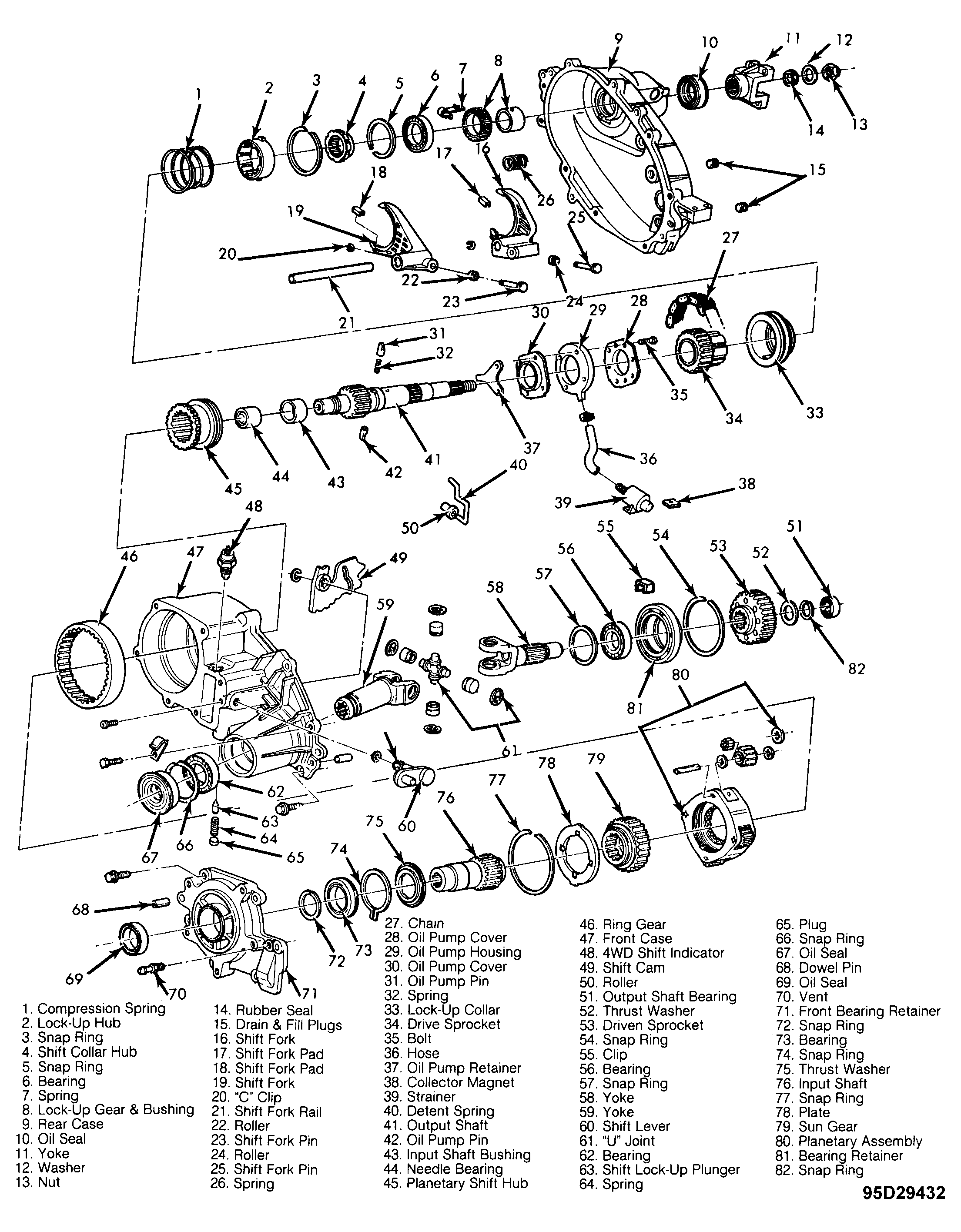

Fig 3: Borg-Warner 1356 Electronic Shift Transfer Case

Courtesy of FORD MOTOR CO.

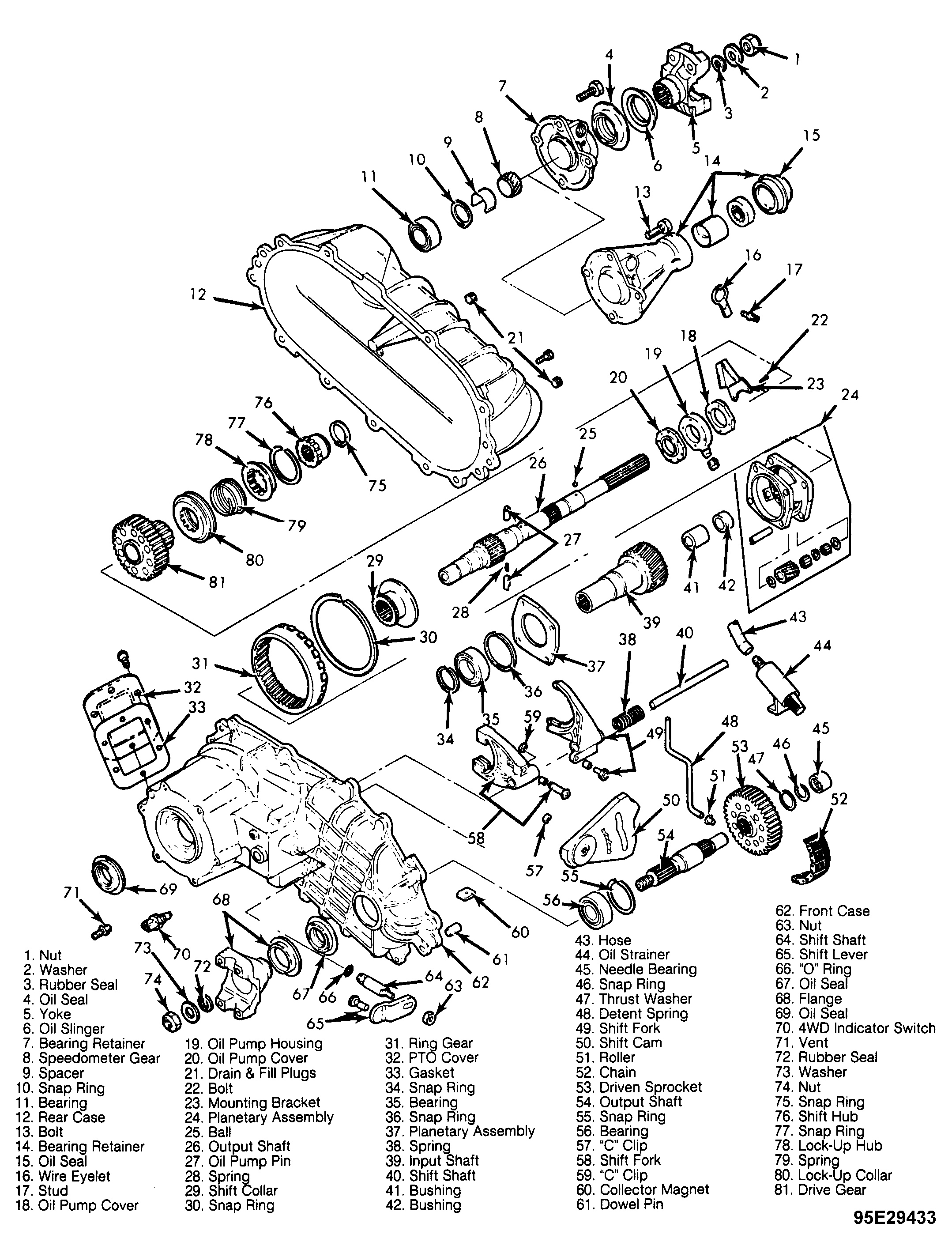

Fig 4: Borg-Warner 1356 Manual Shift Transfer Case

Courtesy of FORD MOTOR CO.
