Control Module Self-Test

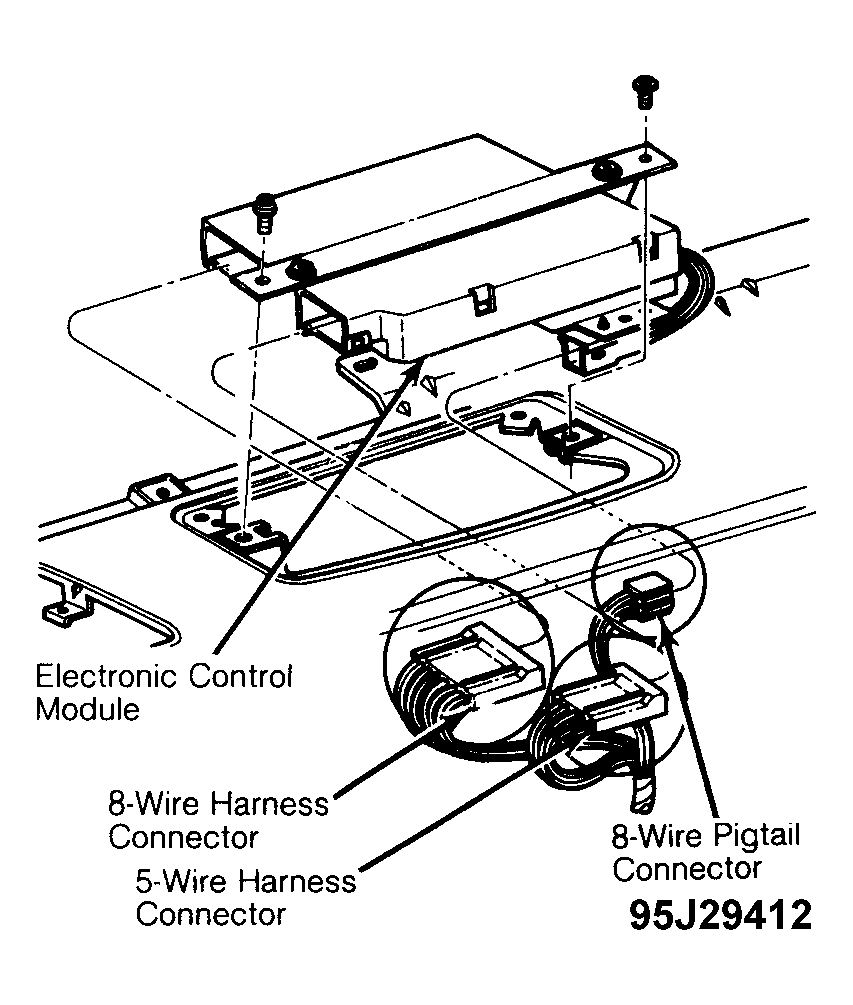

- To perform electronic control module self-test, remove the 5-wire connector and the 8-wire connector from the module. Turn ignition switch to "RUN" position. See Fig 1.
- Activate the self-test switch and note result. A flashing indicator lamp indicates control module is okay. A steady indicator light indicates control module is inoperative and must be replaced.
