5-Wire Connector Test
- Connect ohmmeter between terminals No. 1 and 2. Depress "2H-4H" switch in overhead console. Resistance should be less than 50 ohms while switch is depressed. See Fig 1.
- Connect ohmmeter between terminals No. 1 and 3. Depress "LOW RANGE" switch in overhead console. Resistance should be less than 50 ohms with switch depressed.

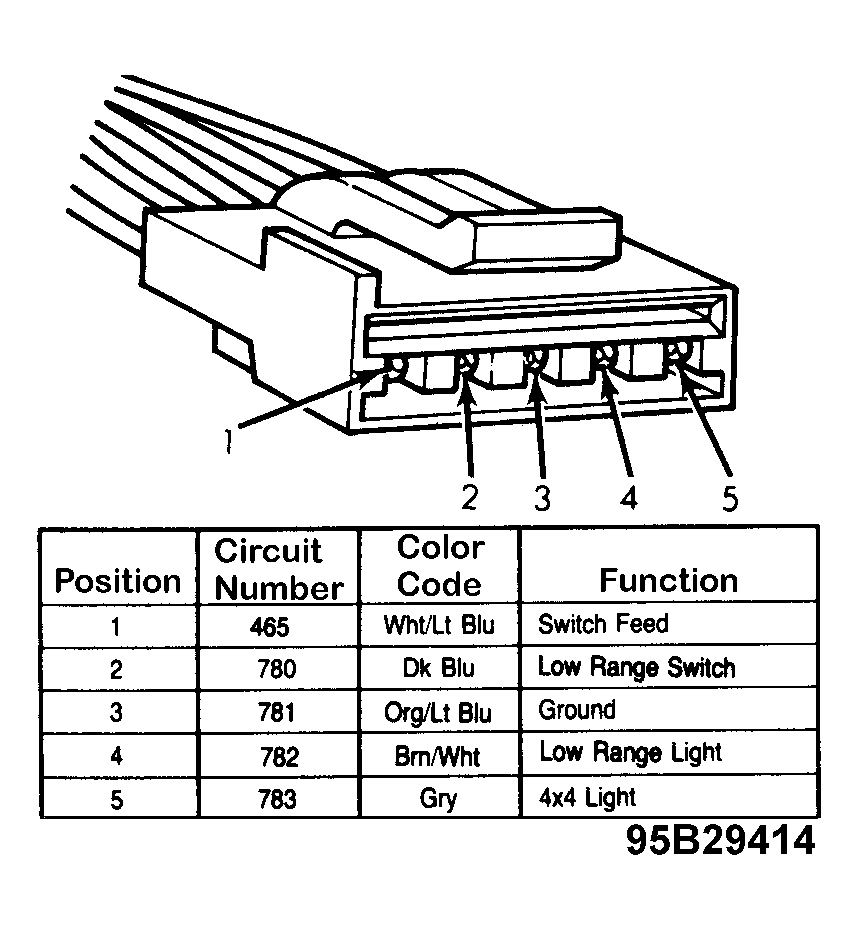

Courtesy of FORD MOTOR CO.
- Connect jumper wire between terminal No. 4 and ground. Turn ignition switch to "RUN" position. Light in overhead console low range bar should illuminate. Turn ignition off and remove jumper wire.
- Connect jumper wire between terminal No. 5 and ground. Turn ignition to "RUN" position. The "4 x 4" bar should illuminate on overhead console.
