Intake & Exhaust Manifolds: Inspection

Clean and check gasket mating surface. Intake and exhaust manifold warpage should not exceed .005" (.12 mm) overall. Cylinder head mating surface should not exceed .007" (.18 mm) warpage overall.

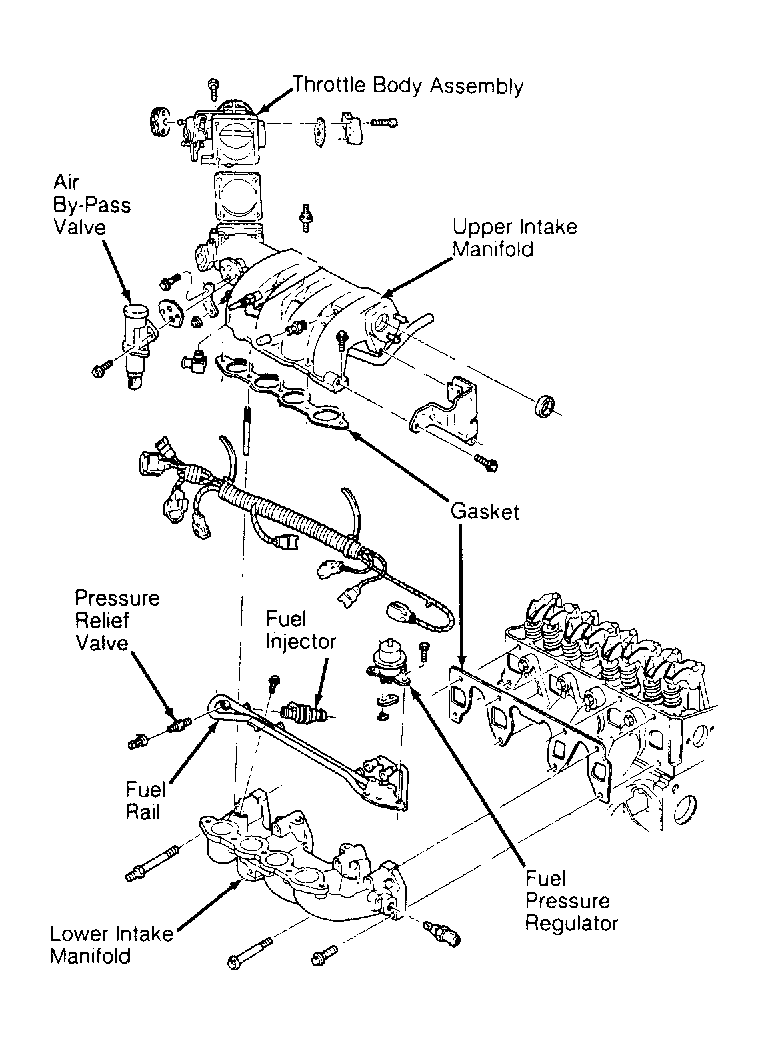

Fig 1: 2.3L HSC Intake Manifold Assembly
G106529Courtesy of FORD MOTOR CO.
