Brake Pressure Control Valve - Sable & TAURUS Sedan: Removal

1. Lift and support vehicle. Mark the 4 brake tubes and pressure control valve for installation reference. Disconnect the 4 brake tubes from pressure control valve assembly.
2. To lower suspension arm, remove valve bracket-to-lower suspension arm attaching bolt. Remove the 2 valve bracket-to-underbody retaining screws. Remove the pressure control valve assembly.

NOTE: The service replacement valve, identified by a red plastic gauge clip, must not be removed until installed on the vehicle.

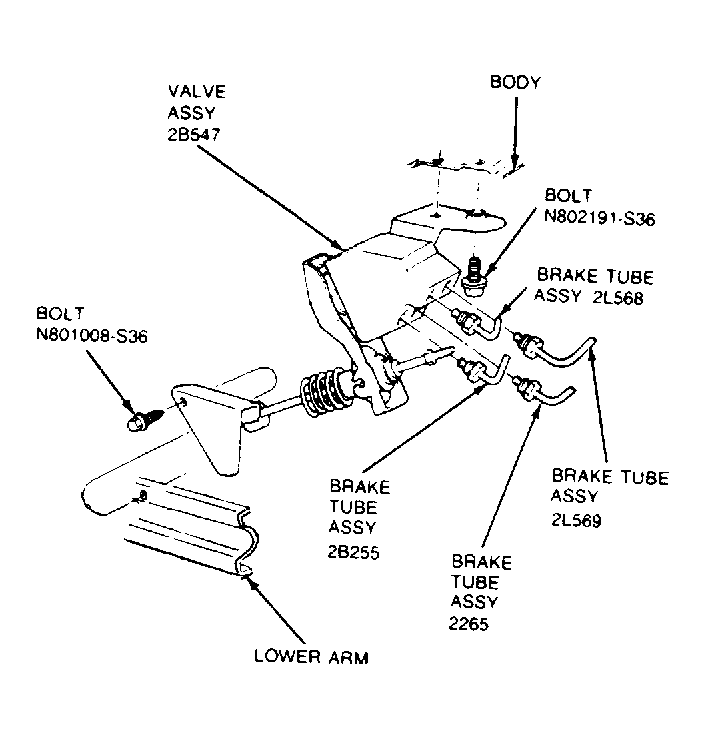

Fig 1: Installation of Brake Pressure Control Valve

Courtesy of FORD MOTOR CO.
