Tracer Wagon

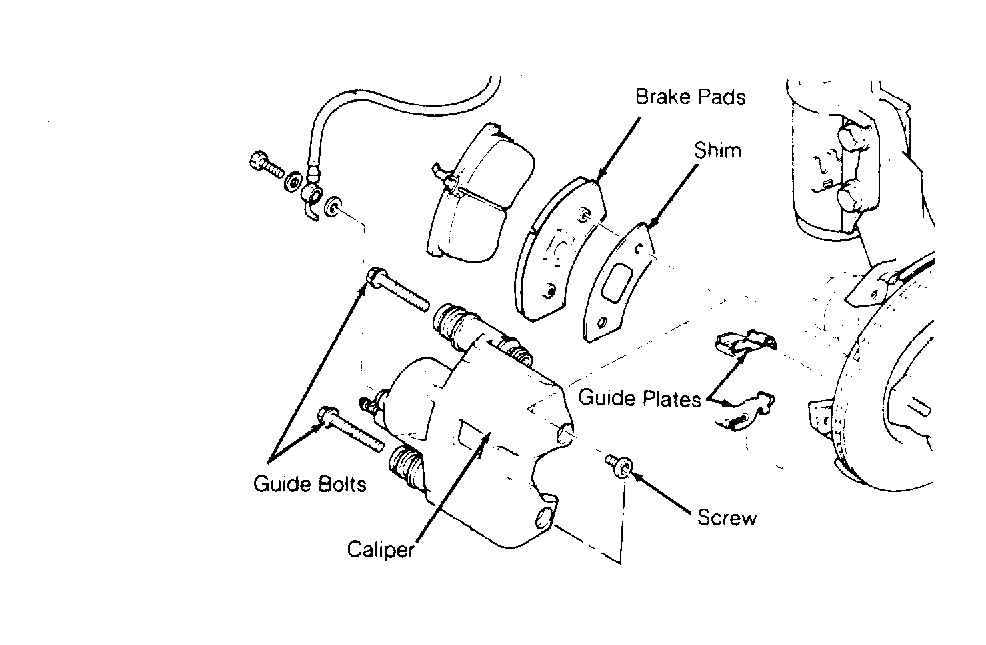

Raise and support vehicle. Remove wheels. Remove lower guide bolt. Remove screws retaining outer pad. See Fig 1 . Rotate caliper upward and wire out of way. Remove brake pads. Minimum pad lining thickness is .08" (2 mm). To install, reverse removal procedure.
