Tracer Sedan

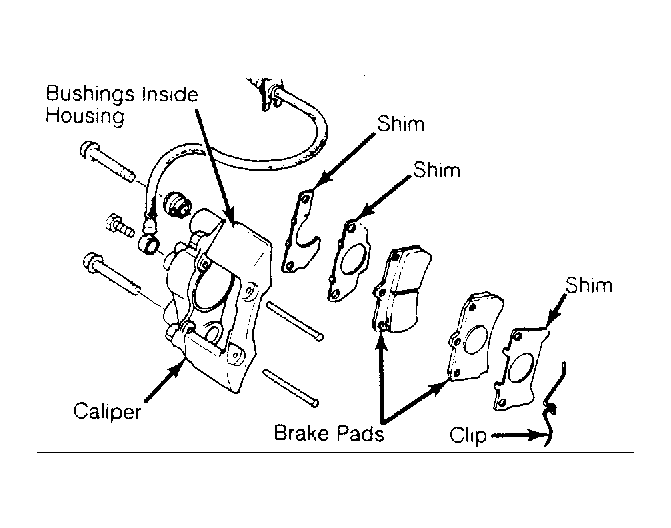

Raise and support front of vehicle. Remove wheels. Remove slide pins and clip. Remove brake pads. See Fig 1 . To install, reverse removal procedure. Minimum pad lining thickness is .08" (2 mm).
