Height Sensing Proportioning Valve: Installation

  1. Place the height sensing valve on its mounting bracket. Install the two (2) mounting bolts and tighten to 12-18 lbs.ft. (17-24 Nm). Install the flexible brake hose using new copper gaskets. Tighten the flow bolt to 28-34 lbs.-ft. (37-46 Nm).
  2. Install the brake line to the lower port on the valve and tighten securely. Position the linkage arm on the height sensing valve and tighten the retaining nut to 8-10 Ibs.ft. (11-14 Nm). Bleed the brakes. Check for proper brake operation.

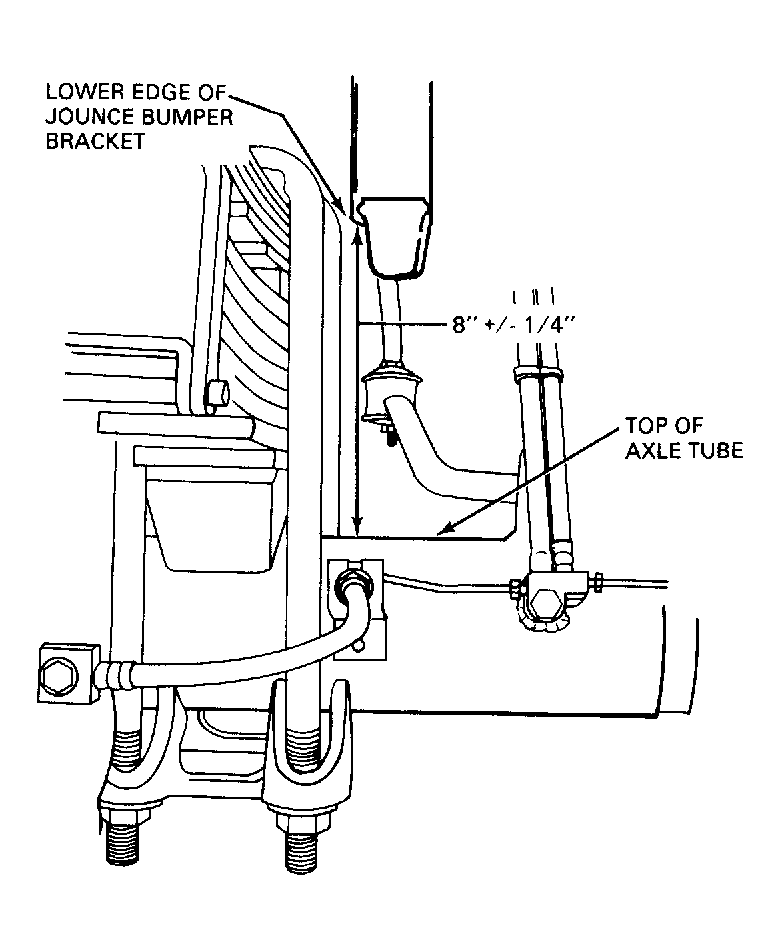

Fig 1: Jounce Bumper Bracket Clearance Measurement
G91H27513Courtesy of FORD MOTOR CO.

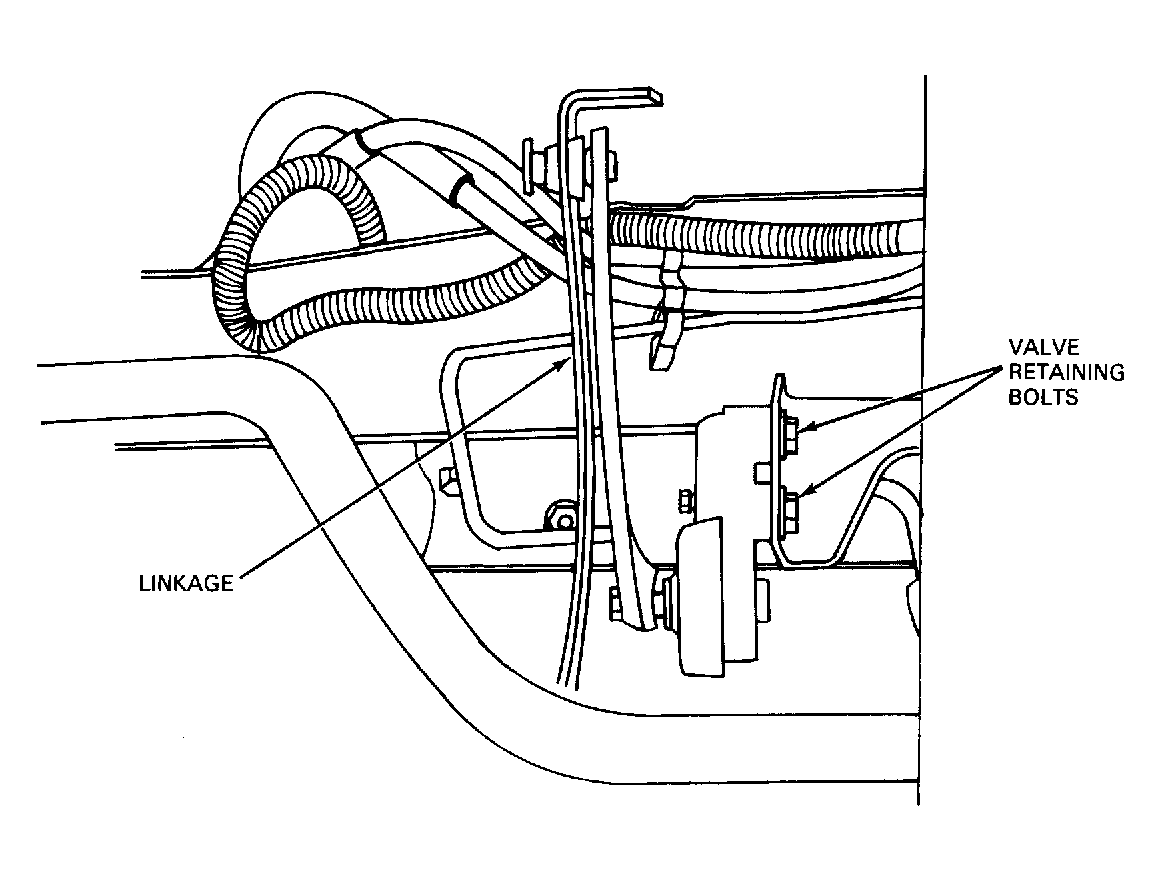

Fig 2: Valve Returning Bolt Locations
G91I27514Courtesy of FORD MOTOR CO.
