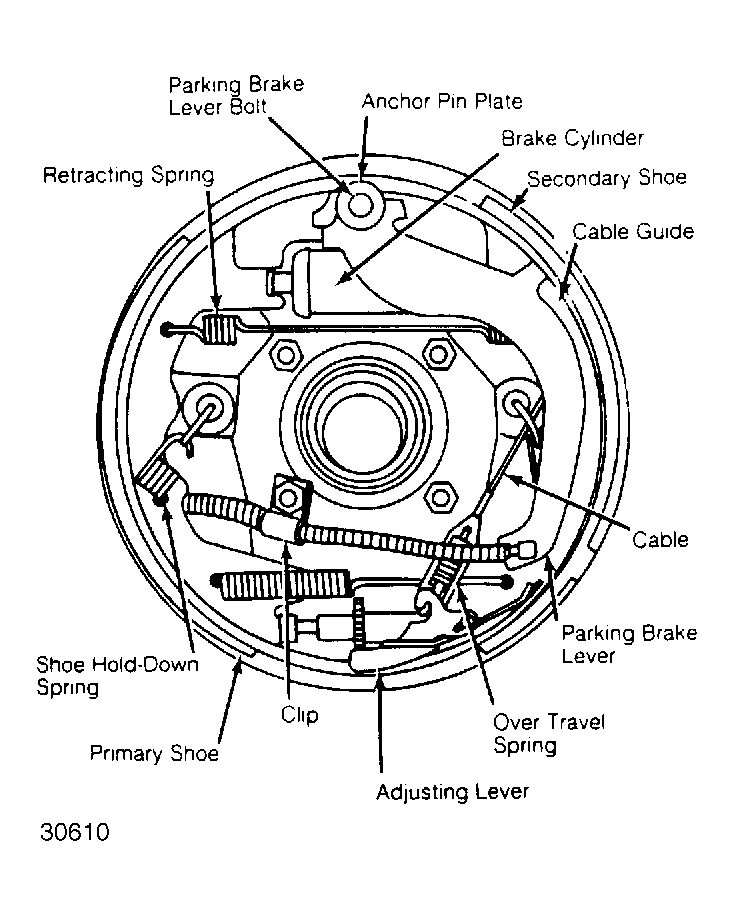

Brake Shoes: Installation
To install, reverse removal procedure. Before installing brake shoes, apply a thin coat of multipurpose grease to contact points of brake assembly.
To install, reverse removal procedure. Ensure adjusting cable is in groove of cable guide. Cable must not bind on anchor pin. Ensure adjuster screw has been mounted on correct side. If adjuster screw is mounted on wrong side, adjuster will operate incorrectly.
